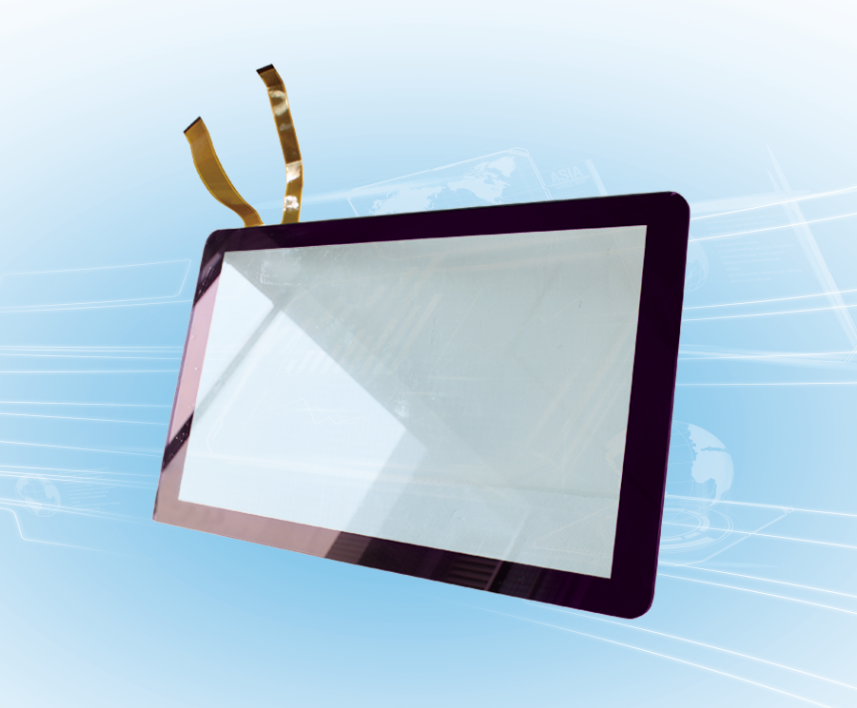

The Magic of Fingertip Interaction: How Capacitive Touchscreens Work

I. Core Principle: Electrostatic Field Sensing

The core of a capacitive touchscreen lies in the coupling effect between human body static electricity and the screen’s electric field. The screen surface is coated with a transparent conductive layer (typically indium tin oxide, ITO), which forms a uniform electrostatic field when energized. When a finger (a conductor) touches the screen, it forms a "micro-capacitor" with the conductive layer, causing changes in the electric field at the touch point. The screen controller accurately locates the touch coordinates by detecting differences in the electric field distribution, enabling command response.

II. Two Mainstream Technologies: Adapting to Different Scenarios

1. Surface Capacitive Technology: The conductive layer covers the entire screen surface, with electrodes placed around the edges. When a finger touches the screen, it absorbs part of the charge. The controller calculates the touch position based on changes in current between the electrodes. It is cost-effective and suitable for large-size screens (such as self-service terminals).
2. Projected Capacitive Technology: The conductive layer is etched into a dense matrix of tiny row and column electrodes, forming numerous sensing nodes. When a finger approaches, the node and the finger form a capacitor. The controller accurately captures multi-touch signals by scanning the matrix, offering faster response speed and higher precision. It is the mainstream choice for mobile phones and tablets.

III. Core Advantages: Why It Becomes Mainstream?

• No mechanical pressing required, enabling smoother operation and longer service life;
• Supports multi-touch, unlocking complex operations such as zooming and dragging;
• Excellent light transmittance ensures clear display effects, compatible with high-definition screens;
• Fast response speed (millisecond level) with low touch latency.
