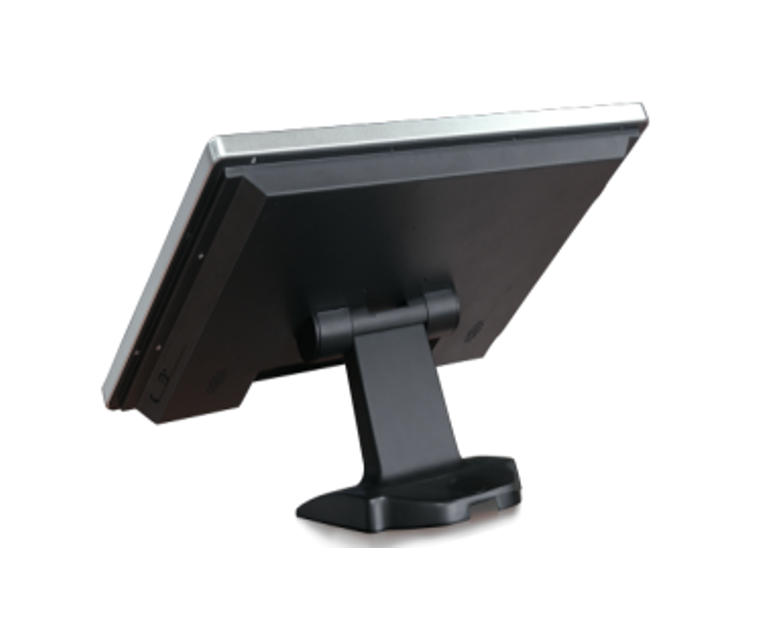

MY series monitors adopt metal profile edge wrapping and flat design, stylish and beautiful, equipped with high-definition display monitoring panel, smooth corner design, user-friendly safety care, high-strength body with multi-point smooth capacitive touch panel, waterproof, high wear resistance, stable performance with a variety of installation methods.
✦ Controller:
✦ Features:
* 19”LED-backlit panel with long life
* Wide operating temperature 0°C~50°C
* General brightness 250 cd/m2
* True Plane - Fashion Style
* Wide-view view
* Ultra-narrow ultra-thin profile - metal housing, injection molding
* Multi-point capacitive touch touch panel with USB interface
* Rich signal interface: VGA, DVI (HDMI optional)
* Versatile installation method for desktop and VESA installations
* Anti-reflective surface treatment for sun readable enhancement (optional)
* RS-232 port for remote control (optional)
| Feature items | Specification | ||
|---|---|---|---|
| Model | MY195 | ||
| Size | 19 inch | ||
| Overall Dimension | |||
| Packing Size | |||
| Resolution | 1280 x 1024 | ||
| Color | 16.7M | ||
| Contrast | 1000:1 | ||
| Brightness | 250 cd/m² | ||
| Response time | 3.6ms | ||
| Light Life LED | 30K/H | ||
| Perspective | 85/85/80/80 | ||
| Gross/Quiet Weight | 7KG/5KG | ||
| Cover thickness | 1.8mm | ||
| Light transmission | ≥90% | ||
| Surface strength | 3H | ||
| Touch life | ≥10000000 times | ||
| Operating humidity | 5-95% 40°C Non-condensation | ||
| Operating temperature | 0°C~50°C | ||
| Storage temperature | -20°C~60°C | ||
| Power | 17W | ||
| Power input | 12V DC ±5% 5.5x2.1mm | ||
| Installation method | VESA、Desktop | ||
| Control Board | Menu、UP、Down、Auto-Adjust、On/Off Power | ||
| Menu features | Brightness、Contrast、Screen Settings、Color Temperature、Language OSD Settings、VGA/DVI、Return、Auto-Adjust | ||
| Signal port | VGA x 1、DVI-D x 1 (HDMI x 1 Optional)、Audio x 1、12V DC、USB x 1（Touch only） | ||
