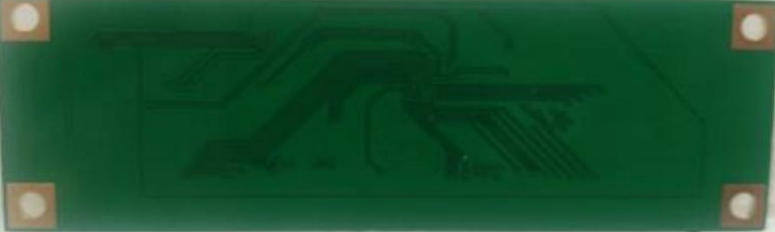

TK-UI02 capacitive touch control board has 98 TRX channels, supports Win8.1/Win10 certification for screens below 15.6 inches, and max. 21.5-inch industrial control screens.Based on Ilitek ILI2510 single capacitive control chip, ILI2510 integrates a 32-bit MCU, high-speed CDC module, and built-in boost module with auto-calibration.ILI2510P.C3.P3.V1 supports TP stacks including GG, GFF, and is mass-produced for AIO, POS, industrial equipment, etc.It complies with RoHS and EMC standards.
✦ S1 Connector:
| Test Item | Specification | Performance |
|---|---|---|
| EMI | CISPR 22, 30MHz~1GHz | Under -4dB |
| ESD | IEC 61000-4-2, Level 4 Air: +/-15kV; Contact: +/-8kV | Class B |
| RS | IEC 61000-4-3, Level 4: 30V/m | Class A |
| EFT | IEC 61000-4-4, Level 4 AC power line: 4kV; I/O port: 2kV | Class A |
| CS | IEC 61000-4-6, Level 3: 10Vrms | Class A |
Control Board Parameters:
✦ Basic Information:
| Item | Characteristics |
|---|---|
| Outline Dimensions | W:30mm, L:94mm |
| Supported Capacitive Panel Size | Recommended:13.3”~21.5” |
| Drive Channels (TX) | 36 |
| Sense Channels (RX) | 60 |
| Communication Interface | USB:2.0 Full Speed, IIC, RS232 |
| Operating Temperature | -40~85℃ |
| Storage Temperature | -40~150℃ |
| Max. Coordinate Range | 16384 X 9600 |
| Power Consumption | Active (10-point touch): Typ.100mA@5V USB (21.5” screen) |

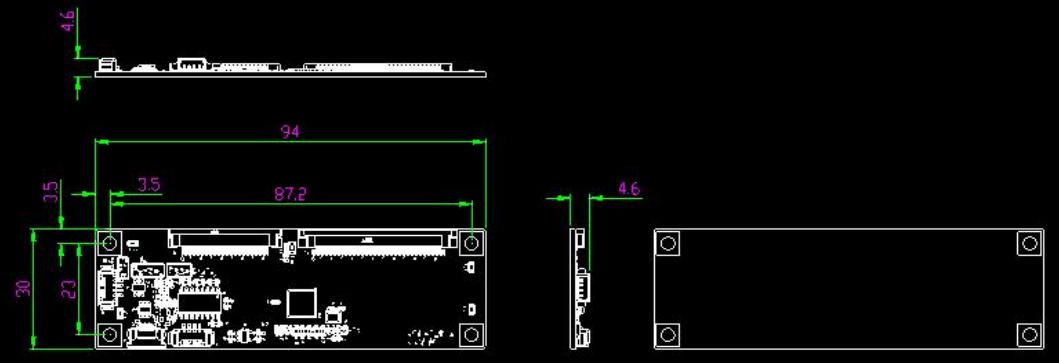

✦ Outline Dimensions:

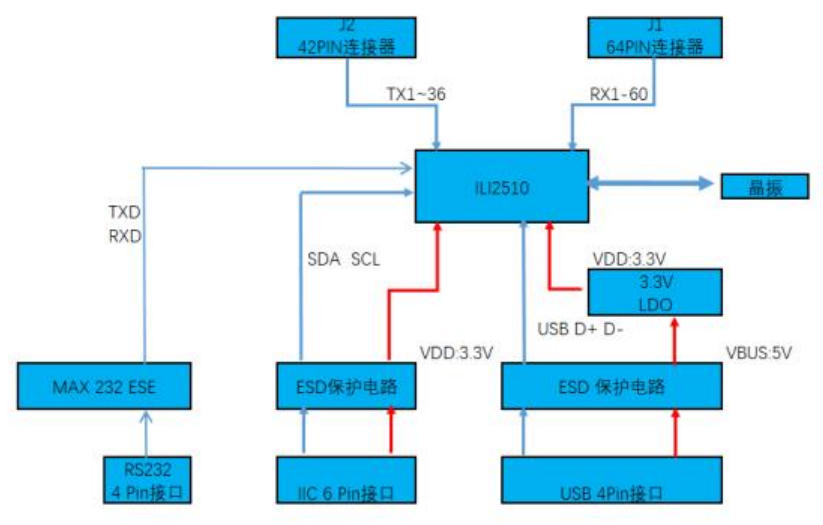

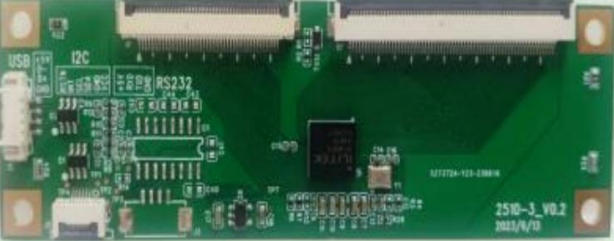

✦ Module Introduction:
TK-UI02 includes ILI2510, 5V-to-3.3V LDO, 12MHz crystal, and ESD protection. It supports USB2.0, IIC, and ICE debug interfaces.96 channels are fixed as RX60*TX36 on two 51PIN connectors (J1/J2), separated by ESD_DUMMY.42PIN Connector, 64PIN Connector
Connector Pin Definitions:

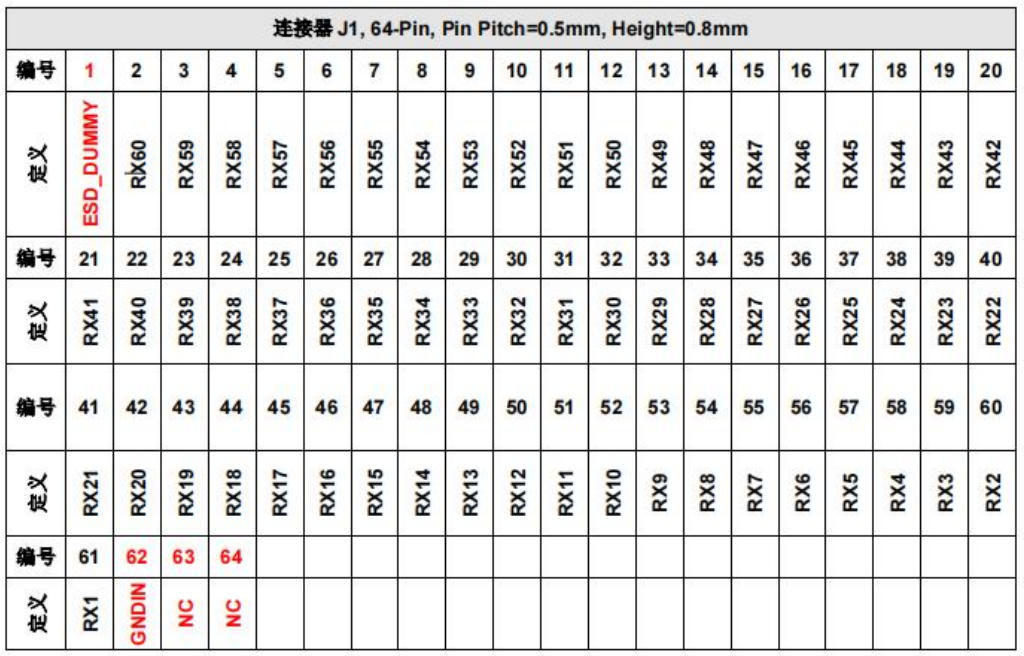

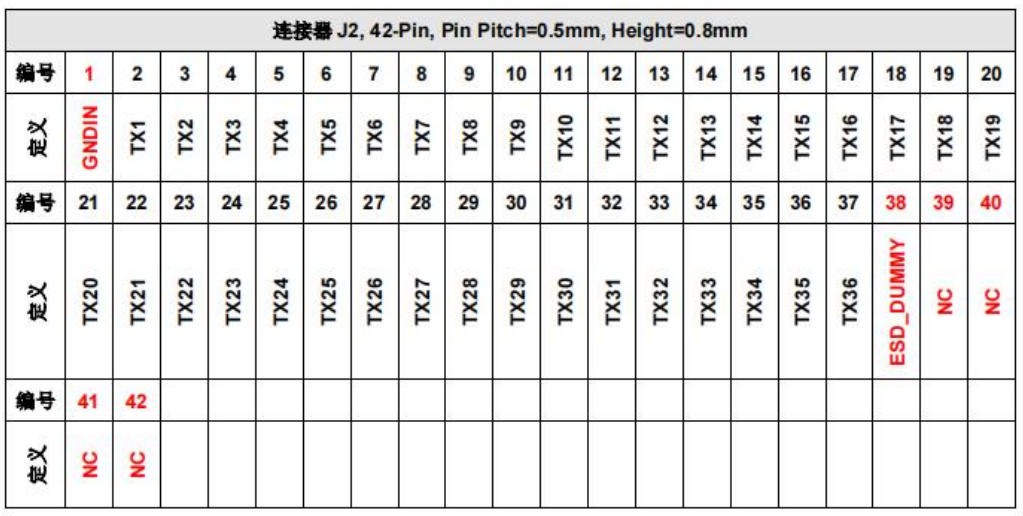

✦ FPC Connector Pin Definition:
✦ USB Interface Pin Definition:

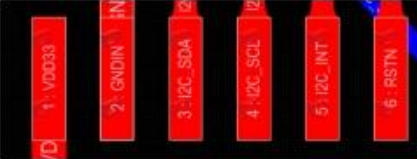

✦ IIC Interface Pin Definition:

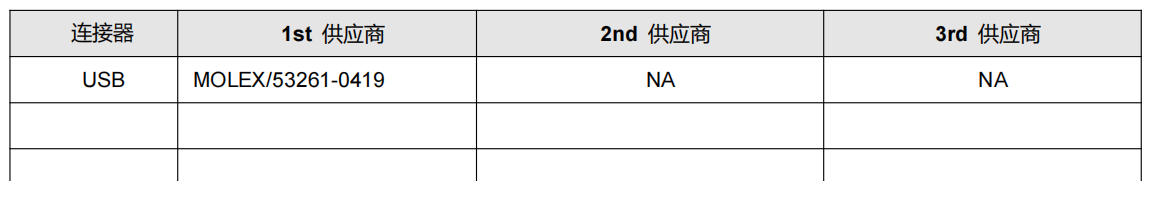

✦ Connector Part Numbers:
Connection to Touch Panel Module:

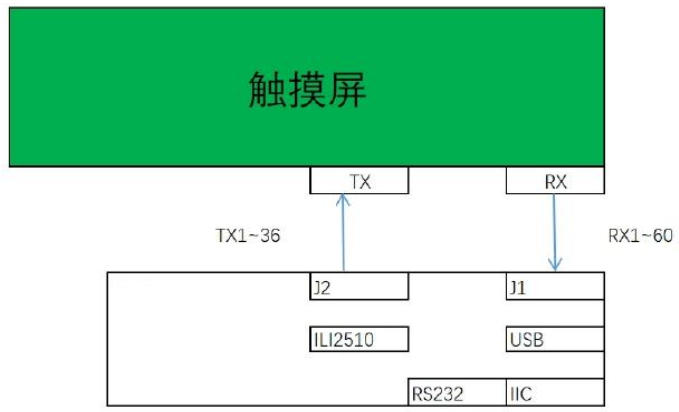

✦ Standard Connection:
✦ Anti-Short Circuit Precautions:
(1) Ensure the FPC cable is securely connected and locked before power-on.
(2) Disconnect power before plugging/unplugging the FPC cable.

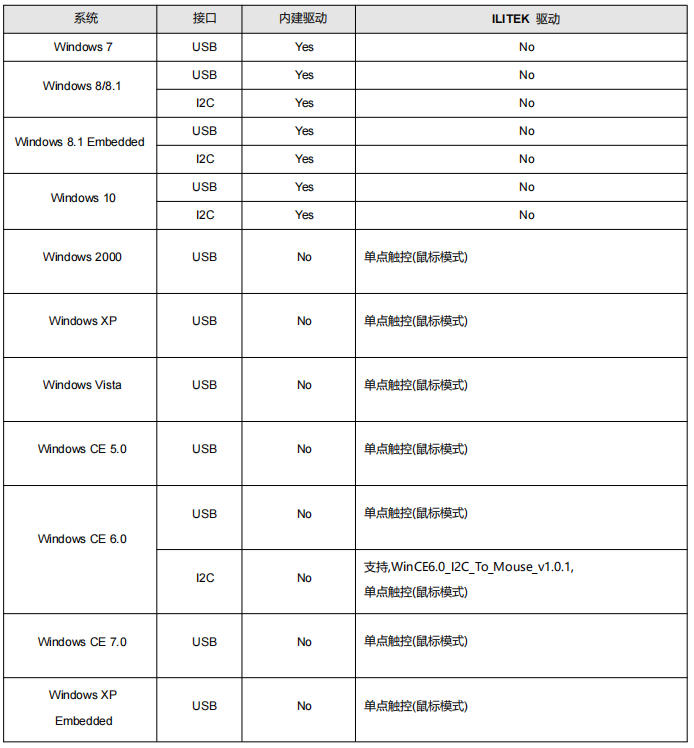

✦ Windows Series:

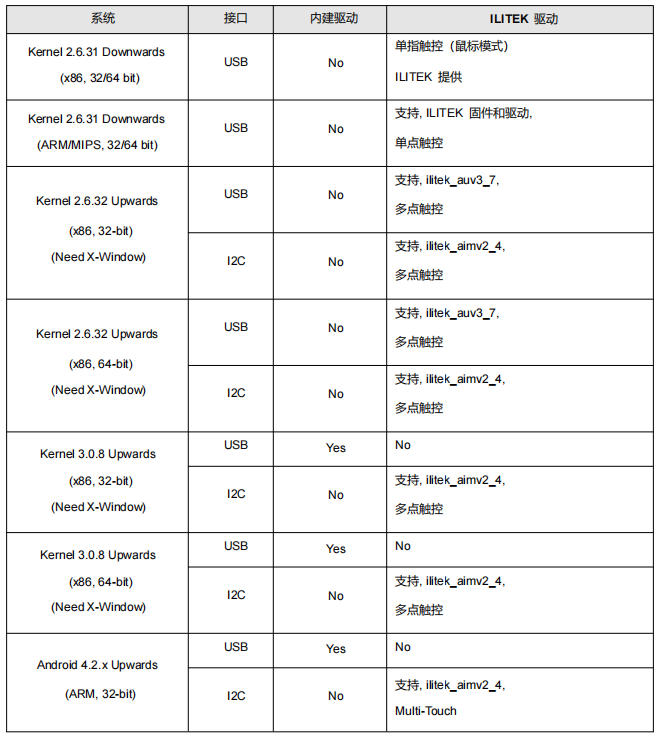

✦ Linux & Android Series:

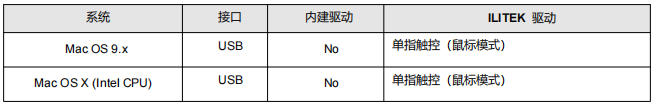

✦ Mac Series:
Electrical Characteristics:
✦ Absolute Maximum Ratings:
Stresses beyond these may cause permanent damage; long-term operation at max ratings affects reliability.

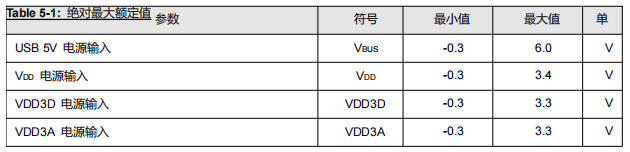

Table 5-1 :Absolute Maximum Ratings

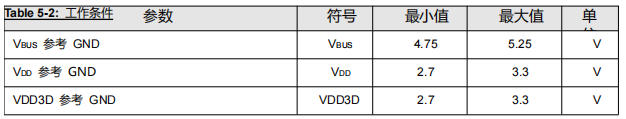

✦ Recommended Operating Conditions:

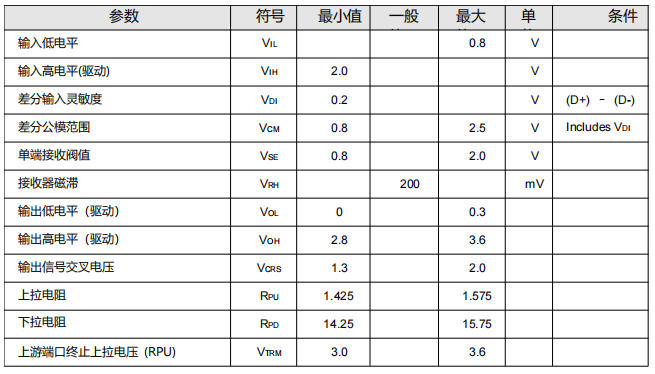

DC Characteristics:
✦ Input Power Supply:
