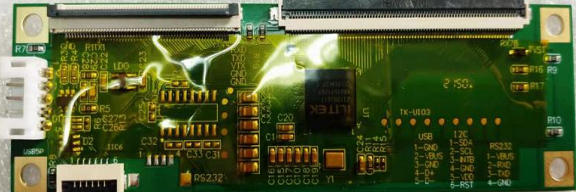

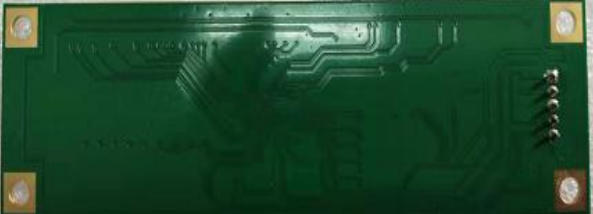

TK-UI03 is a touch screen control PCBA using Ilitek capacitive touch chip ILI2312. It is designed to drive 44 channels and sense 78 channels, supporting mainstream capacitive touch structures such as GG/GFF/OGS/G1F/GF2. It is widely used in All-In-One PCs, ATMs, advertising machines, POS, HMI, industrial touch screens, etc.TK-UI03 PCBA complies with the latest RoHS environmental requirements and EMC test standards.
✦ S1 Connector:
| Test Item | Specification | Performance |
|---|---|---|
| EMI | CISPR 22, 30MHz~1GHz | Under -4dB |
| ESD | IEC 61000-4-2, Level 4 Air: +/-15kV; Contact: +/-8kV | Class B |
| RS | IEC 61000-4-3, Level 3: 10V/m | Class A |
| EFT | IEC 61000-4-4, Level 4 AC power line: 4kV; I/O port: 2kV | Class A |
| CS | IEC 61000-4-6, Level 3: 10Vrms | Class A |
PCBA Specifications:
✦ Description:
| Item | Characteristics |
|---|---|
| PCB Dimensions | L:100mm, W:30mm, H:4.6mm |
| Max. Supported TP Size | 32" |
| Drive Channels (TX) | 44 channels |
| Sense Channels (RX) | 78 channels |
| Communication Interface | USB: full speed (12Mbps); IIC:400kHz |
| Input Voltage | USB:5V +/-10%; IIC:3.3V |
| Operating Temperature | -20℃~60℃, RH 20%~90% |
| Storage Temperature | 5℃~40℃, RH 20%~70% |
| Supported Resolution | X:16384, Y:9600 |
| Max. Operating Current | Active Mode:100mA (max) |

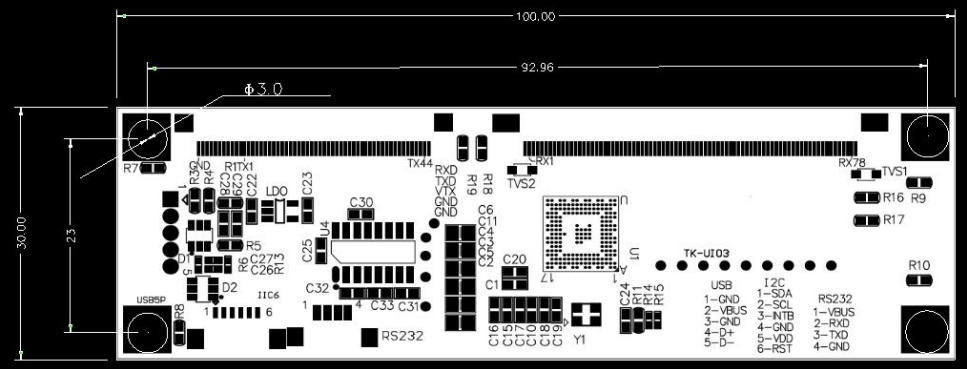

✦ PCBA Dimensions:

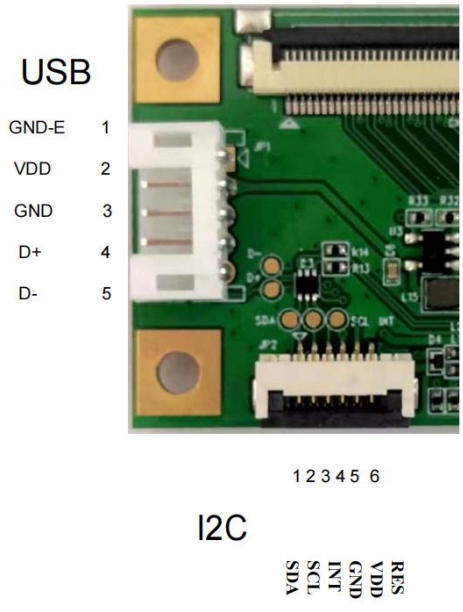

✦ USB & IIC Connector Pin Definition:
