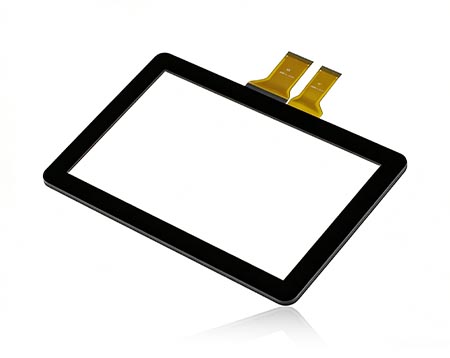

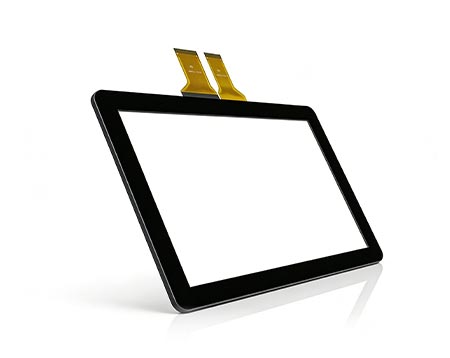

Product Overview

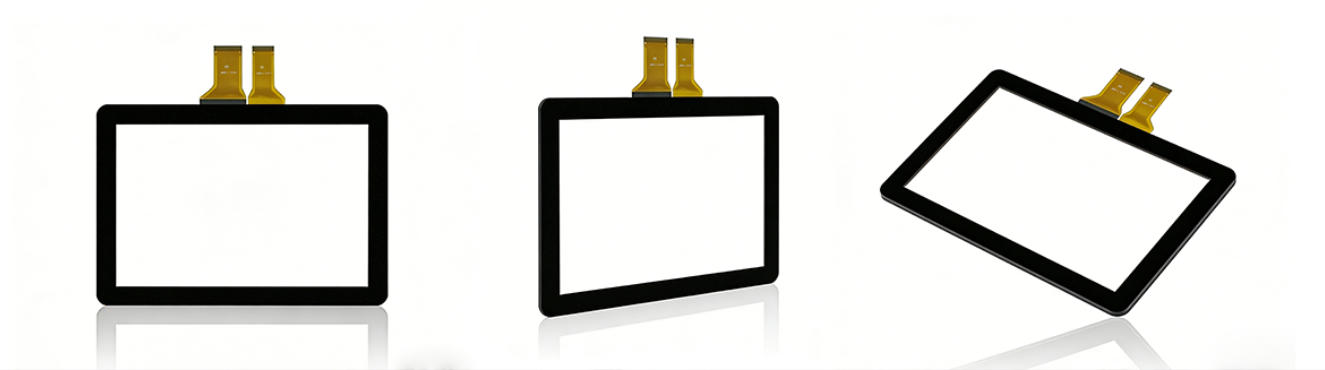

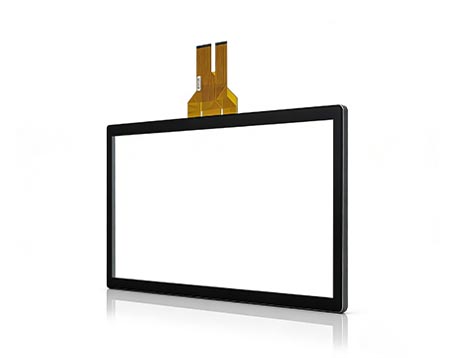

This is a 10.1-inch projected capacitive touch screen that realizes precise touch control through human-body capacitive sensing. It supports up to 10-point multi-touch and adopts a stable Glass/Glass double-layer structure. Featuring high sensitivity, high reliability and wide temperature adaptability, it serves as a core interactive component for industrial control, automotive terminals, commercial displays, smart devices and other scenarios, designed for stable mass production delivery.
Product Advantages
·10-point precise multi-touch: Native 10-point touch support, report rate >100Hz, line drawing accuracy ±1.5mm/10mm, touch point accuracy ±1.5mm, no delay and accurate positioning.
·High-definition optical display: Transmittance of 85±5% at 550nm, haze ≤3%, transparent picture and realistic color reproduction.
·Strong scratch resistance: Surface pencil hardness ≥6H, anti-scratch and wear-resistant, no obvious marks after long-term use.
Stable wide-temperature operation: Operating temperature -20℃~+70℃, storage temperature -30℃~+80℃, stable touch ·performance in high and low temperature environments.
Strong anti-interference: Excellent anti-static and anti-·electromagnetic interference performance with proper grounding, no drift or malfunction.
·Mass-production reliability: Passes strict reliability tests including ball drop, thermal shock and constant temperature & humidity, ensuring high batch consistency.

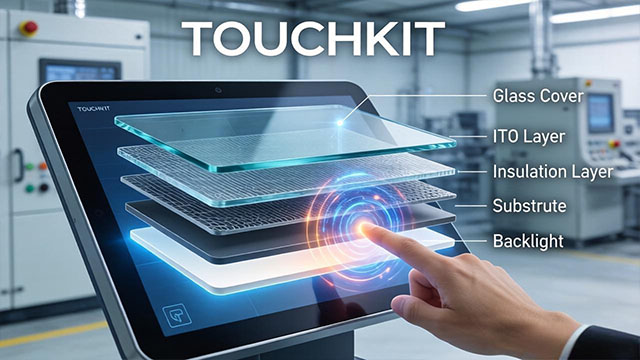

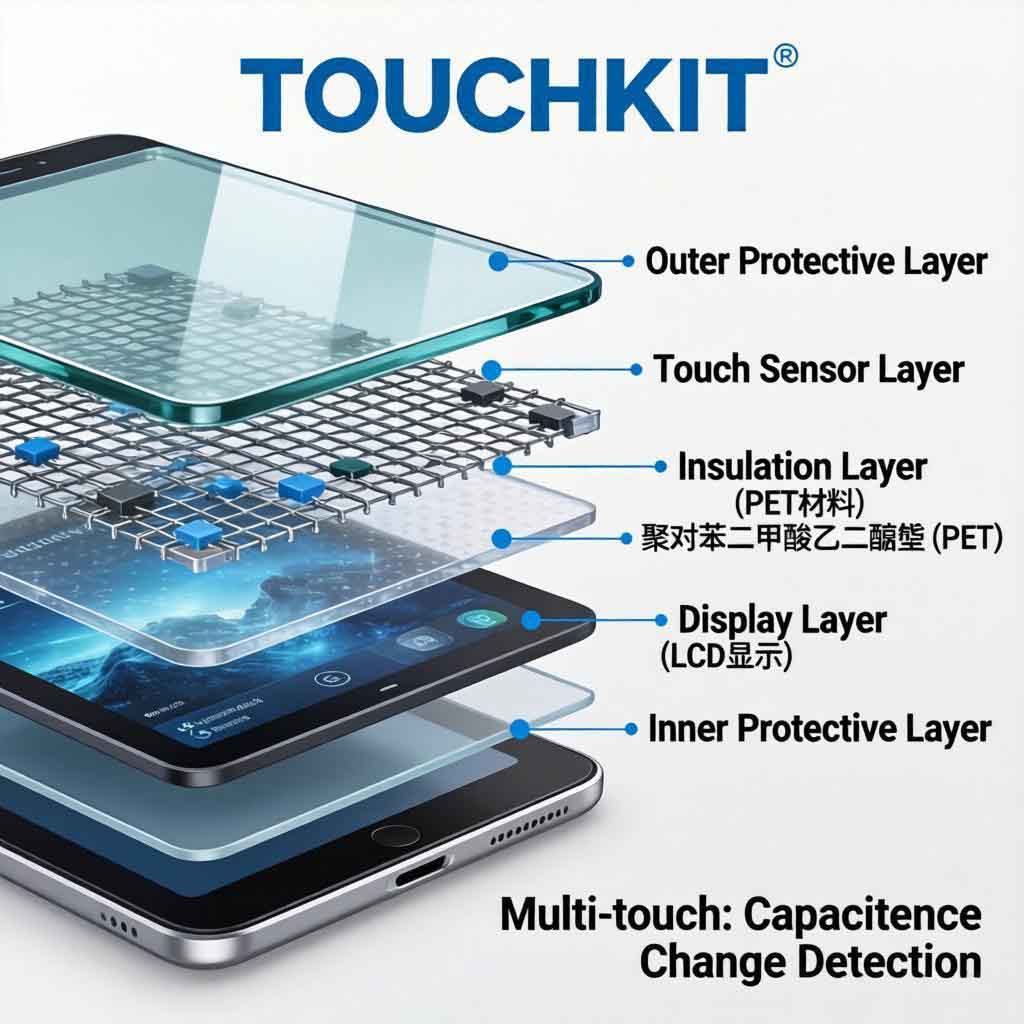

Product Structure
·Protective top layer: 1.1mm strengthened cover glass with precision R-corner and C-chamfer processing, hardness up to 6H.
·Sensing layer: ITO conductive sensing array, accurately captures capacitive signals and supports synchronous 10-finger detection.

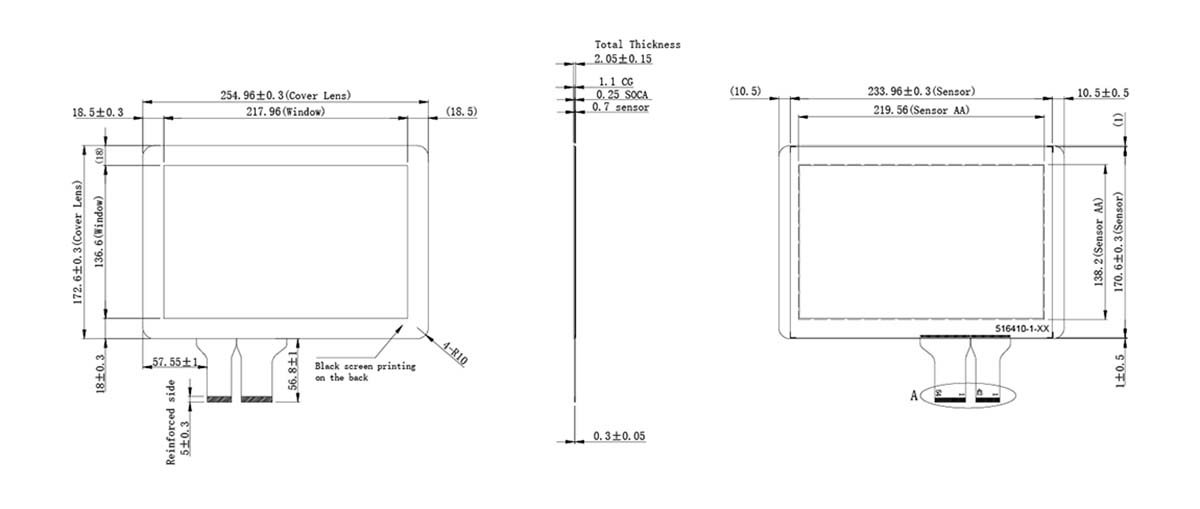

·Substrate layer: 0.7mm sensor glass substrate; Glass/Glass double-layer structure with total thickness 2.05±0.15mm.
·Control circuit: Touch driver + FPC flexible circuit; FPC thickness 0.3±0.05mm, peeling strength ≥500gf/cm.
·Optical bonding layer: Bonded with double-sided tape/VHB, stably integrated with TFT-LCD modules, isolating moisture and dust.
Product Features
·Touch performance: Supports finger/capacitive stylus input, report rate >100Hz, smooth response.
·Size & thickness: Standard 10.1-inch size, total thickness 2.05±0.15mm, slim and compact.
·Environmental adaptability: Wide temperature and humidity range, suitable for harsh industrial and automotive environments.
·Mechanical reliability: 64g steel ball drop from 60cm without damage, warpage ≤ length × 0.3%, stable structure.
·Strict appearance quality: Inspected under Class 10,000 cleanroom, strict control of linear, dot and printing defects, high appearance consistency.
·Environmental compliance: RoHS compliant, 1-year warranty under normal use, safe and stable.
Product Customization
·Size: Based on 10.1-inch, customizable from 7 to 21 inches on the same platform.
·Surface treatment: Optional AG anti-glare, AF anti-fingerprint, AR anti-reflection, privacy filter and other enhanced coatings.
·Structure customization: Border printing, LOGO customization, R/C corner dimension adjustment, mounting structure adaptation.
·Function enhancement: Wide-temperature upgrade, waterproof sealing, anti-interference reinforcement, glove/wet-hand touch support.
·Interface & electrical: FPC routing, connector type and driver scheme customizable on demand.
·Appearance silkscreen: IR holes and border color matched precisely per drawing and PANTONE code.
Applications
·Industrial control: Industrial HMI, all-in-one PCs, embedded control terminals.
·Automotive electronics: Car center console, navigation, infotainment displays.
·Commercial terminals: Self-service kiosks, advertising players, POS machines, intelligent lockers.
·Smart devices: Smart home control panels, medical monitors, tablet terminals, industrial displays.
·Mobile devices: Portable industrial tablets, outdoor smart terminals, automotive display modules.
Technical Parameters
| Item |
Specification |
| Screen Size |
10.1 inch |
| Touch Type |
Projected Capacitive |
| Touch Points |
10 points |
| Interface |
USB/I2C |
| Operating Temp |
-20°C ~ 70°C |
