MY series touch-all computer using metal profile edge graphic design, stylish and beautiful, equipped with high-definition display monitoring panel combined with a wealth of computer configuration, smooth corner design, user-friendly safety care, high-strength body with multi-point smooth capacitive touch panel, waterproof light, high wear, stable performance with a variety of installation methods, stylish, beautiful.
✦ Controller:

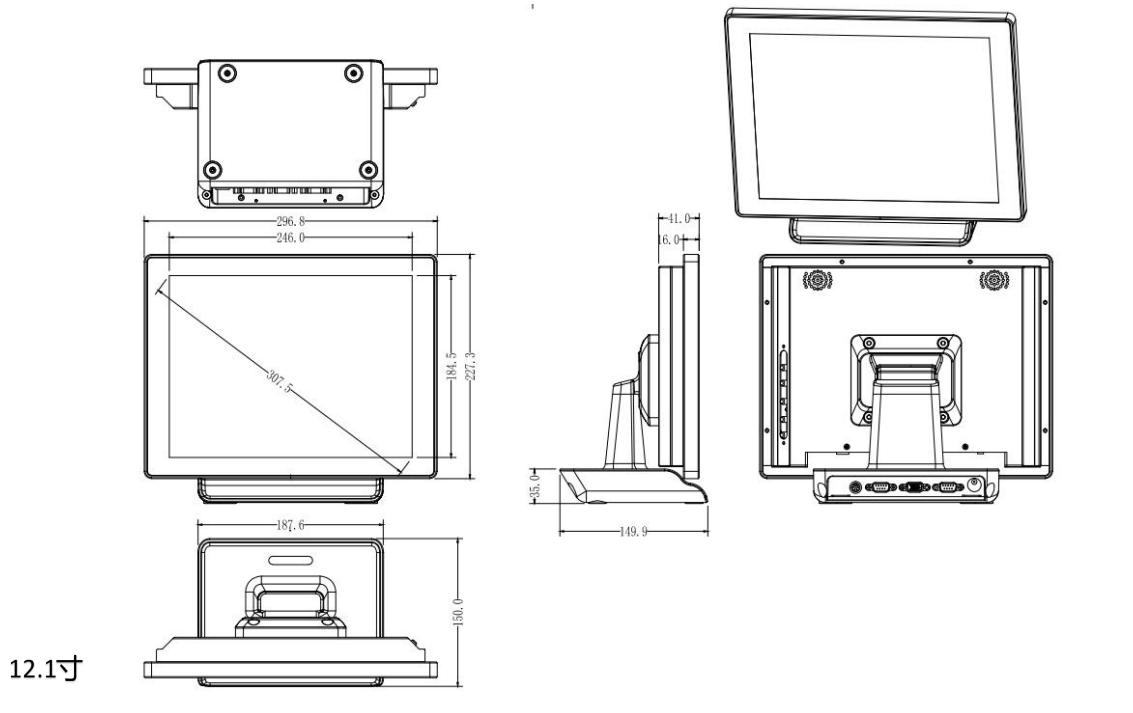

12.1 inch-PC：

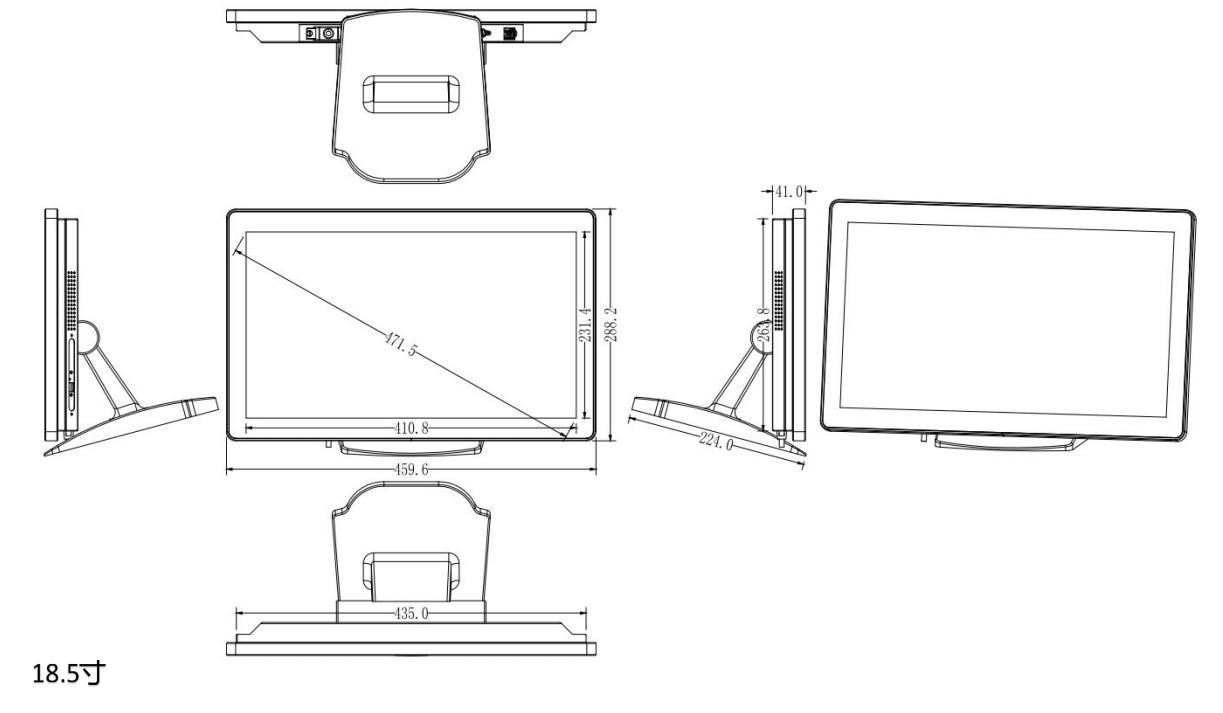

18.5 inch-PC：

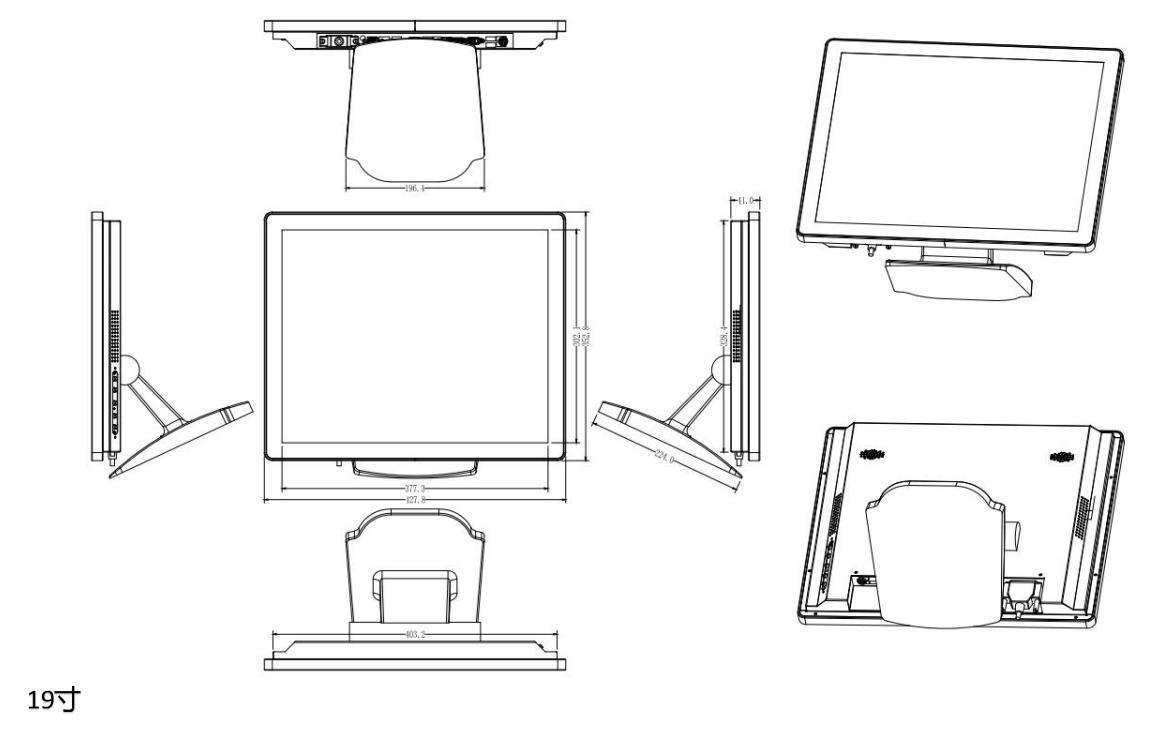

19 inch-PC：

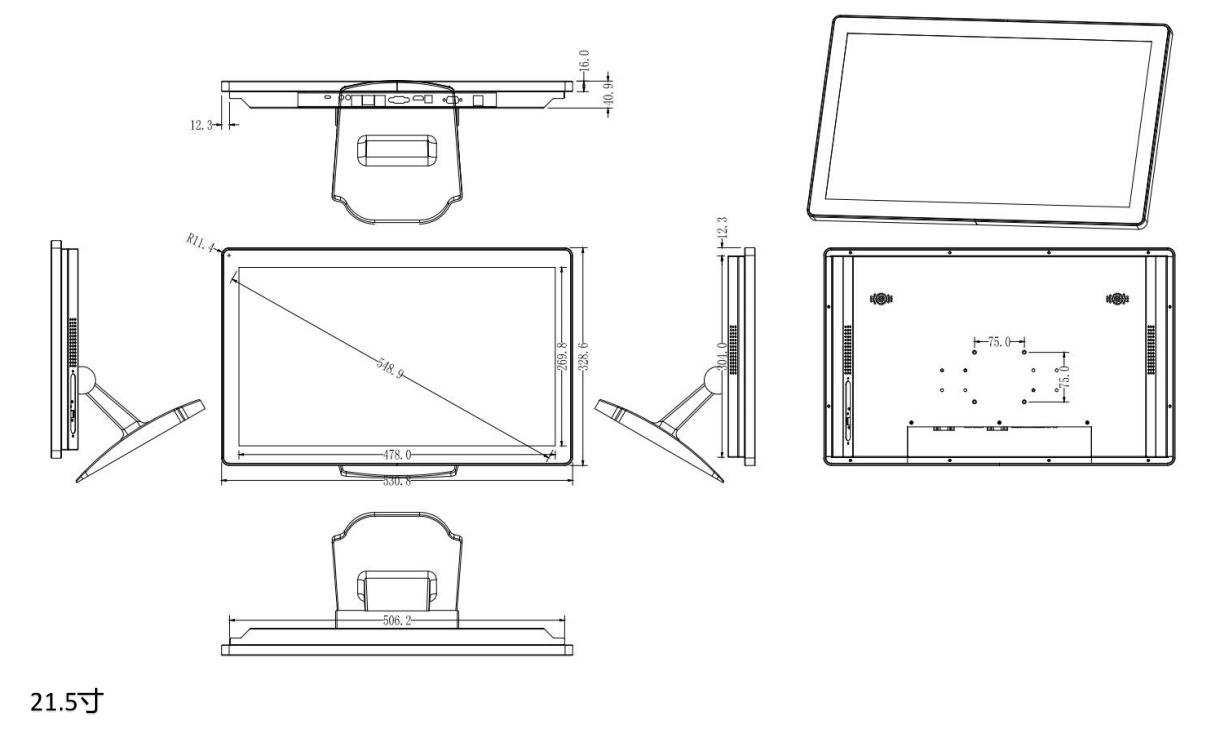

21.5 inch-PC：
✦ Features:
Pure flat without hindrance more smooth, metal profile stoush reinforcement body, line beauty, smooth touch panel, equipped with high-definition video monitoring screen perfect presentation screen texture, so that the picture information more delicate and rich configuration scheme, professional POS consumption, back kitchen, building security, information advertising to create.
* 19” LED-backlit panel with long life
* Wide operating temperature 0°C~50°C
* General brightness 250 cd/m2
* True Plane - Fashion Style
* Wide-view view
* Ultra-narrow ultra-thin profile - metal housing, injection molding
| System configuration | |
|---|---|
| Motherboard | M56 |
| CPU Model | Intel® Bay Trail® J1800/1900 (2.4/2.0 GHz) |
| Chipset | Intel® Bay trail SOC |
| RAM | 1*DDR3L SODIMM 1333MHz Max 8G |
| Display system | Integration Intel®HD Core Graphics |
| Internet | Realtek RTL811XX Gigabit networks |
| Store | SATA 2.5 Inch @ MSATA Slot Support SSD |
| Audio | ALC662 6-channel Hi-Fi |
| System | Windows 7、8、8.1 10、Linux |
| Feature items | Specification |
|---|---|
| Model | MY196(M56) |
| Size | 19 inch |
| Overall Dimension | |
| Packing Size | 540*457*206mm |
| Resolution | 1280 x 1024 |
| Color | 16.7M |
| Contrast | 1000:1 |
| Brightness | 250 cd/m² |
| Response time | 3.6ms |
| Light Life LED | 30K/H |
| Perspective | 85/85/80/80 |
| Gross/Quiet Weight | 7.5Kg/5.5Kg |
| Cover Glass Thickness | 1.8mm |
| Light Transmission | ≥90% |
| Surface Strength | 3H |
| Touch Life | ≥1000 times |
| Operating Humidity | 20%-80% RH |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Power Consumption | 24W |
| Power Input | 12V DC ±5% 5.5x2.5mm |
| Installation Method | VESE、Desktop |

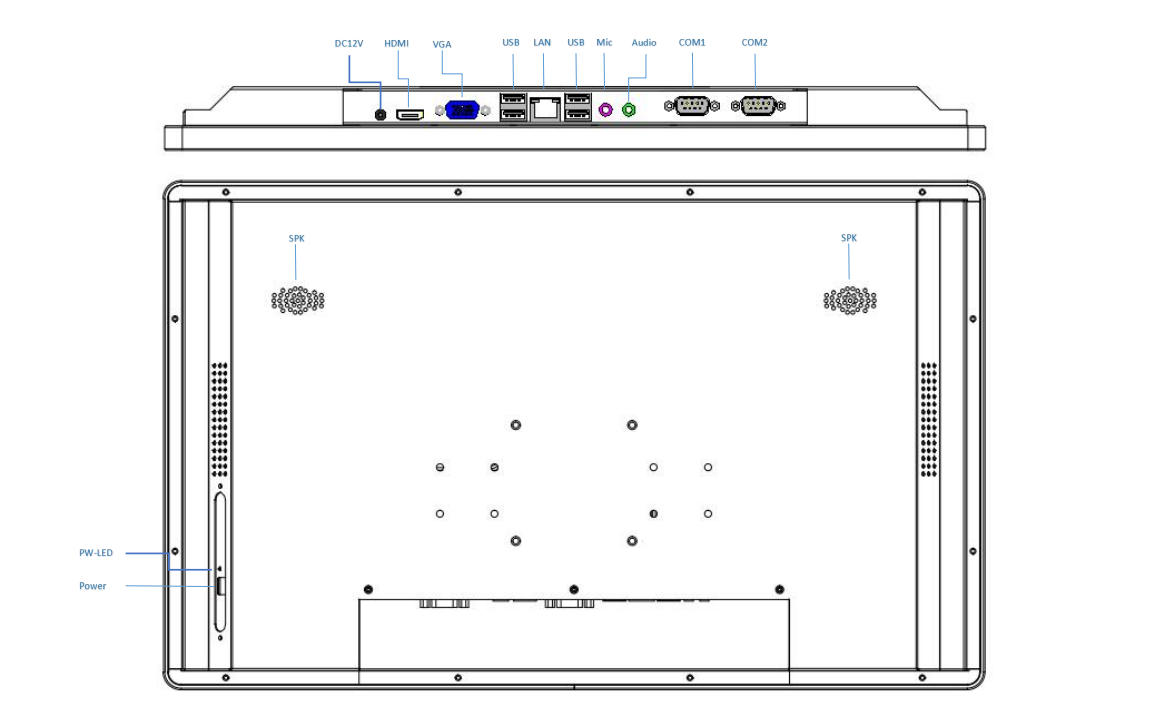

| Signal Ports | VGA x 1、HDMI x 1、USB2.0 x 3、USB3.0 x 1、RS232 x 1、LPT x 1（或RS232 x 2可选）、LAN(RJ45) x 1、Audio x 1、Mic x 1、12V DC-in x 1 |
