YL series monitors, according to industrial needs, for you to solve any industrial site, equipment brought about by the use of the problem, high-strength body and high-attached surface protective paint, high wear, anti-reflective, stable performance, a variety of installation methods.
✦ Controller :
✦ Features:
Enhanced flat metal protection panel, military resistance touch panel, rigid glass, industrial-grade monitoring screen, safety small fillet, sheet metal body, simple installation method tailored for equipment, assembly line control needs.
* 10.4” LED-backlit panel with long life
* Wide operating temperature -20°C~70°C
* General brightness 230 cd/m2
* True Plane - Fashion Style
* Wide-view view
* Ultra-narrow ultra-thin profile - metal housing,injection molding
* Multi-point capacitive touch touch panel with USB interface
* Rich signal interface: vga, dvi, hdmi

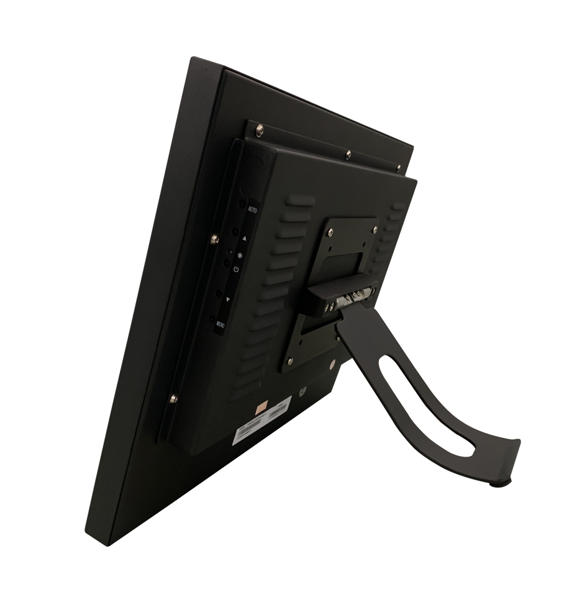

* Versatile installation method for desktop and VESA installations
* Anti-reflective surface treatment for sun readable enhancement (optional)
* RS-232 port for remote control (optional)
| Feature items | Specification | Feature items | Specification |
|---|---|---|---|
| Model | YL105 | Cover thickness | 1.8mm |
| Resolution | 800 x 600 | Light transmission | ≥80% |
| Color | 262K | Surface strength | 3H |
| Contrast | 400:1 | Touch life | ≥1000 times |
| Brightness | 230 cd/m2 | Operating humidity | 5-95% 40°C Non-codensation |
| Response time | 10ms | Operating temperature | -20°C~70°C |
| Light Life LED | 30K/H | Storage temperature | -30°C~80°C |
| Perspective | 65/65/45/65 | Power | 6W |
| Gross/Quiet Weight | 3KG/2KG | Power input | 12V DC ±5% 5.5x2.1mm |
| Packing Size | cm*cm*cm | How to install it | VESE、Desktop |
| Control Board | Menu、UP、Down、Auto-Adjust、On/Off Power | ||
| Menu features | Brightness、Contrast、Screen Settings、Color Temperature、Laguage OSD Settings、VGA/DVI、Auto-Adjust | ||
| Signal port | VGA x 1、DVI-D x 1 （HDMI x 1 Optional）、12V DC、USB x 1（Touch only） | ||
