ETP-MB-R4502UPEG

EETI chip solution 4/5wire RTP Universal touch controller designed by TouchKit and Over 10years experience in the market,it can support all size of 4/5wire RTP.

$0.00

Previous：Nothing

Next：Nothing

Description

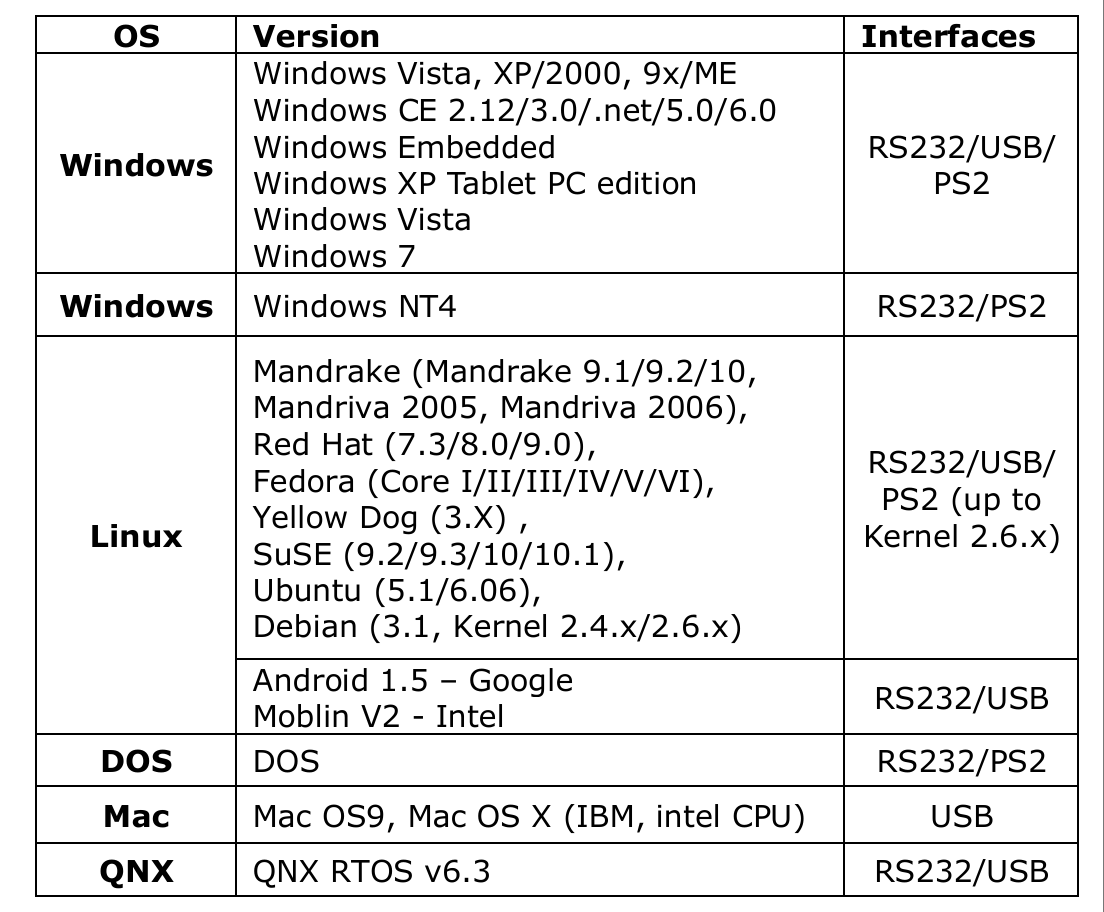

TouchKit launched touch control board to meet latest Restriction of Hazardous Substances (RoHS) Directive. This touch panel controller provides the optimistic performance of your analog resistive touch panels for 4 or 5 wire models. It communicates with PC system directly through USB connector. You can see how superior the design is in sensitivity 、accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following.
ETP-MB-R4502UPEG 4-5 wire USB Resistive Touch Screen Controller

Touch Controller:
ETP-MB-R4502UPEG 4-5 wire USB Resistive Touch Screen Controller

Specifications of touch controller:

Circuit Board Dimension	20mm x 70mm (0.79inches x 2.75inches)
Power Requirements	D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
Operating Temperature	-25 to 80 ℃
Storage Temperature	-55 to 150 ℃
Relative Humidity	95% at 60 ℃, RH Non-condensing
Interface	USB: 1.1 Full Speed
Resolution	2048*2048 resolution
Report rate	USB: Max. 200 points/sec
Response time	Max. 20 ms
Attached Cable	180cm shielded cable with USB-A connector
Regulatory Approvals	FCC-B , CE, Unaffected by EMI from other nearly CRTs and other display devices CRTs
EMI	Unaffected by environmental EMI
Panel resistance	4 wire resistive model: 200 ~ 900 ohm 5 wire resistive model: 50 ~ 200 ohm

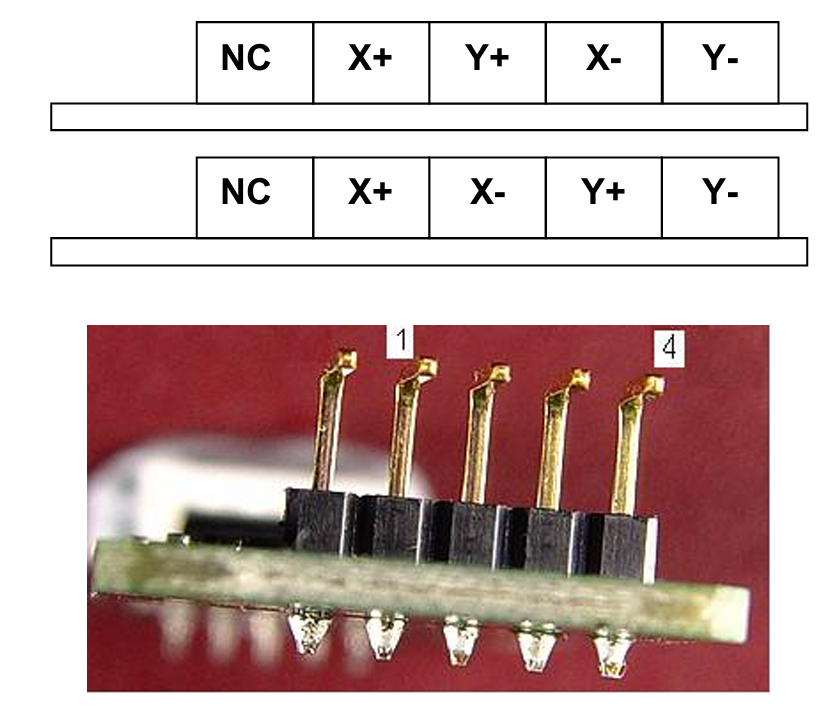

Controller Panel Pin Assignment: For 4-Wire Resistive Touch Panel Pin-Out as below figure is automatically detected
ETP-MB-R4502UPEG 4-5 wire USB Resistive Touch Screen Controller

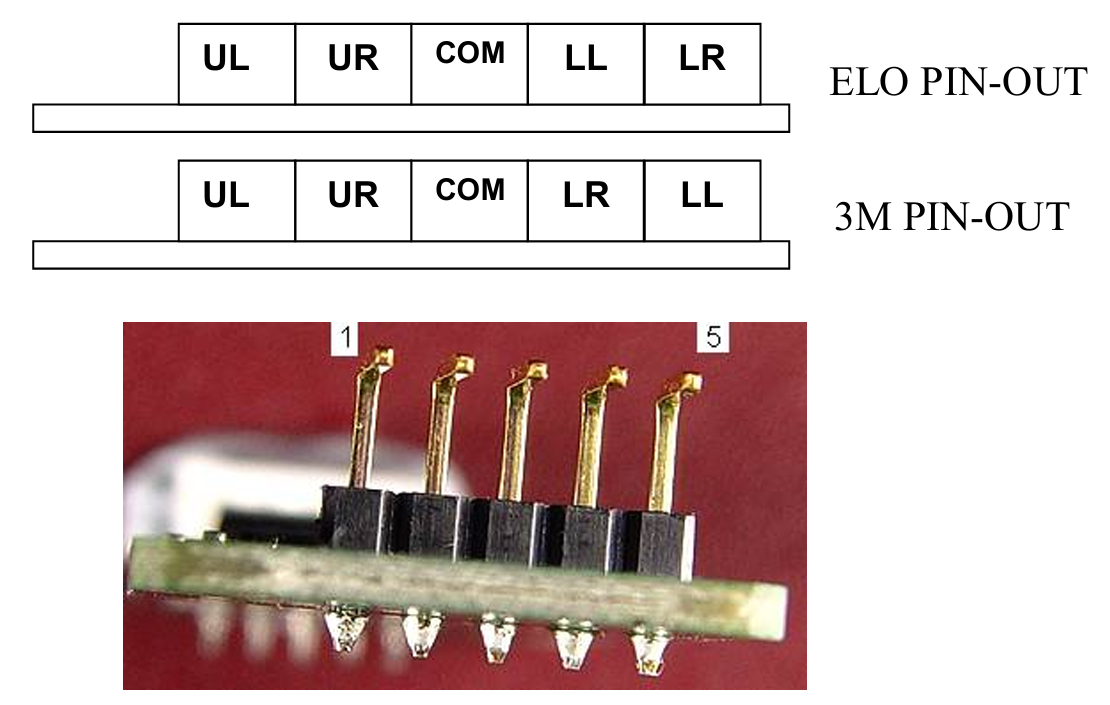

For 5-Wire Resistive Touch Panel ELO or 3M type Pin-Out is automatically detected
ETP-MB-R4502UPEG 4-5 wire USB Resistive Touch Screen Controller

Controller Wafer Pin Assignment:

ETP-MB-R4502UPEG 4-5 wire USB Resistive Touch Screen Controller
