Touchkit TK-UE11 is based on the chip EXC3000 of EETI, which can support up to10 touch point. This touch panel controller provides the optimum performance of your projected capacitive touch panels. It communicates with PC system directly through USB/uart connector. You can use how superior the design is insensitive accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following.
| Item | Specification | Interfaces |
|---|---|---|
| Windows | Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows CE.net/5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition |
USB/RS232 |
| Linux | Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE Android 2.3 ~ 4.4 |
USB/RS232 |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
| Parameter | USB/RS232 Type Controller |
|---|---|

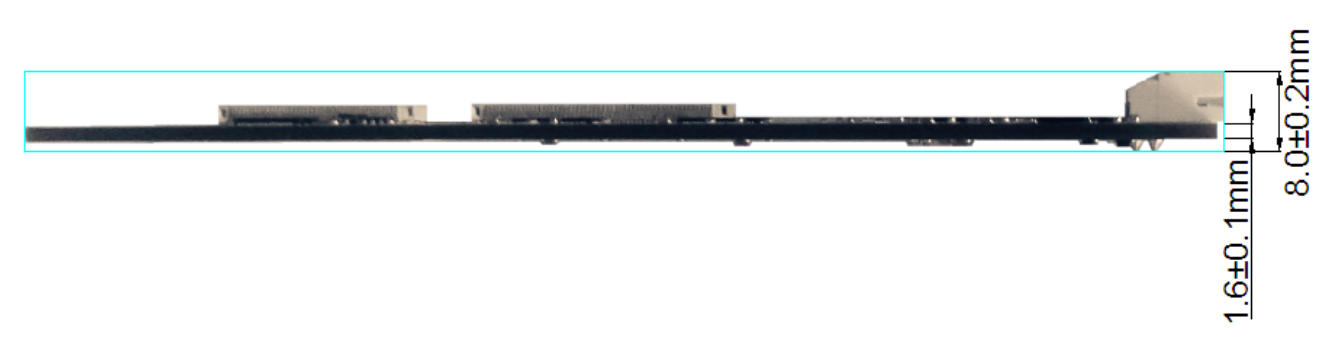

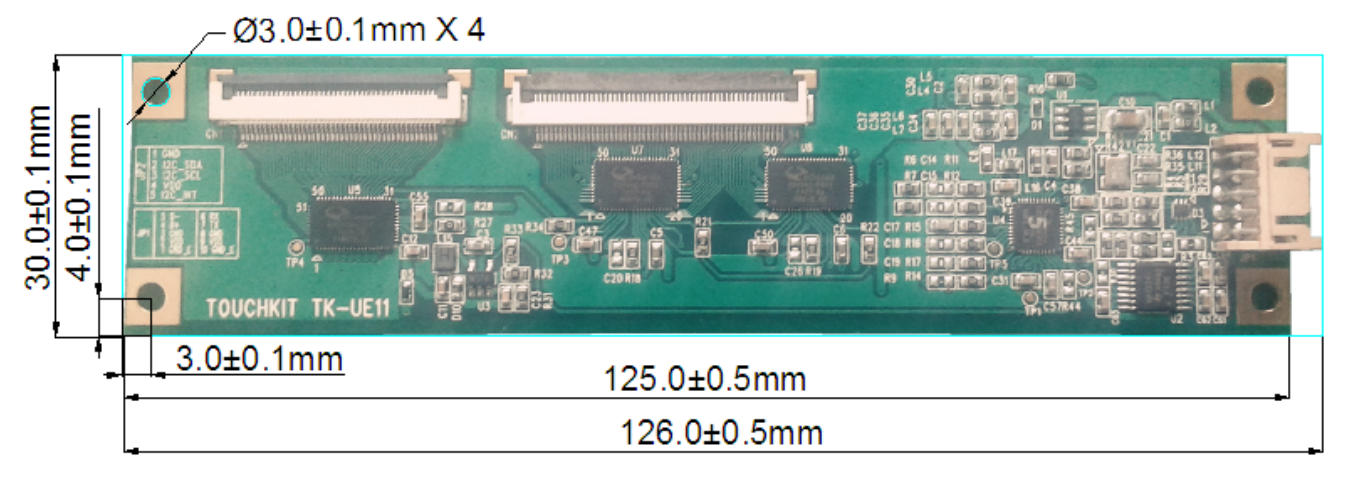

| Circuit Board Dimension | 30mm x 125mm |
| Channels of Panel | Max. Tx:40 Rx:52 channels (exclude shielding pin) |
| Input Voltage | 3.5V~5.5V. Typical 5V. |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃, RH Non-condensing |
| Linearity (Note 1) | Line drawing accuracy: 1pt +/- 1mm offset /10mm Touch (point) accuracy: 1pt +/- 1mm Refer to Windows 8 Logo regulation |
| Interface | USB: 1.1 Full Speed RS232: No parity, 8 data bits, 1 stop bit, baud rate 115200bps I2C: 100K/400K Hz |
| Resolution | 4096 × 4096 resolution |
| Power consumption (mA) | Active Mode: 82~85mA Idle Mode: 36~38mA Sleep Mode: < 5mA (Operation Mode: Active Mode only) |
| Report rate (points/sec) (Note 2) | ＞100 Hz |
| Response time | Average < 25 ms |
Note 1: Channel pitch should be design 4.8mm (Win8) or < 6mm (Non-Win8).
Note 2: Report rate will vary by channel number, cover thickness and other
parameters.
FPC Connector Pin Assignment:

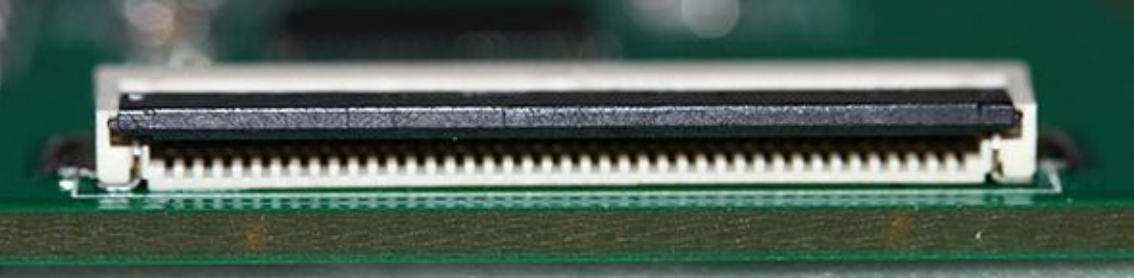

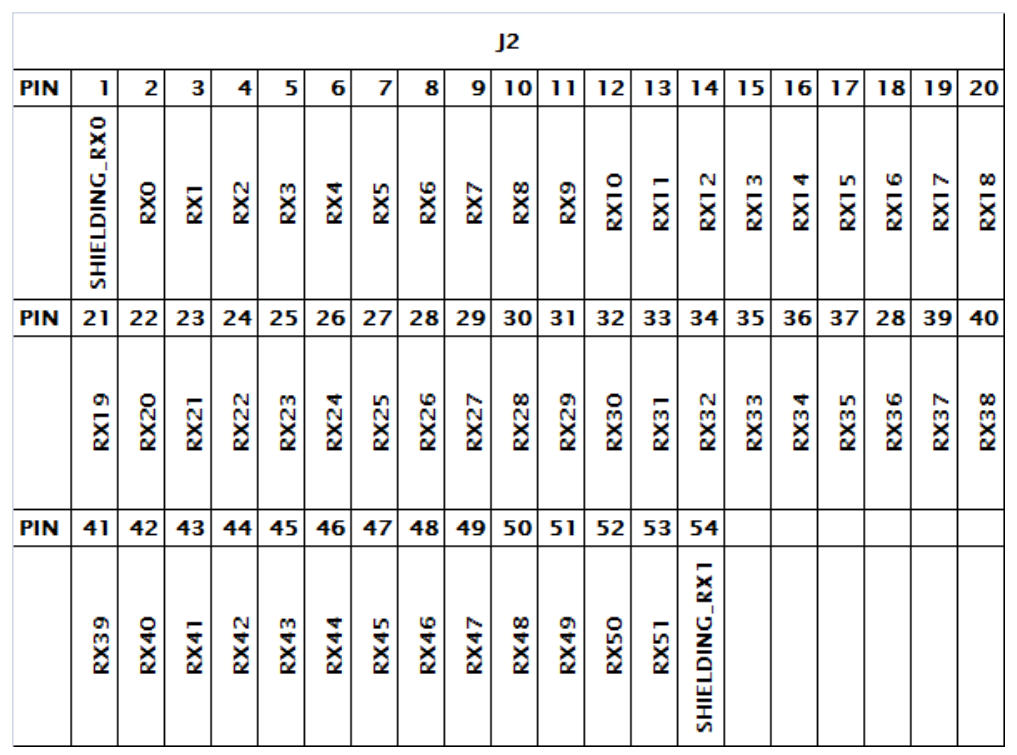

J2 Connector ---54pin：

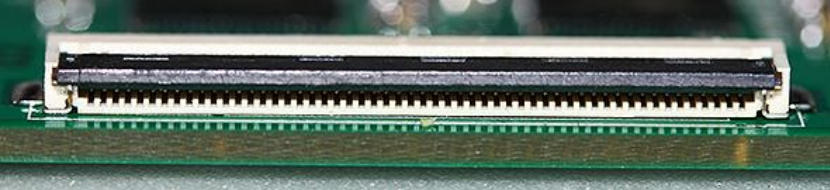

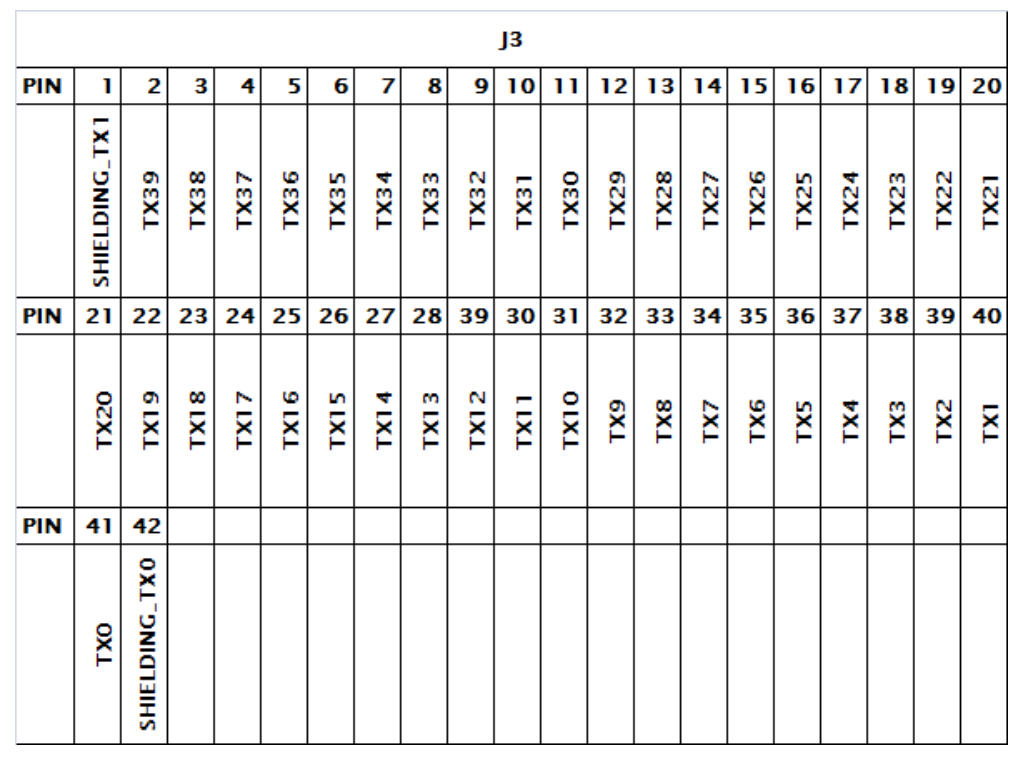

J3 Connector---42pin：

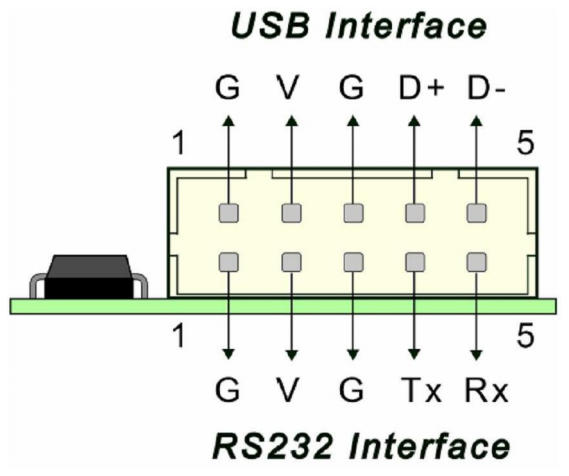

USB/RS232 Combo Connector：

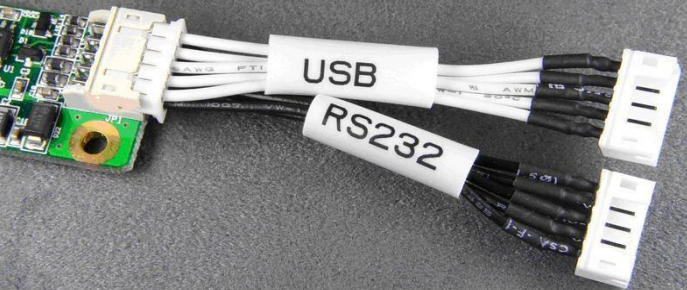

USB&RS232 interface:
