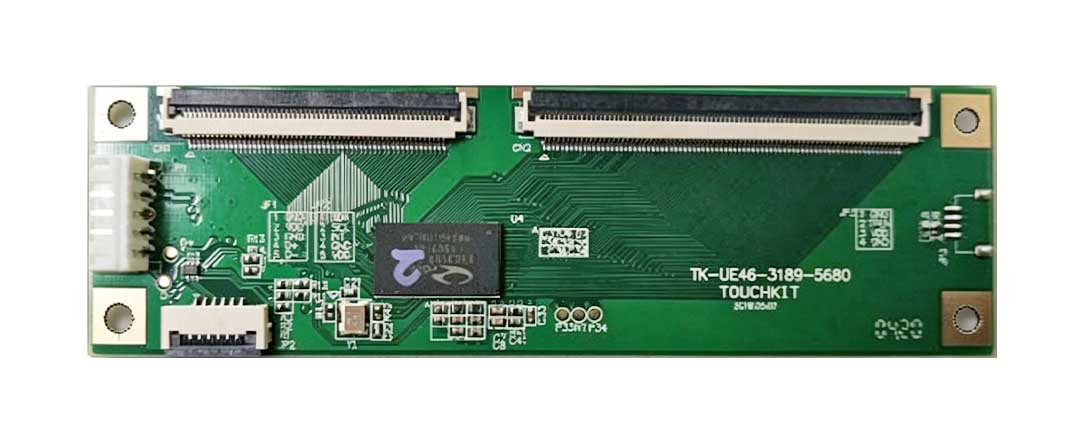

Touchkit TK-UE46 is based on the chip EXC3189 of EETI,which can support to10 touch point.This touch panel controller provides the optimistic performance of your projected capacitive touch panels. It communicates with PC system directly through USB/I2C connector. You can see how superior the design is in sensitivity accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following.
| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows CE.net/5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition | USB & I2C |
| Linux | Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE | USB & I2C |
| Android | Android 2.3 ~ 4.4 | USB & I2C |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB & I2C |
| QNX | QNX RTOS v6.3 | USB & I2C |
| Parameter | USB&I2C Type Controller |
|---|---|

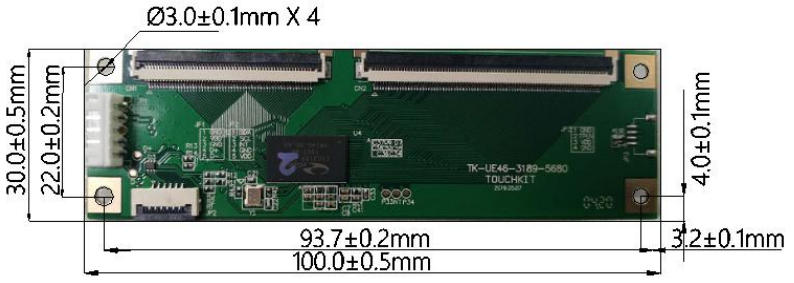

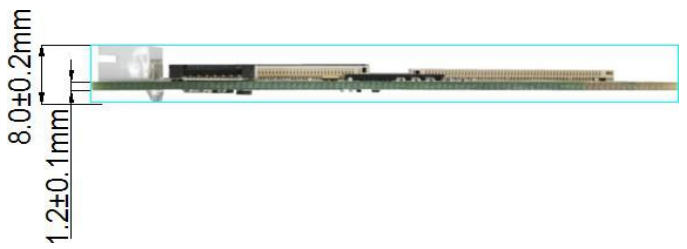

| Circuit Board Dimension | 30mm x 100mm |
| Channels of Panel | Max. Tx:44 Rx:78 channels (exclude shielding pin) |
| Input Voltage | Typical 5V / 3.3V. |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃ , RH Non-condensing |
| Linearity (Note 1) |
Line drawing accuracy : 1pt +/- 1mm offset /10mm Touch (point) accuracy : 1pt +/- 1mm Refer to Windows 8 Logo regulation |
| Interface | USB: 1.1 Full Speed, I2C:100K/400KHZ |
| Resolution | 4096 × 4096 resolution |
| Power consumption(mA) | Active Mode: 82~85mA Idle Mode : 36~38mA Sleep Mode :< 5mA (Operation Mode :Active Mode only) |
| Report rate(points/sec) (Note 2) |
>100 Hz |
| Response time | Average < 25 ms |
Note 1: Channel pitch should be design 4.8mm (Win8) or < 6mm (Non-Win8).
Note 2: Report rate will vary by channel number, cover thickness and other parameters.
FPC Connector Pin Assignment:

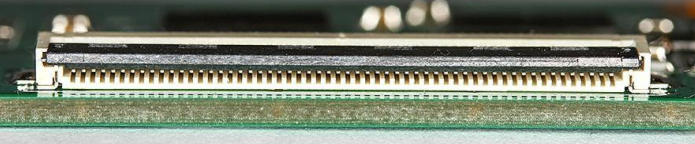

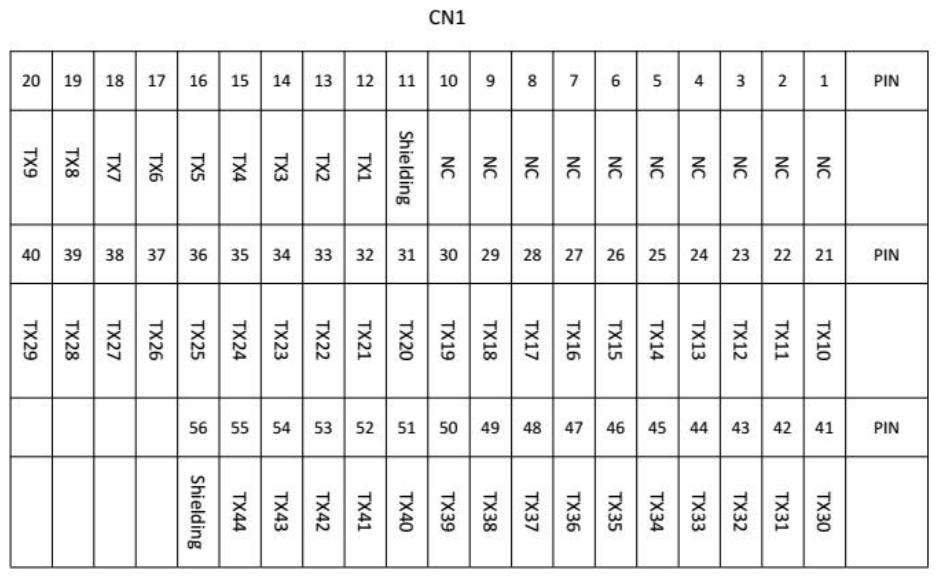

✦ CN2 Connector ---56pin:

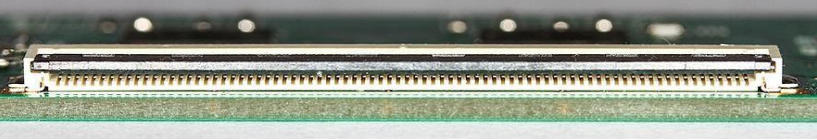

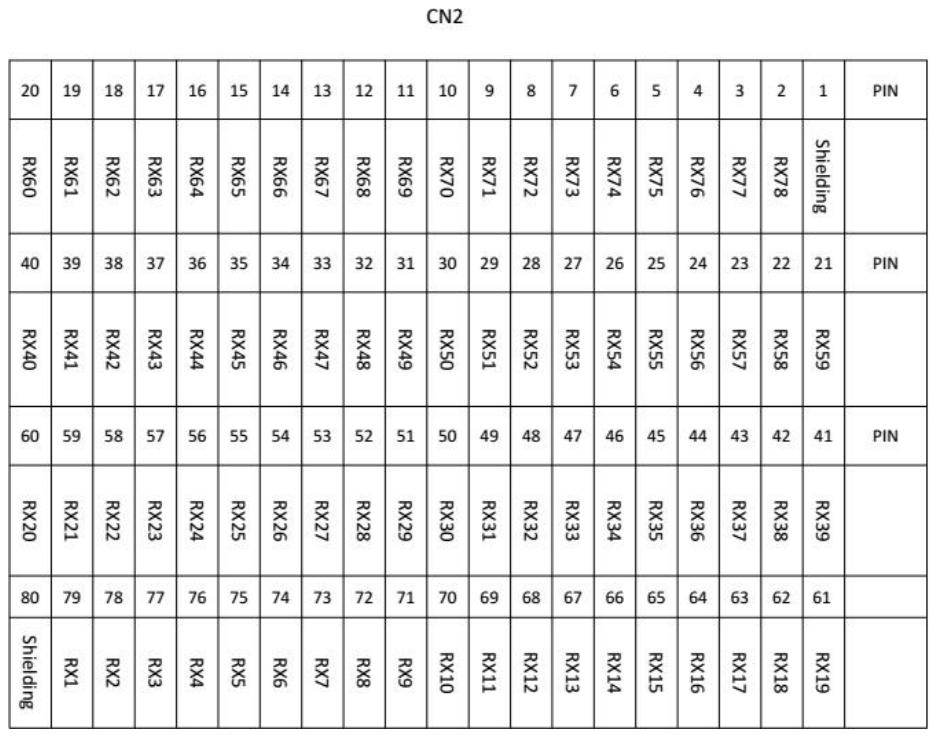

✦ CN2 Connector---80pin:

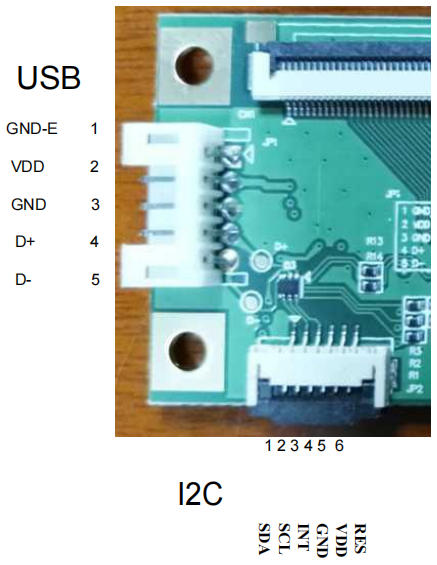

✦ USB & I2C Interface:
