Touchkit TK-UE64 is based on the chip EXC81W84 of EETI, which can support to 10 touch point. This touch panel controller provides the optimistic performance of your projected capacitive touch panels. It communicates with PC system directly through USB/I2C connector. You can see how superior the design is in sensitivity accuracy and friendly operation. The touch panel driver emulates mouse left and right button function.
| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 10、Windows 8(Need logo submission)、Windows 7、Windows Vista, XP/2000、Windows CE.net/5.0/6.0/7.0、Windows Embedded、Windows XP Tablet PC edition | USB & I2C |
| Linux | Distribution based on Kernel 2.6.24 and later (Ubuntu/Linux Mint、Debian、Fedora、Red Hat/CentOS、Magaie/Mandriva/Mandrake、SUSE/openSUSE) | USB & I2C |
| Android | Android 2.3 to latest version | USB & I2C |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB & I2C |
| QNX | QNX RTOS v6.3 | USB & I2C |
| Parameter | USB&I2C Type Controller |
|---|---|

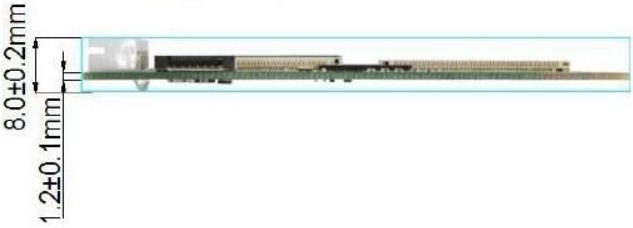

| Circuit Board Dimension | 30mm x 100mm |
| Channels of Panel | Max. Tx:46 Rx:78 channels (exclude shielding pin) |
| Input Voltage | Typical 5V / 3.3V |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃, RH Non-condensing |
| Linearity (Note 1) |
Line drawing accuracy: 1pt ±1mm offset /10mmTouch accuracy: 1pt ±1mmRefer to Windows 8 Logo regulation |
| Interface | USB: 2.0 Full SpeedI2C:100K/400KHZ |
| Resolution | 4096 × 4096 resolution |
| Power consumption(mA) | Active Mode: <90mAIdle Mode: 36~38mASleep Mode: <5mA(Only Active Mode available) |
| Report rate(points/sec) (Note 2) |
>100 Hz |
| Response time | Average < 25 ms |
| Support product size | 18.5inch ~ 55inch |
Note 1: Channel pitch should be design 4.8mm (Win8) or < 6mm (Non-Win8).
Note 2: Report rate will vary by channel number, cover thickness and other parameters.
FPC Connector Pin Assignment:

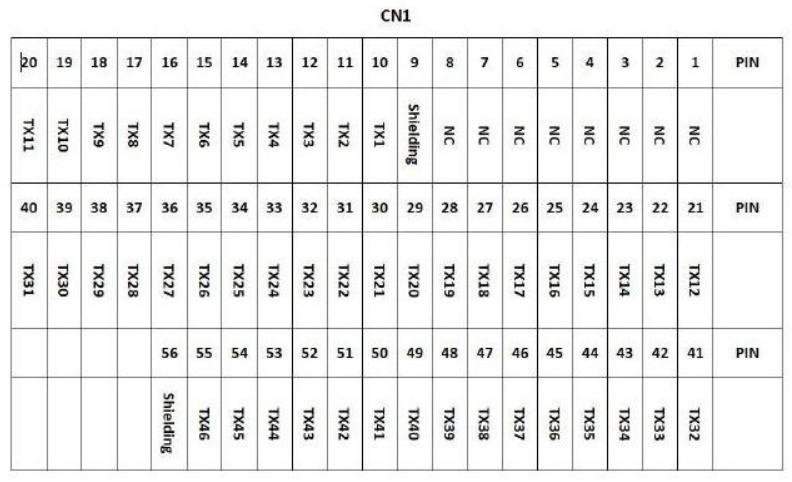

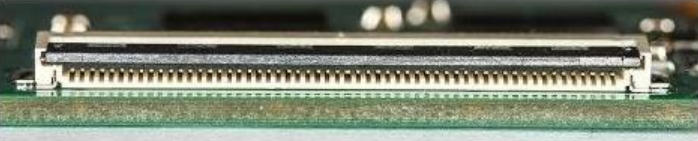

✦ CN2 Connector ---56pin:

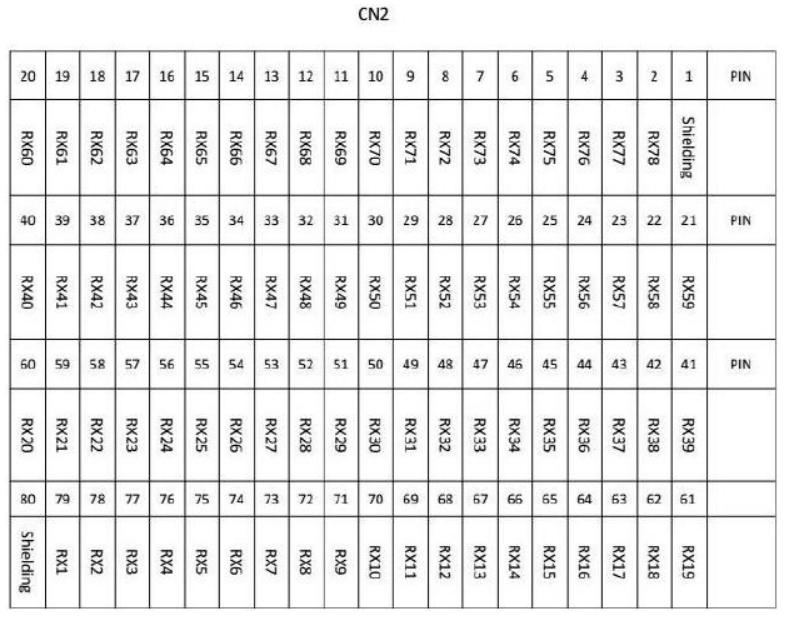

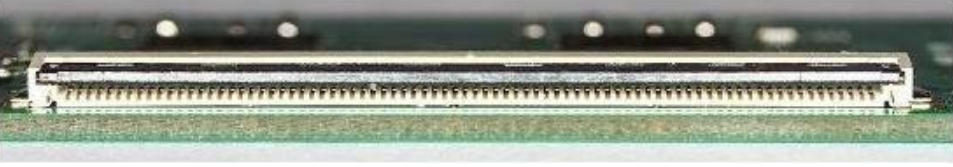

✦ CN2 Connector---80pin:

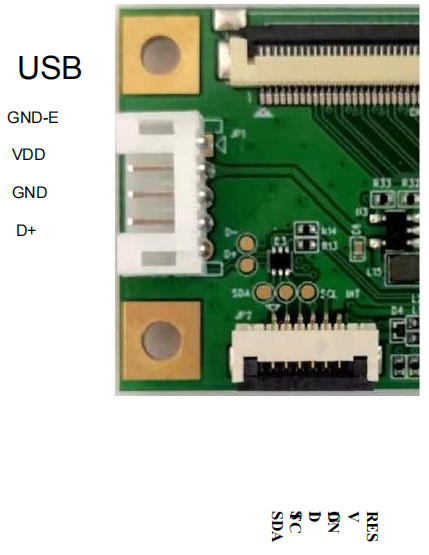

✦ USB & I2C Interface:
