Touchkit TK-UE80 is based on the chip EXC80H128 of EETI, which can support to 20 touch points.This touch panel controller provides the optimistic performance of your projected capacitive touch panels.It communicates with PC system directly through USB connector.

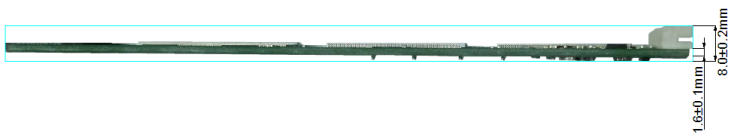

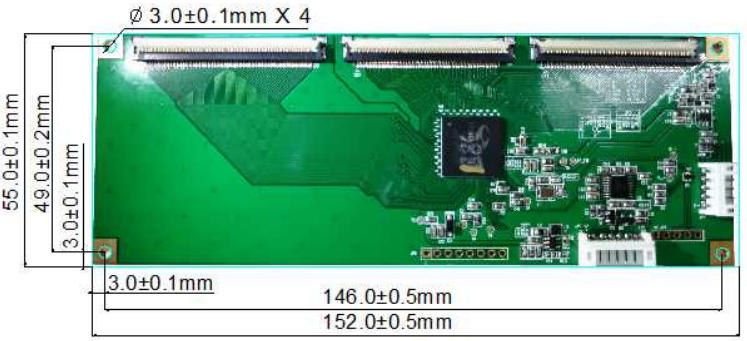

| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 11/10/8/7/Vista/XP/2000, CE, Embedded | USB |
| Linux | Kernel 2.6.24 and later | USB |
| Android | 2.3 to latest version | USB |
| Mac | Mac OS, Mac OS X | USB |
| QNX | QNX RTOS v6.3 | USB |
| Parameter | USB&I2C Type Controller |
|---|---|
| Circuit Board Dimension | 30mm × 100mm |
| Channels of Panel | Max. Tx:64 Rx:128 channels |
| Input Voltage | 5V / 3.3V |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% RH non-condensing at 60℃ |
| Linearity (Note 1) |
USB 2.0 Full Speed |
| Interface | USB 2.0 Full Speed |
| Resolution | 4096 × 4096 resolution |
| Report Rate | > 100 Hz |
| Response Time | Average < 25 ms |
| Support Size | 32inch ~ 86inch |
Note 1: Channel pitch should be design 4.8mm (Win8) or < 6mm (Non-Win8).
Note 2: Report rate will vary by channel number, cover thickness and other parameters.

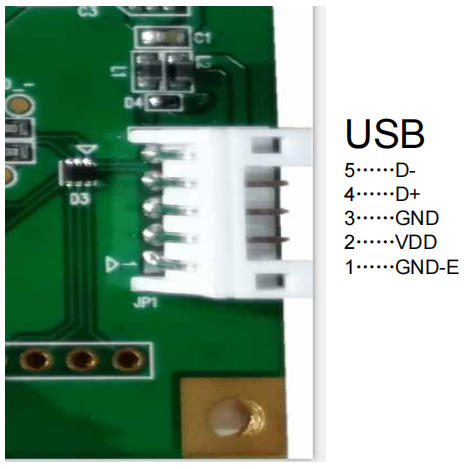

FPC Connector Pin Assignment:

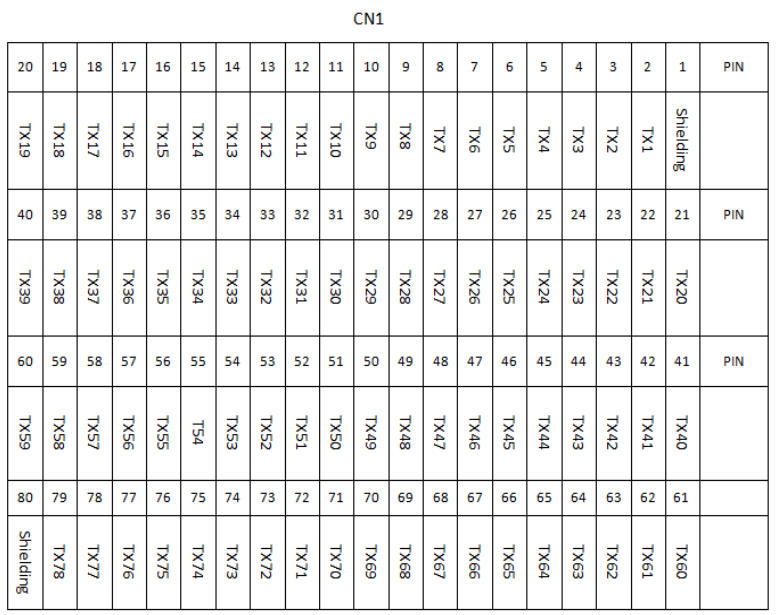

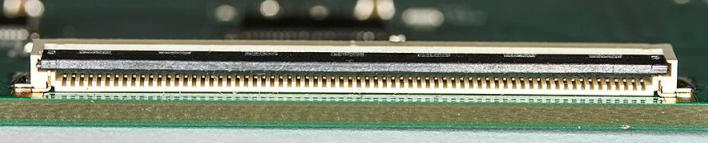

✦ CN2 Connector---80pin:

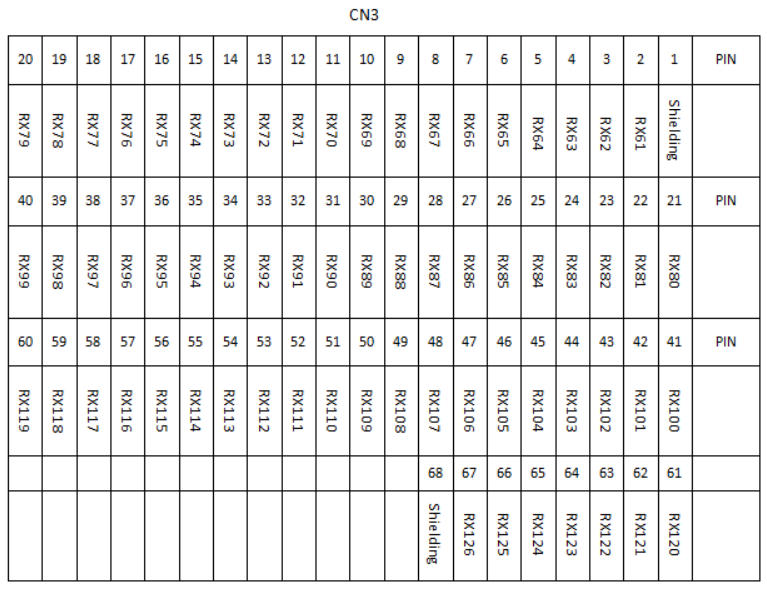

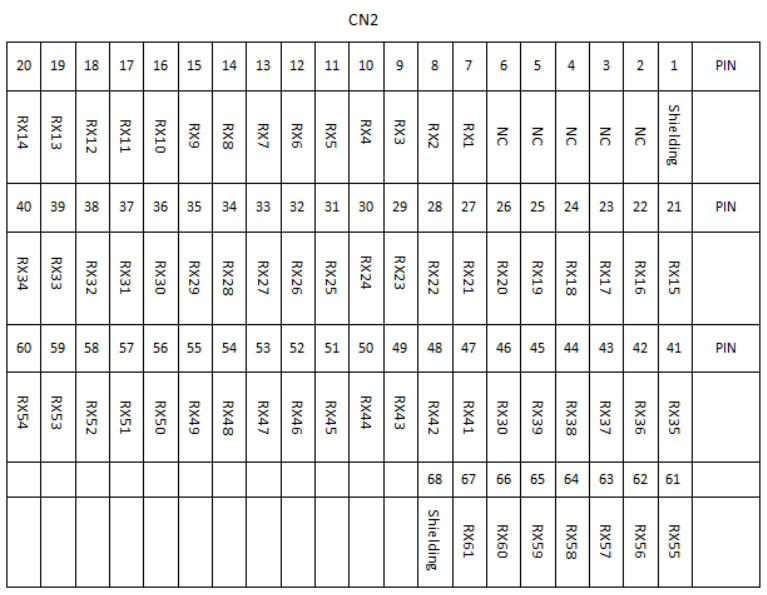

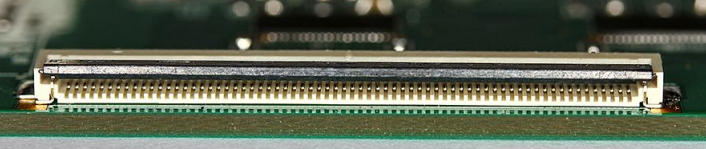

✦ CN2 Connector---68pin:

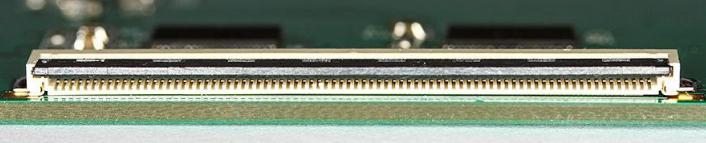

✦ CN2 Connector---68pin:
✦ CN2 Connector---68pin:
