Product Overview

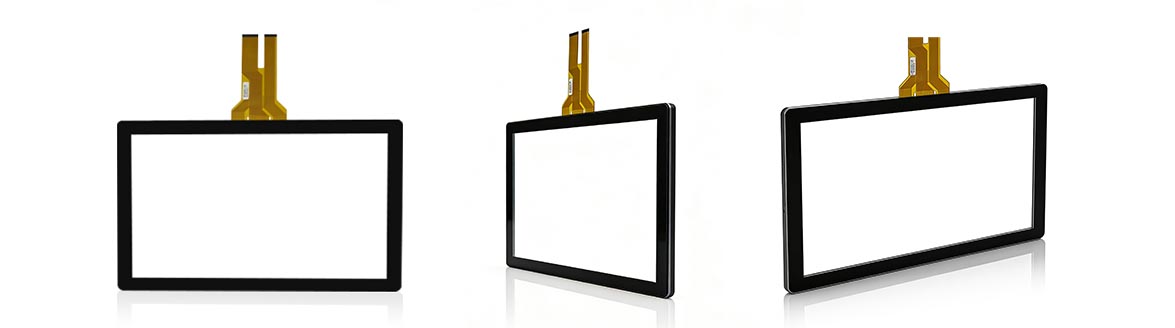

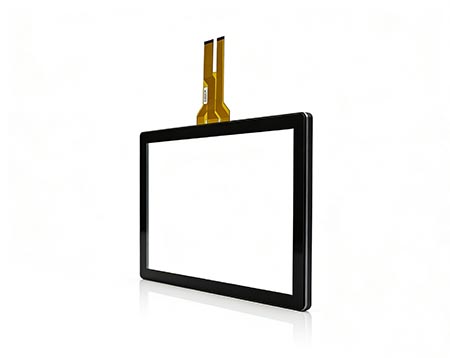

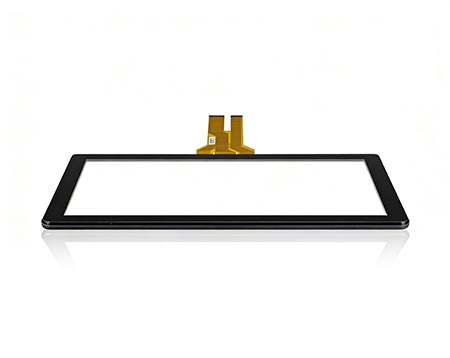

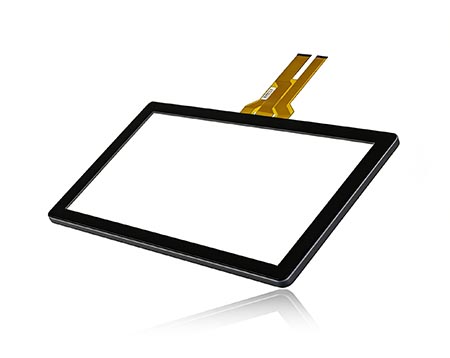

This is a 15.6-inch projected capacitive touch panel that realizes precise touch control through human body capacitive sensing. It supports up to 10-finger multi-touch and adopts a stable Glass/Glass double-glass structure. Featuring high sensitivity, high reliability and wide temperature adaptability, it serves as a core interactive component for industrial control, automotive terminals, commercial displays, smart devices and other scenarios, designed for stable mass production delivery.

Product Advantages

▪ 10-point precise touch: Native 10-point touch support, report rate >100Hz, line drawing accuracy ±1.5mm/10mm, point touch accuracy ±1.5mm, no delay and accurate positioning.
▪ High-definition optical display: Transmittance of 85±5% at 550nm wavelength, haze ≤3%, transparent picture and true color restoration.
▪ High scratch resistance: Surface pencil hardness ≥6H, scratch and wear resistant, no obvious marks after long-term use.
▪ Wide temperature stable operation: Operating temperature -20℃~+70℃, storage temperature -30℃~+80℃, humidity 45%~85%RH, reliable touch in high and low temperature environments.
▪ Strong anti-interference: Excellent anti-static and anti-electromagnetic interference performance with standard grounding, stable touch without drift or failure.
▪ Mass-production reliability: Passes strict reliability tests including ball drop, high-low temperature cycle, constant temperature and humidity, with good batch consistency.

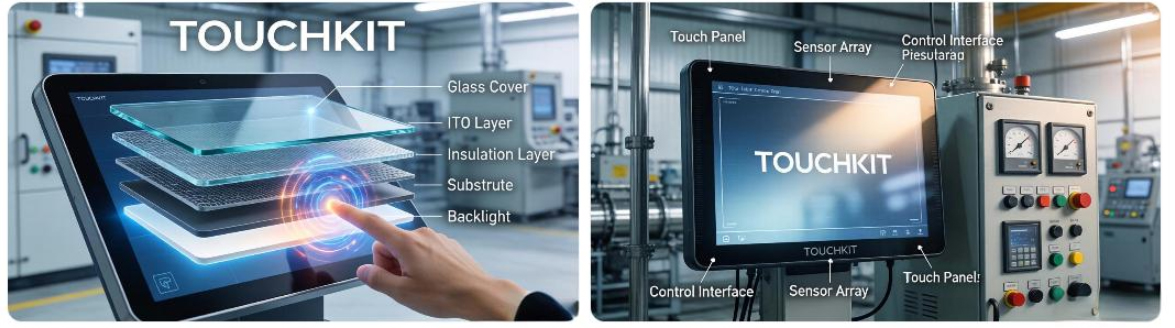

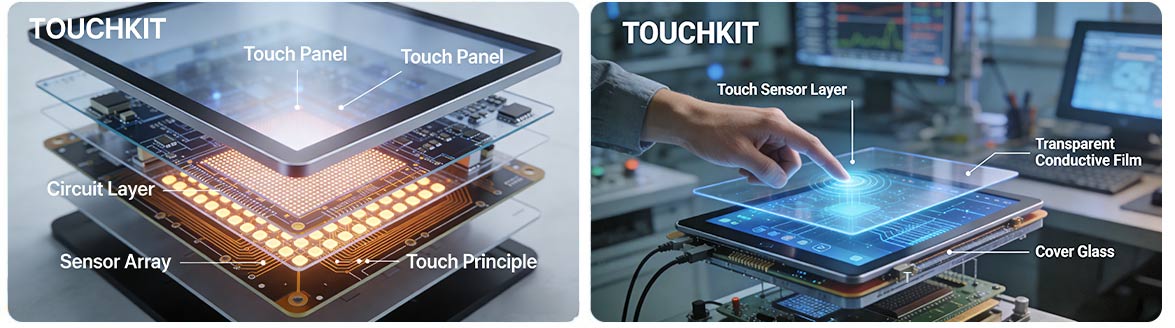

 Product Structure

▪ Protective outer layer: 1.1mm reinforced cover glass, supporting precision R-corner/C-corner processing, hardness up to 6H.
▪ Sensing layer: ITO conductive sensing array, accurately capturing capacitive signals and supporting 10-finger simultaneous recognition.

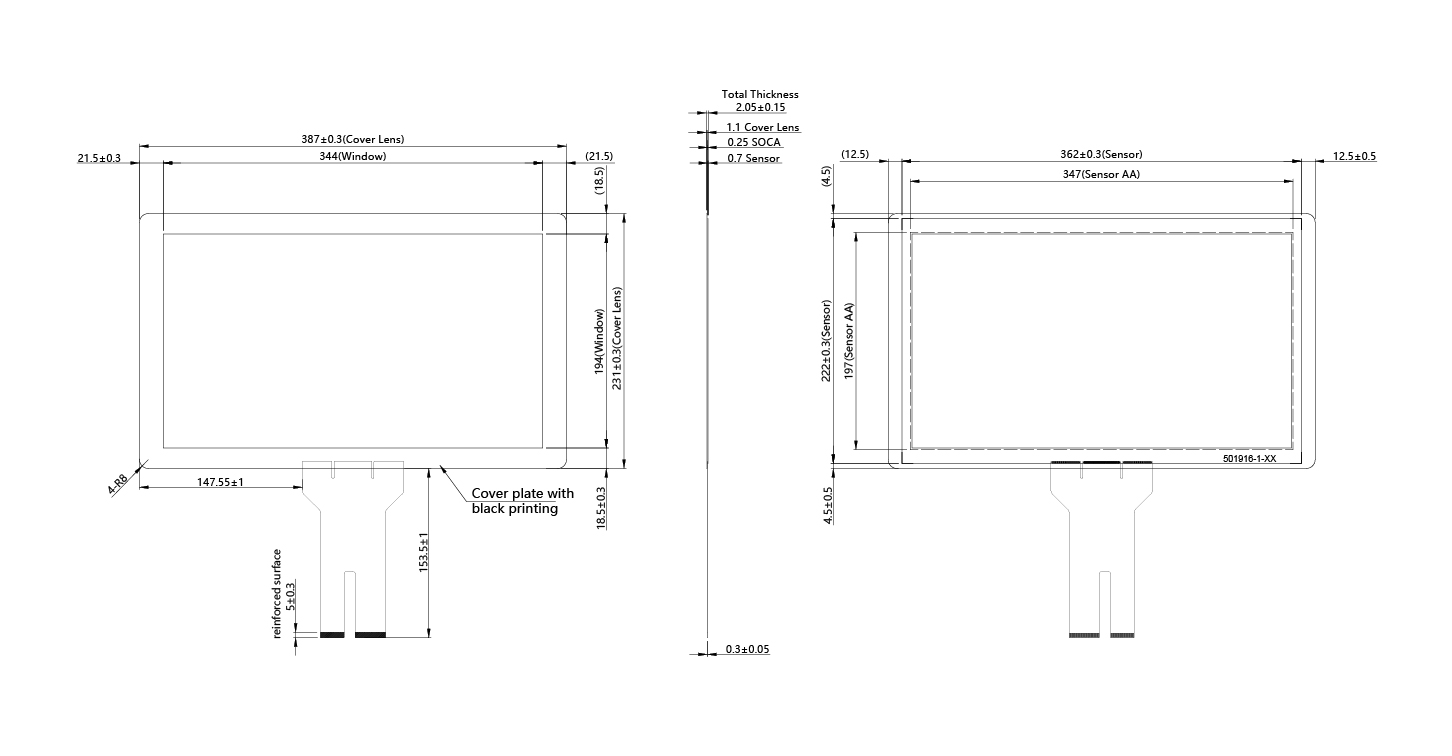

▪ Substrate layer: 0.7mm sensor glass substrate, Glass/Glass structure, total thickness 2.05±0.15mm.
▪ Control circuit: Touch driver + FPC flexible circuit, FPC thickness 0.3±0.05mm, peeling strength ≥500gf/cm.
▪ Optical bonding layer: Bonded with double-sided tape/VHB, stably combined with TFT-LCD module, isolating moisture and dust.

 Product Features

▪ Touch performance: Supports finger/capacitive stylus input, report rate >100Hz, smooth response.
▪ Size & thickness: Standard 15.6-inch size, total thickness 2.05±0.15mm, slim and compact.
▪ Environmental adaptability: Wide temperature and humidity range, suitable for harsh industrial and automotive environments.
▪ Mechanical reliability: No damage from 64g±2g steel ball drop at 60cm, warpage ≤ length×0.3%, stable structure.
▪ Strict appearance standard: Inspected under class 10,000 clean room, strict control of linear, dot and printing defects, high appearance consistency.
▪ Environmental compliance: Complies with RoHS, 1-year warranty under normal use, safe and stable.

 Product Customization

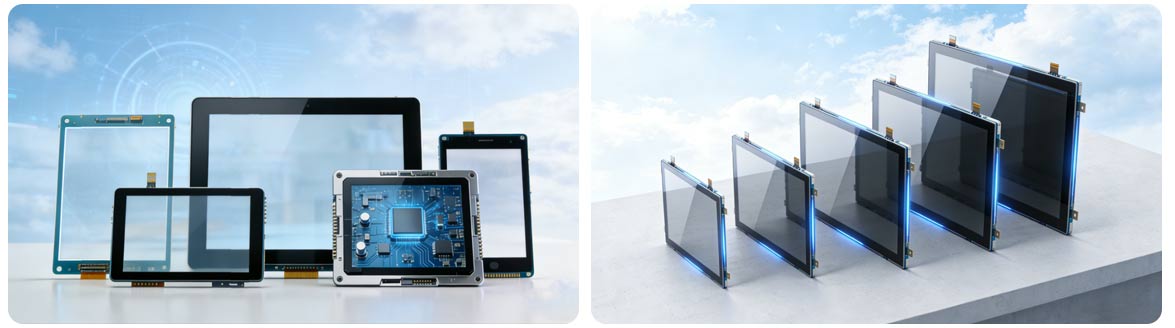

▪ Size range: Based on 15.6-inch, customizable for 7–65-inch sizes on the same platform.
▪ Surface treatment: AG anti-glare, AF anti-fingerprint, AR anti-reflection, privacy protection and other enhanced treatments.
▪ Structure customization: Border printing, LOGO customization, R-corner/C-corner adjustment, mounting structure adaptation.
▪ Function enhancement: Wide temperature upgrade, waterproof packaging, anti-interference enhancement, glove/wet hand touch adaptation.
▪ Interface & electrical: FPC routing, connector type, driver scheme adjustable as required.
▪ Appearance silk-screen: IR hole, border color matched accurately according to drawings and PANTONE numbers.

 Product Applications

✦  Industrial control: Industrial HMI, all-in-one PCs, embedded control terminals.
✦  Automotive electronics: Automotive central control, navigation, infotainment displays.
✦  Commercial terminals: Self-service machines, advertising displays, POS machines, smart cabinet screens.
✦  Smart devices: Smart home control, medical monitors, tablet terminals, industrial displays.
✦  Mobile devices: Portable industrial tablets, outdoor smart terminals, automotive display modules.
