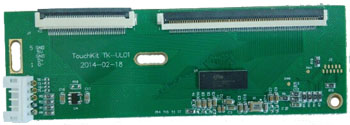

Control Board
Elan TK-UL01
|
For the realization of touch screen with the customer between the host signal conversion, to achieve this through a virtual mouse and keyboard to guest host operation. |
Control Board
|
Environment Conditions
| Items | Value |
| Operating temperature & Humidity | -20℃-+85℃ |
| Storage temperature & Humidity | -40℃-+100℃ |
| Relative Humidity | 90% RH at 60℃ |
Electrical Characteristics
| Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
| Supply Volt | USB,5V DC |
| Power consumption(mA) | Active Mode:<15mA,Idle Mode:5mA |
| Report rate | 10Points Touch:80Hz |
| Oscillator Frequency | 12MHz |
| Channels of Panel | Max. X:78, Y:62 channels |
| Support Points | 1-10 Points |
| Linearity | 1PT:+/- 1mm,10PT:+/- 2.5mm |
| Min. Report Rate | 100 points/sec (Target, Need formal test report) |
| Max. operating frequency | 100 MHz |
| Response Time | <10ms |
| Operating system | Windows7、Windows8、android |
(TA=40 to +70℃ Regin=5.0V unless otherwise specified)
Pin Assignm
|
Pin
|
Name
|
Type
|
Description
|
|
1
|
DM
|
Signal
|
USB D-Signal
|
|
2
|
DP
|
Signal
|
USB D-Signal
|
|
3
|
GND
|
GND
|
Ground
|
|
4
|
VCC
|
USB 5VDC
|
Supply Voltage
|
|
5
|
GND
|
GND
|
Ground
|

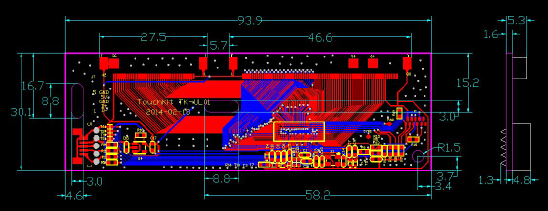

Engineering Drawing
