EETI TK-UE12
　
Touch Panel Controller

Touchkit TK-UE12 is based on the chip EXC3000 of EETI,which can support to10 touch point.This touch panel controller provides the optimistic performance of your projected capacitive touch panels. It communicates with PC system directly through USB/UART connector. You can see how superior the design is in sensitivity accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following.

OS Version Interfaces
Windows Windows 8(Need logo submission)
Windows 7
Windows Vista, XP/2000
Windows CE.net/5.0/6.0/7.0
Windows Embedded
Windows XP Tablet PC edition		 USB/RS232
Linux Distribution based on Kernel 2.6.24 and
later.
(Ubuntu/Linux Mint
Debian
Fedora
Red Hat/CentOS
Magaie/Mandriva/Mandrake
SUSE/openSUSE		 USB/RS232
Android 2.3 ~ 4.4 USB/RS232
Mac Mac OS, Mac OS X (PowerPC, Intel CPU) USB
QNX QNX RTOS v6.3 USB/RS232

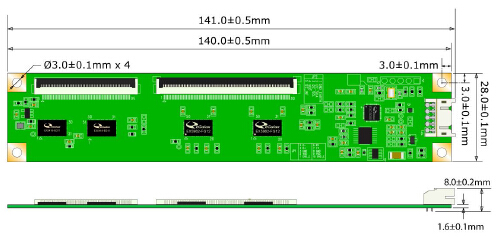

Controller:




Thickness:
Total thickness: 8.0mm ± 0.2mm
(Including PCB: 1.6mm ± 0.1mm. USB/RS232 connector: 5.1mm.
Soldering pin: 1.3 mm)


Specifications:

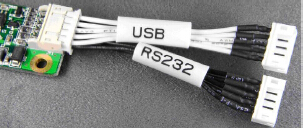

USB/RS232 Type Controller
Circuit Board Dimension 30mm x 125mm
Channels of Panel Max. Tx:40 Rx:52 channels (exclude shielding pin)
Input Voltage 3.5V~5.5V.Typical 5V.
Operating Temperature -40 to 85 ℃
-40 to 85 ℃
Storage Temperature		 -40 to 90 ℃
-40 to 90 ℃
Relative Humidity		 95% at 60 ℃, RH Non-condensing
Linearity(Note 1) Line drawing accuracy :
1pt +/- 1mm offset /10mm
Touch (point) accuracy : 1pt +/- 1mm
Refer to Windows 8 Logo regulation
Interface USB: 1.1 Full Speed
RS232: No parity,8 data bits,1 stop bit, baud rate
115200bps
I2C:100K/400K Hz
Resolution 4096*4096 resolution
Power consumption(mA) Active Mode: 82~85mA
Idle Mode : 36~38mA
Sleep Mode :< 5mA
(Operation Mode :Active Mode only)
Report rate(points/sec)
(Note 2)		 ＞100 Hz
Response time Average < 25 ms



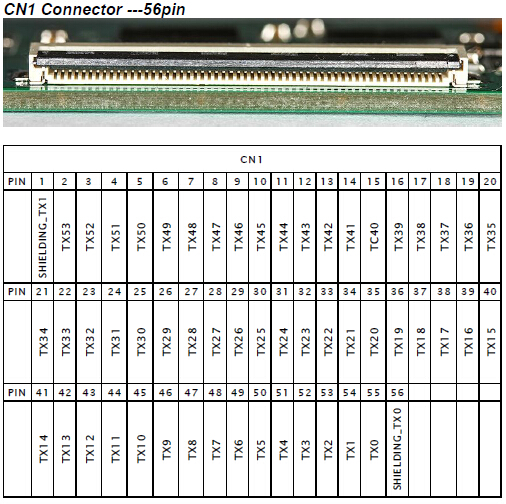

CN2 Connector ---80pin
