EETI TK-UE01 is a projected capacitive touch panel controller compliant with RoHS Directive. It delivers optimal performance in sensitivity, accuracy and user-friendly operation, supporting direct communication with host systems via USB/RS232/I2C interfaces. The driver emulates mouse left and right button functions and supports mainstream operating systems.
| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 7, Vista, XP/2000, 9x/ME Windows CE 2.12/3.0/.net/5.0/6.0 Windows Embedded Windows XP Tablet PC edition |
USB/RS232 |
| Linux | Mandrake (Mandrake 9.1/9.2/10, Mandriva 2005, Mandriva 2006), Red Hat (7.3/8.0/9.0), Fedora (Core I/II/III/IV/V/VI), Yellow Dog (3.X) , SuSE (9.2/9.3/10/10.1), Ubuntu (5.1/6.06), Debian (3.1, Kernel 2.4.x/2.6.x) |
USB/RS232/I2C (up to Kernel 2.6.x) |
| Android / Moblin / Meego | Android 4.0, Google Moblin V2, Intel Meego | USB/RS232/I2C |
| Mac | Mac OS9, Mac OS X (IBM, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
| Parameter | USB/RS232/I2C Type Controller |
|---|---|

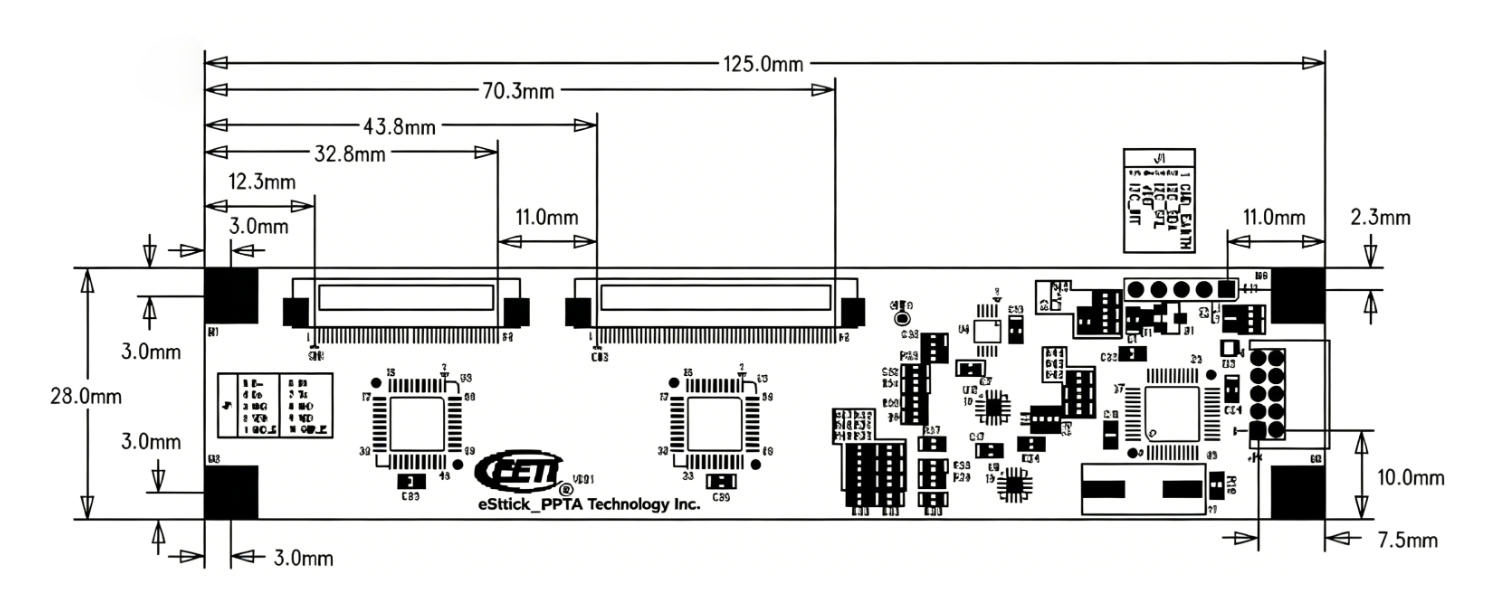

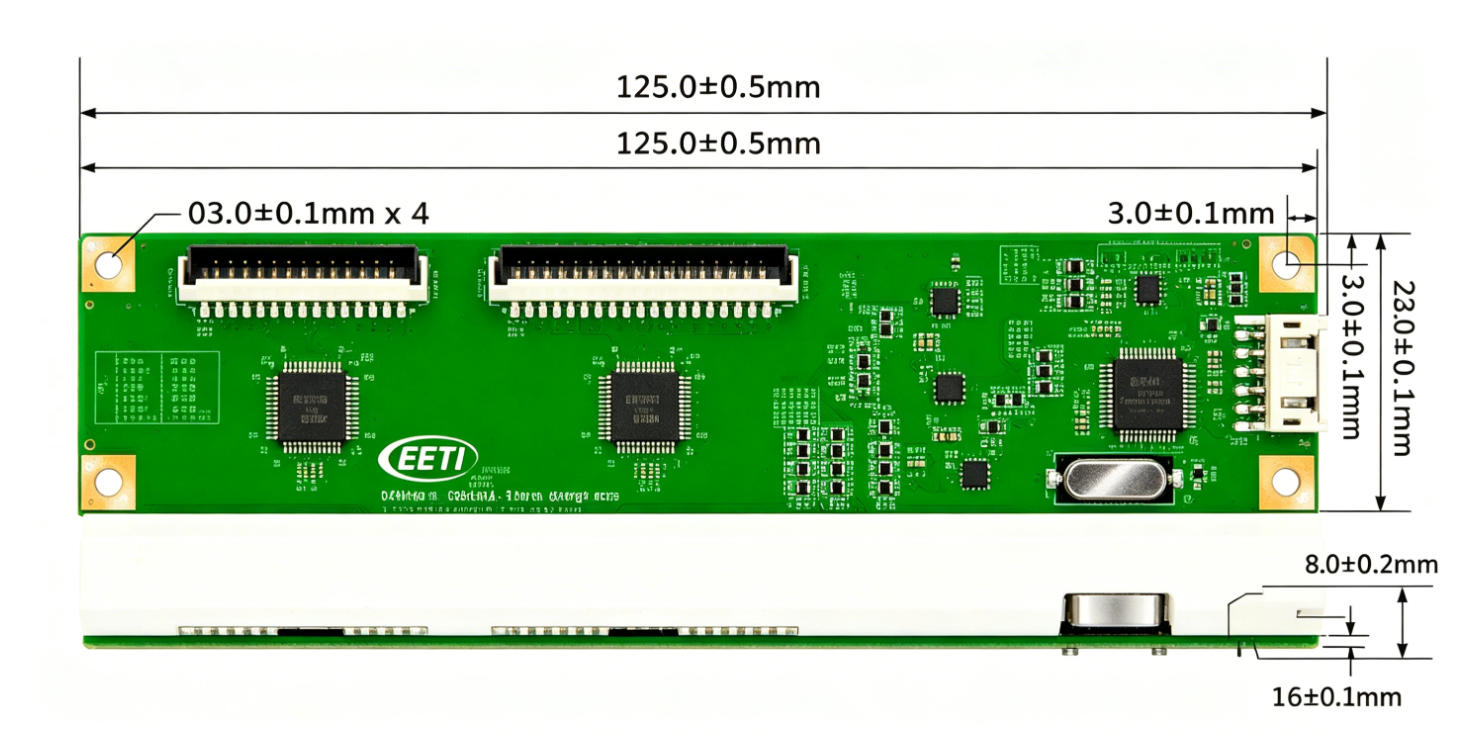

| Circuit Board Dimension | 28mm x 125mm |
| Channels of Panel | Max. X:52 Y:40 channels |
| Input Voltage | 3.5V~5.5V. Typical 5V. |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃, RH Non-condensing |
| Linearity (Note 1) |
Line drawing accuracy : 1pt +/- 1mm offset /10mm Line drawing accuracy : 2pt +/- 2mm offset /10mm Touch (point) accuracy : 1pt +/- 2.5mm Touch (point) accuracy : 2pt +/- 5.0mm Refer to Windows 7 Logo regulation |
| Interface | USB: 1.1 Full Speed RS232: No parity,8 data bits,1 stop bit, baud rate 57600bps I2C:100K/400K Hz |
| Resolution | 2048 × 2048 resolution |
| Power consumption(mA) | Active Mode : Max 50 mA Idle Mode : 5mA Sleep Mode :0.5mA |
| Report rate(points/sec) | Single touch : Typ.200 Hz Dual touch : Typ.120 Hz 4 point touch: Typ.60 Hz |
| Response time | Max. 20 ms |
Note 1: Channel pitch should be 4.8mm-6mm
Note 2: Report rate will vary by channel number, cover thickness and other parameters
Product Package:
(1) PCAP Controller Board
(2) Y-Cable
(3) USB cable

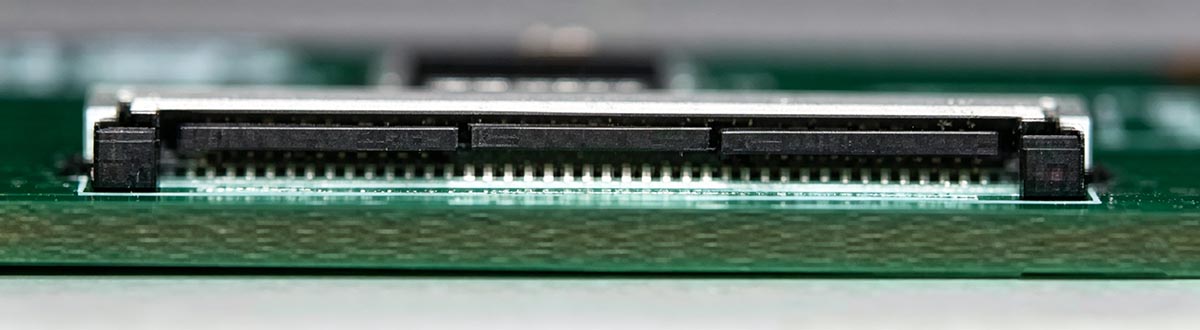

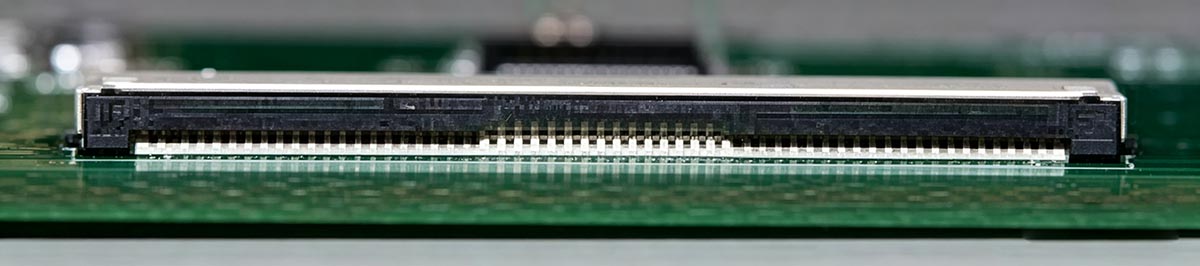

FPC Connector Pin Assignment:

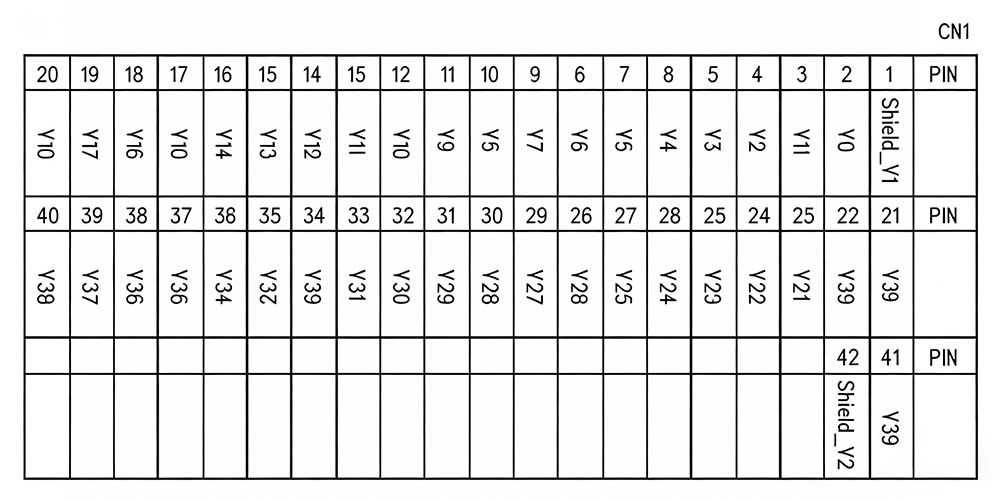

✦ CN1 Connector:

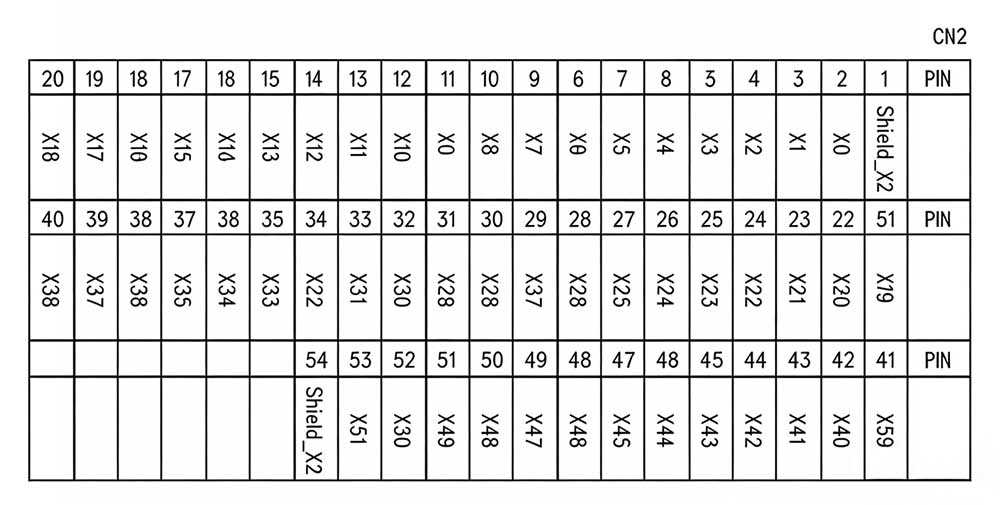

✦ CN2 Connector:
✦ USB/RS232 Combo Connector Pin Assignment:
✦ USB&RS232 & I2C interface:
✦ I2C interface:
