eGalax_eMPIA launched touch control board to meet latest Restriction of Hazardous Substances (RoHS) Directive. This touch panel controller provides the optimistic performance of your projected capacitive touch panels. It communicates with PC system directly through USB/UART/I2C connector. You can see how superior the design is in sensitivity、accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following.
| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 7, Vista, XP/2000, 9x/ME Windows CE 2.12/3.0/.net/5.0/6.0 Windows Embedded Windows XP Tablet PC edition |
USB/RS232 |
| Linux | Mandrake (Mandrake 9.1/9.2/10, Mandriva 2005, Mandriva 2006), Red Hat (7.3/8.0/9.0), Fedora (Core I/II/III/IV/V/VI), Yellow Dog (3.X) , SuSE (9.2/9.3/10/10.1), Ubuntu (5.1/6.06), Debian (3.1, Kernel 2.4.x/2.6.x) |
USB/RS232/I2C (up to Kernel 2.6.x) |
| Android / Moblin / Meego | Android 4.0, Google Moblin V2, Intel Meego | USB/RS232/I2C |
| Mac | Mac OS9, Mac OS X (IBM, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
| Parameter | USB/RS232/I2C Type Controller |
|---|---|

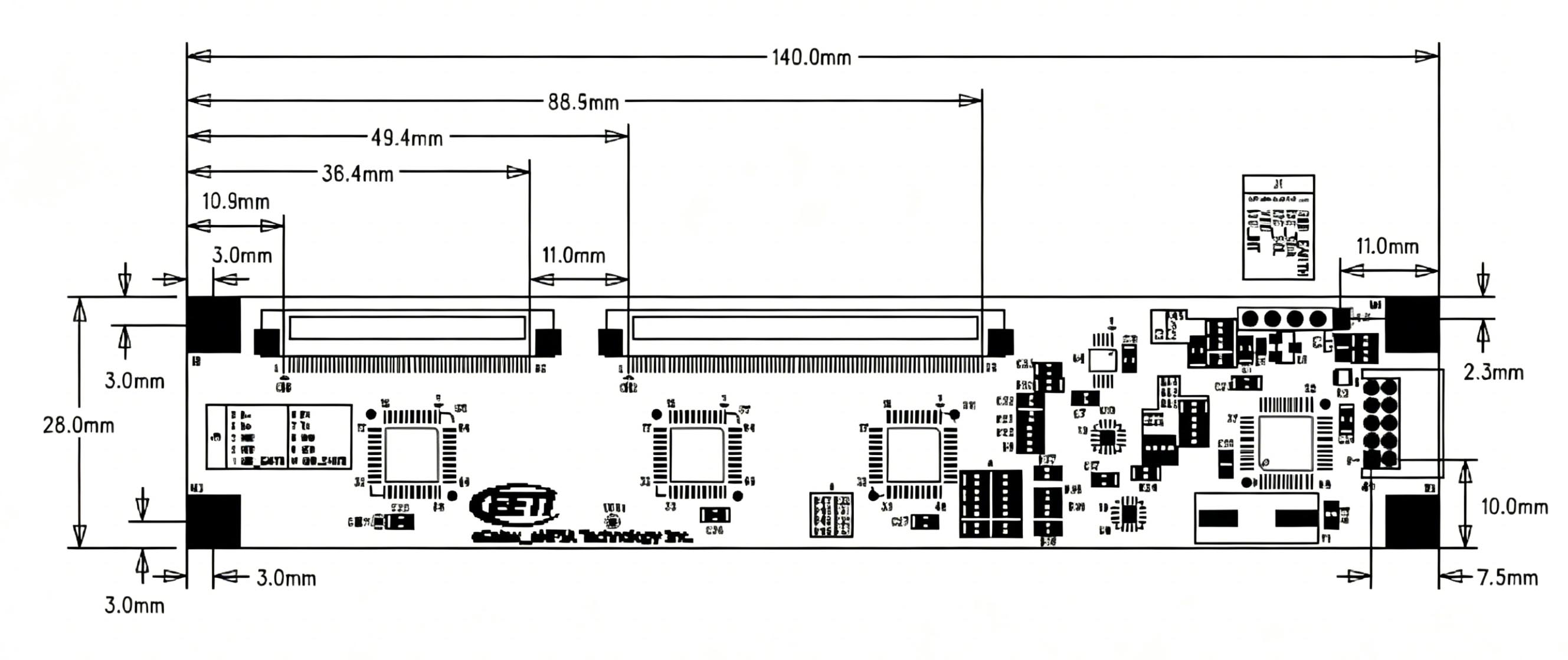

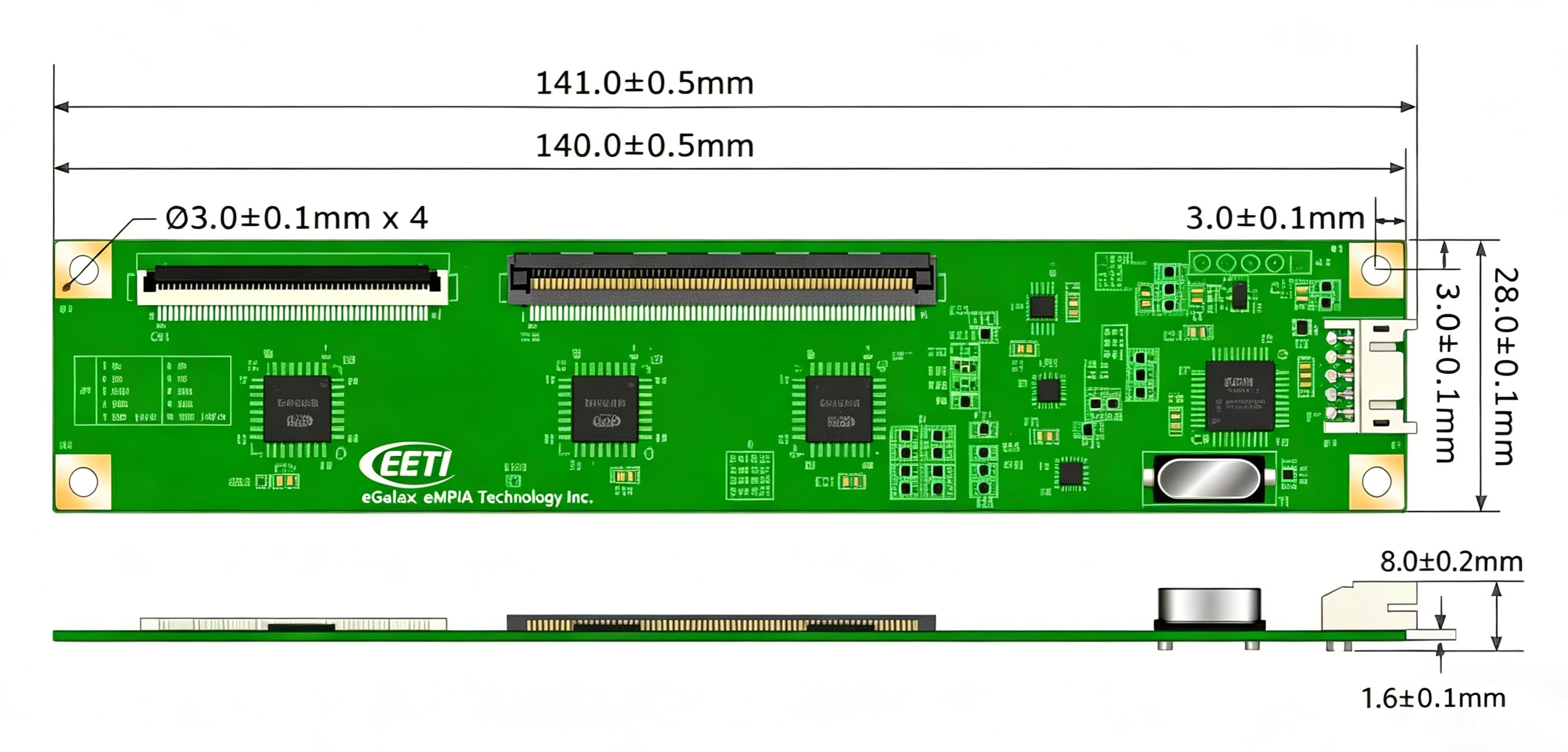

| Circuit Board Dimension | 28mm x 140mm |
| Channels of Panel | Max. X:78 Y:44 channels |
| Input Voltage | 3.5V~5.5V. Typical 5V. |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃, RH Non-condensing |
| Linearity (Note 1) |
Line drawing accuracy : 1pt +/- 1mm offset /10mm Line drawing accuracy : 2pt +/- 2mm offset /10mm Touch (point) accuracy : 1pt +/- 2.5mm Touch (point) accuracy : 2pt +/- 5.0mm Refer to Windows 7 Logo regulation |
| Interface | USB: 1.1 Full Speed RS232: No parity,8 data bits,1 stop bit, baud rate 57600bps I2C:100K/400K Hz |
| Resolution | 2048 × 2048 resolution |
| Power consumption(mA) | Active Mode : Max 50 mA Idle Mode : 5mA Sleep Mode :0.5mA |
| Report rate(points/sec) (Note 2) |
Single touch : Typ.200 Hz Dual touch : Typ.120 Hz 4 point touch: Typ.60 Hz |
| Response time | Max. 20 ms |
Note 1: Channel pitch should be 4.8mm-6mm
Note 2: Report rate will vary by channel number, cover thickness and other parameters
Product Package:
(1) PCAP Controller Board
(2) Y-Cable
(3) USB cable or RS232 cable
FPC Connector Pin Assignment:

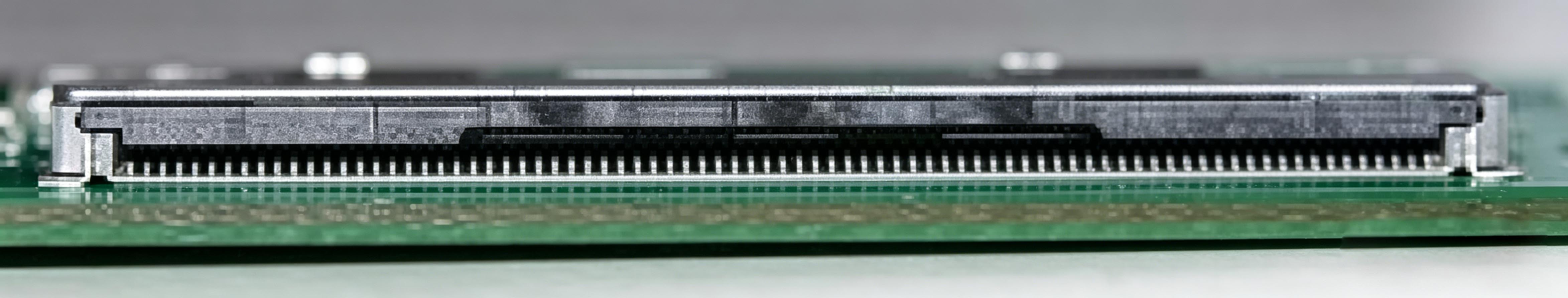

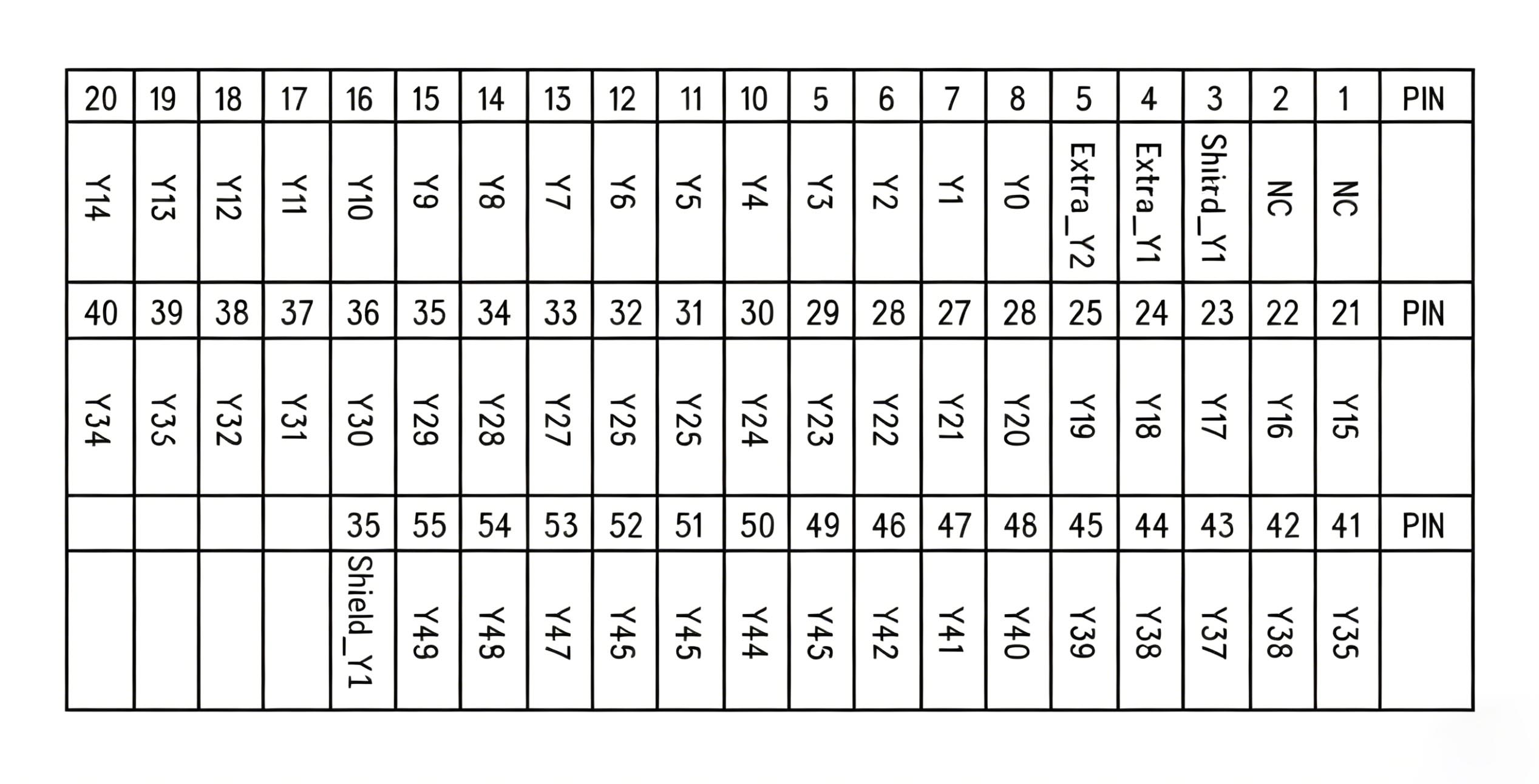

✦ CN1 Connector:

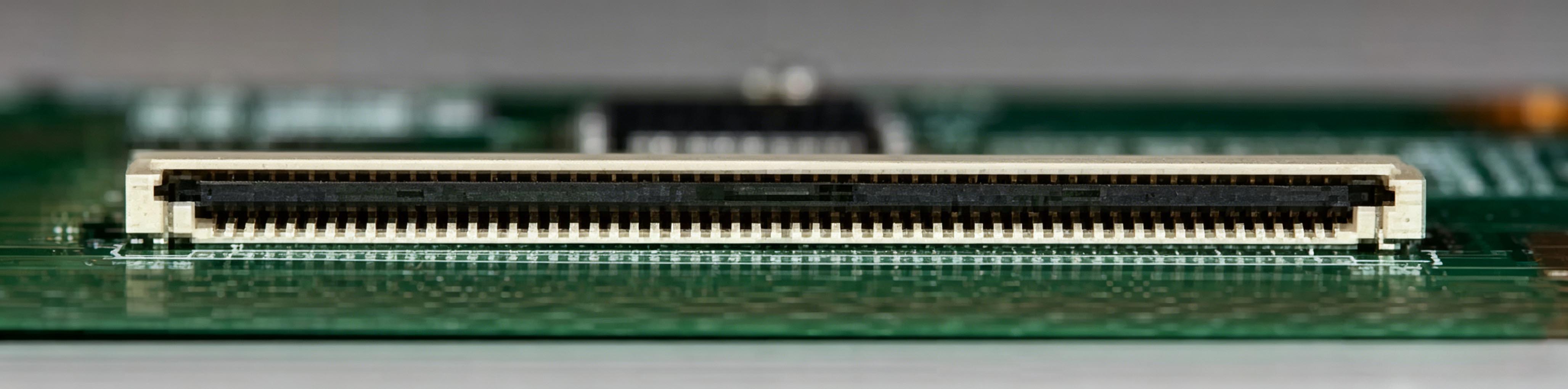

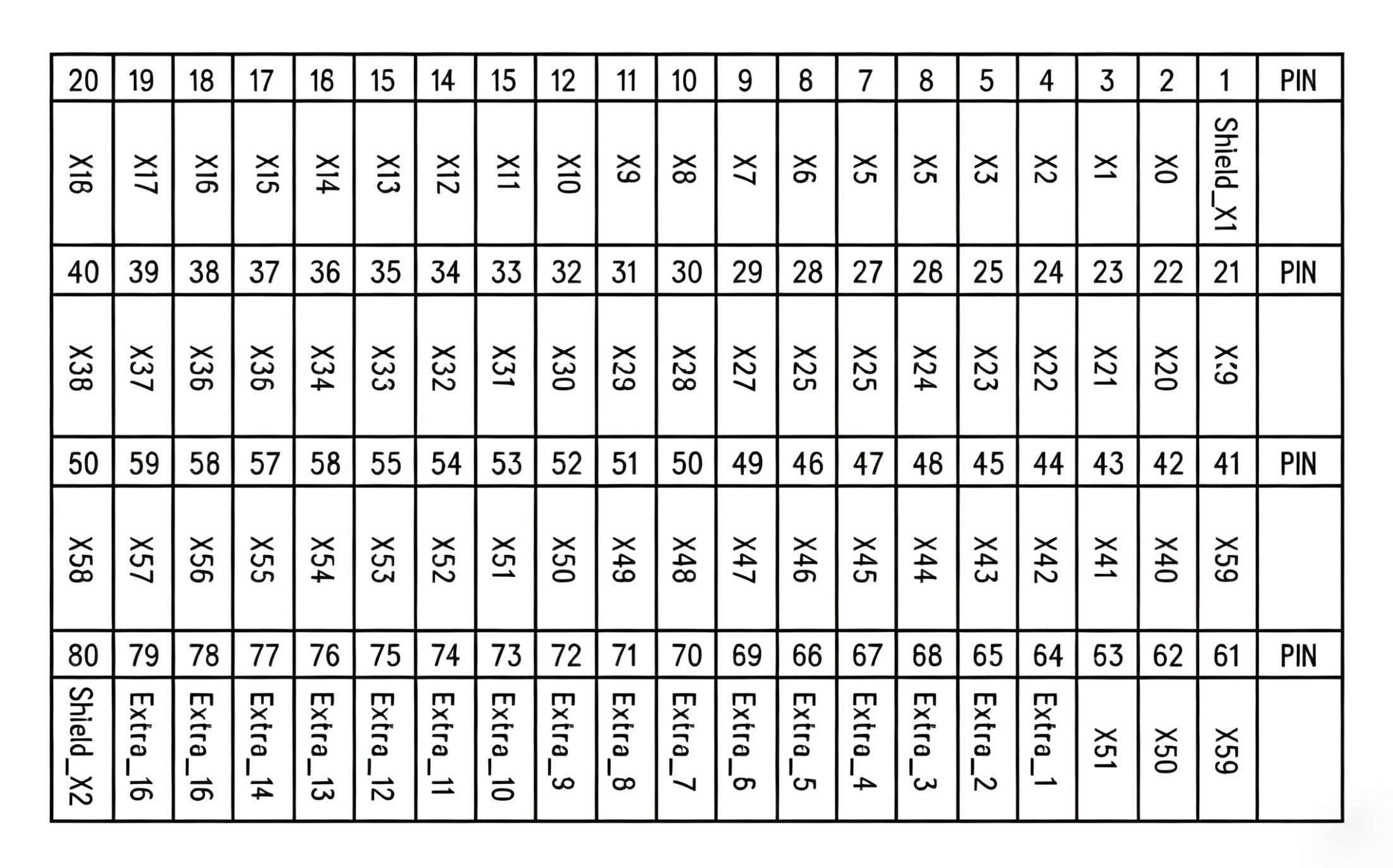

✦ CN2 Connector:
✦ USB/RS232 Combo Connector Pin Assignment:
✦ USB&RS232 & I2C interface:

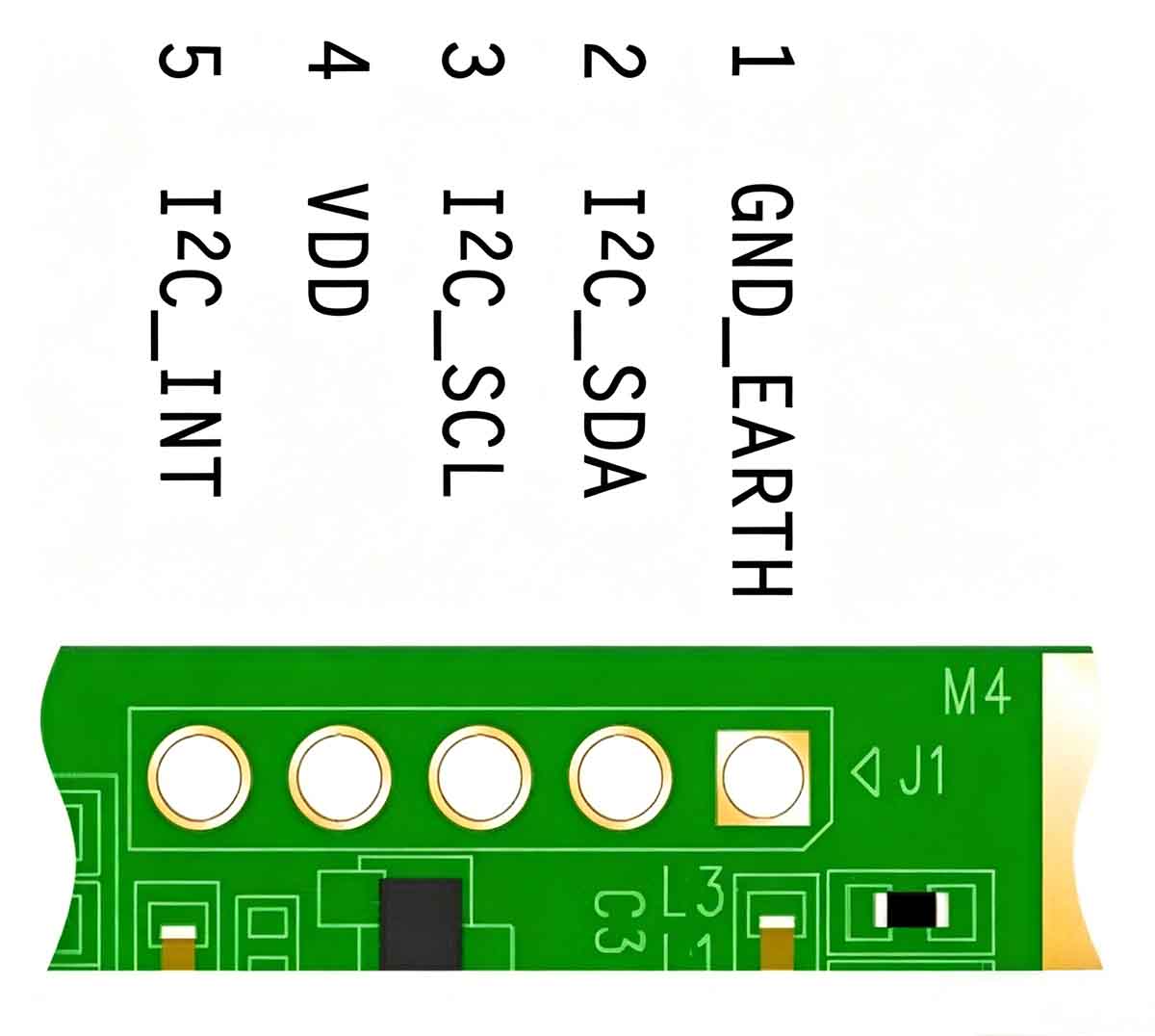

✦ I2C interface:
