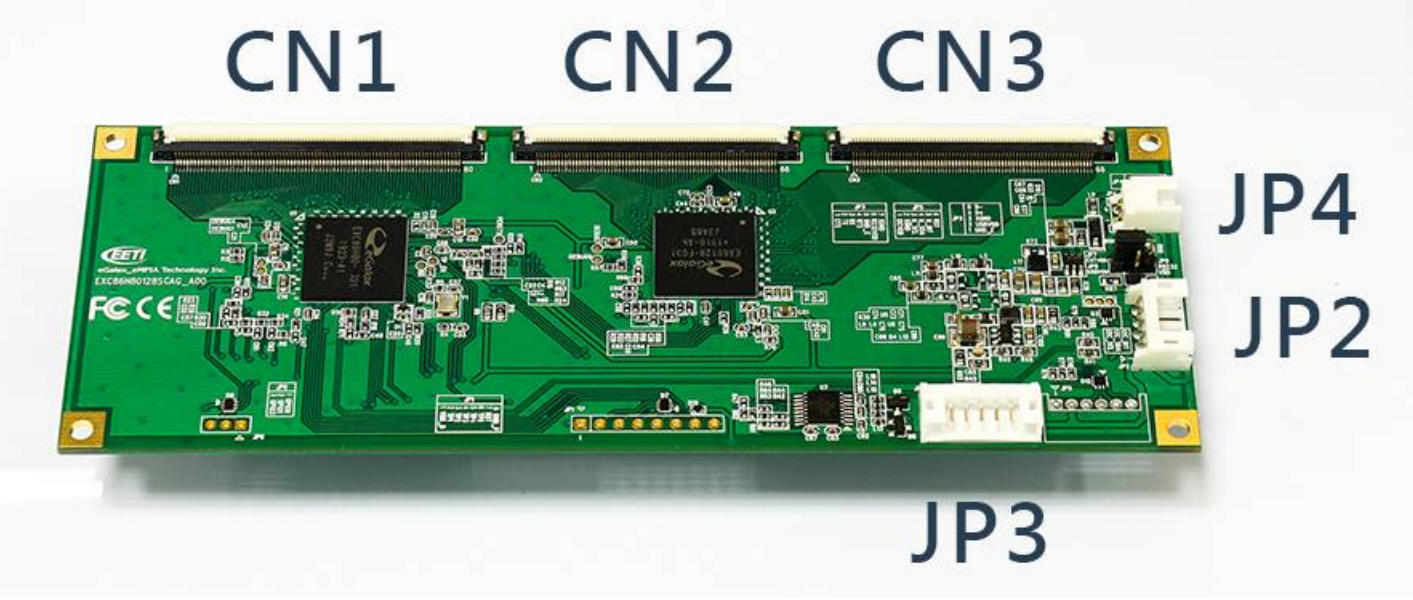

The EXC86H80128SCAG is a projected capacitive (PCAP) touch screen controller that consists of a high performance MCU
EXC86H80 and EX60128 slave chip. By integrating the advantages of self and mutual capacitance sensing technology, built-in high driving voltage transceiver and a powerful MCU, this controller incorporate most desired features to boost the noise immunity, and support high demand applications in most categories.
| OS | Version | Interfaces |
|---|---|---|
| Windows | Windows 10 IOT / Windows 10 / Windows 8 / Windows 7 / Windows Vista / Windows 2000 / Windows XP |
USB / RS232 |
| Win CE | Win Embedded Compact 2013 / Win Embedded Compact 7 / WinCE 6 / WinCE.Net |
USB / RS232 |
| Linux | CentOS, Debian, Fedora, Gentoo, Mandrake (Mandriva), Meego, Red Hat, Slackware, SuSE (OpenSuSE), Ubuntu (Xubuntu) and Yellow Dog etc. Support most 32/64 bit Linux distribution versions, including Kernel 2.4.x / 2.6.x / 3.x.x / 4.x.x |
USB / RS232 |
| Android | Android 2.3 to 9 | USB |
| Mac | OS 9 to 10.12 | USB |
| QNX | RTOS V6.3 to V6.6 | USB |
| Circuit Board Dimension | 55mm x 152mm x 8.4mm |
| Channels of Panel | Max.Tx:80 Rx:128 channels (include shielding pin) |
| Input Voltage | 5V~12V |
| Operating Temperature | -40 to 85 ℃ |
| Storage Temperature | -40 to 90 ℃ |
| Relative Humidity | 95% at 60 ℃, RH Non-condensing |
| Accuracy and Linearity¹ | <= +/- 1mm (outside 3.5mm from edges) <= +/- 2mm (within 3.5mm of all edges) (Refer to Win10 Touch Requirement) |
| Interface | USB: 1.1 Full Speed RS232: No parity,8 data bits,1 stop bit, baud rate 115200bps, support hardware flow control |
| Resolution | 16384 x 16384 resolution |
| Power consumption (mA) | Active Mode: < 250mA |
| Report rate² (points/sec) | ＞100 Hz |
| Response time | Average < 25 ms |
1、Requires a corresponding touch sensor design. (Sensor pitch<=5.5mm)
2、Report rate is varied by touch sensor channel number, cover thickness, system condition, and other parameters
Disclaimer:
1、 For the product requires Windows logo certification (WHQL), please contact your supplier for a proper designed touch
module.
2、 Special input performance can be influenced depends on module condition, contact material and volume, subjects
including through thick glass touch, gloved-hand input, water resistance and noise immunity etc.
3、 Special features require to be pre-defined and pre-tuned during project development.
Accessory Cables:
1、 ETP-CB-SXU00, External USB cable
2、 ETP-CB-SXU01, Internal USB cable
3、 ETP-CB-SXR17 , External RS232 cable

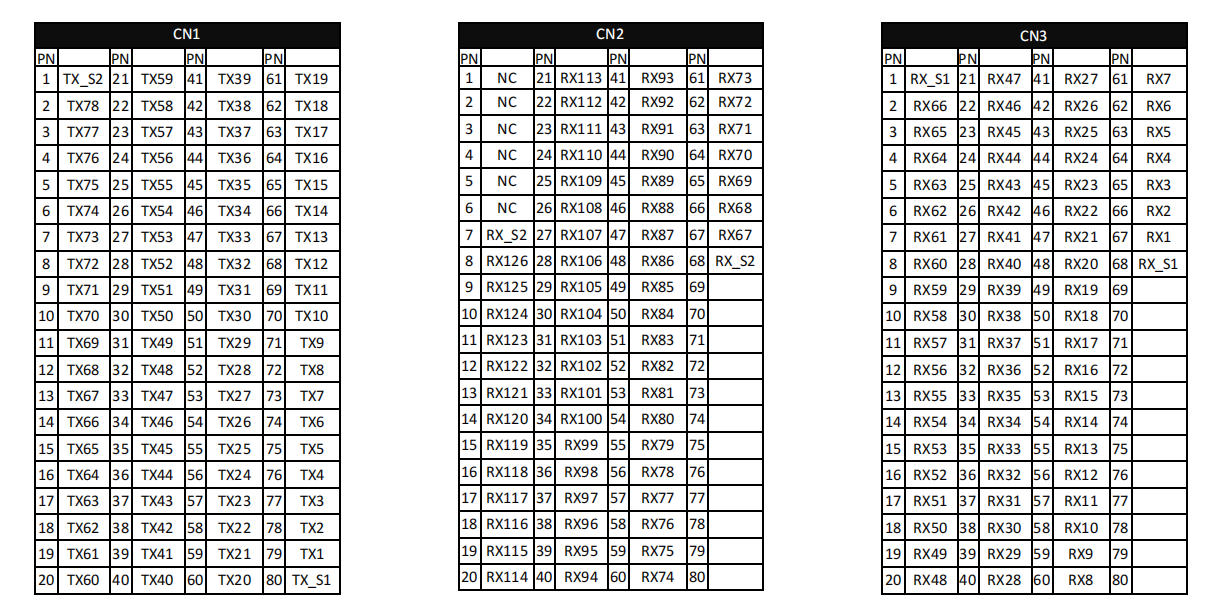

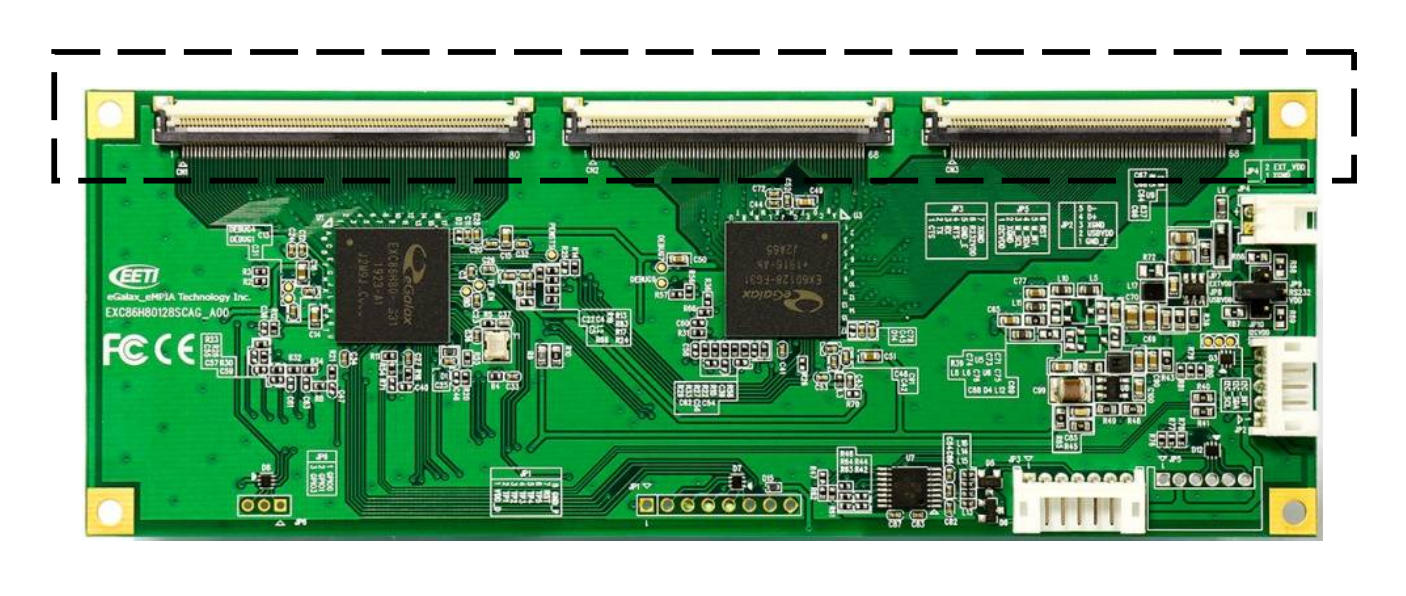

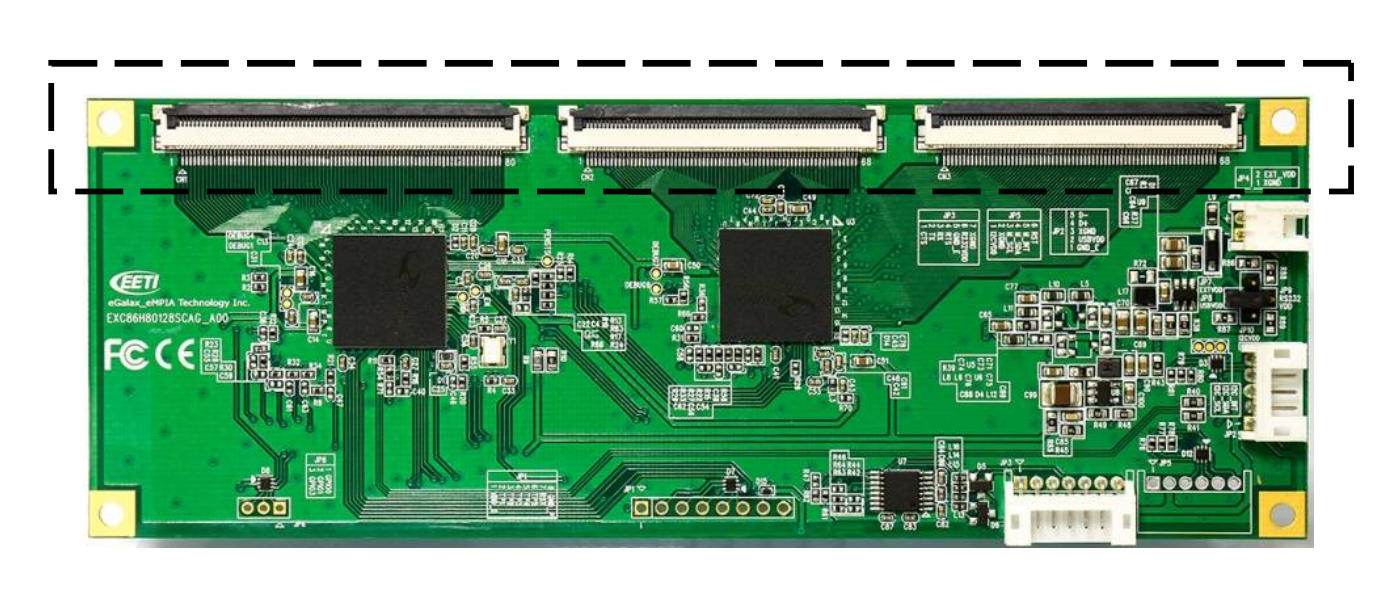

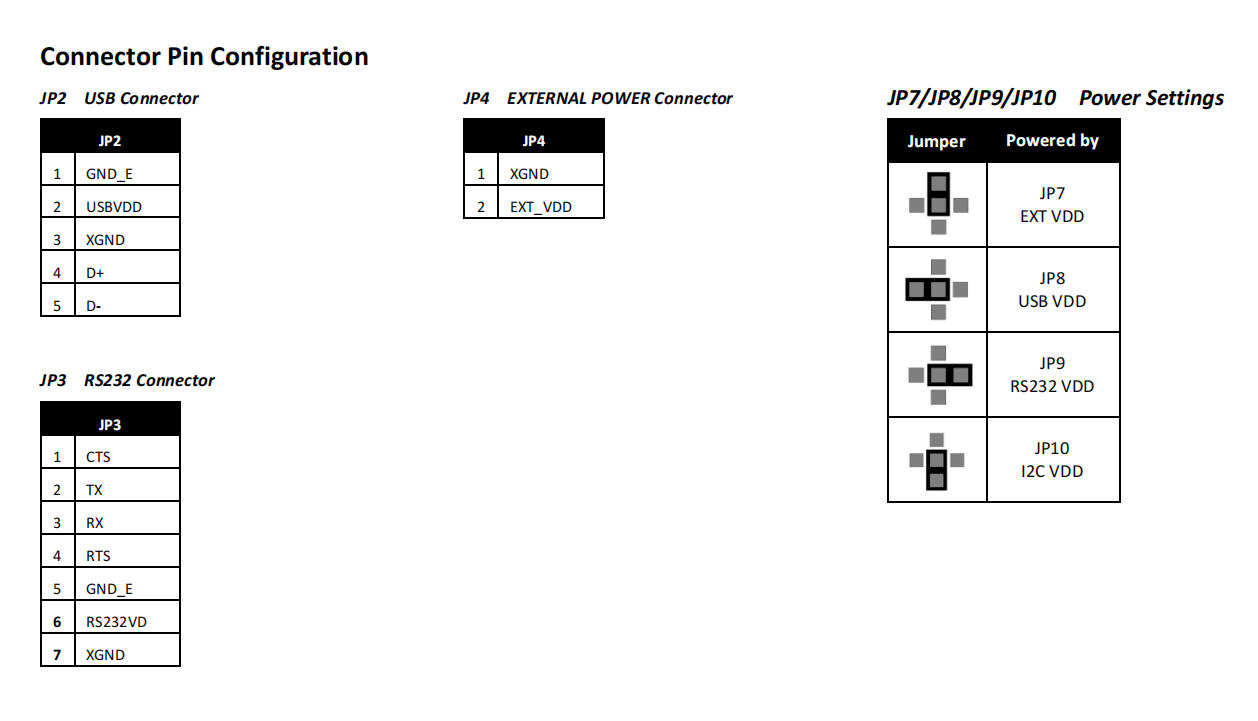

FPC Pin Description:

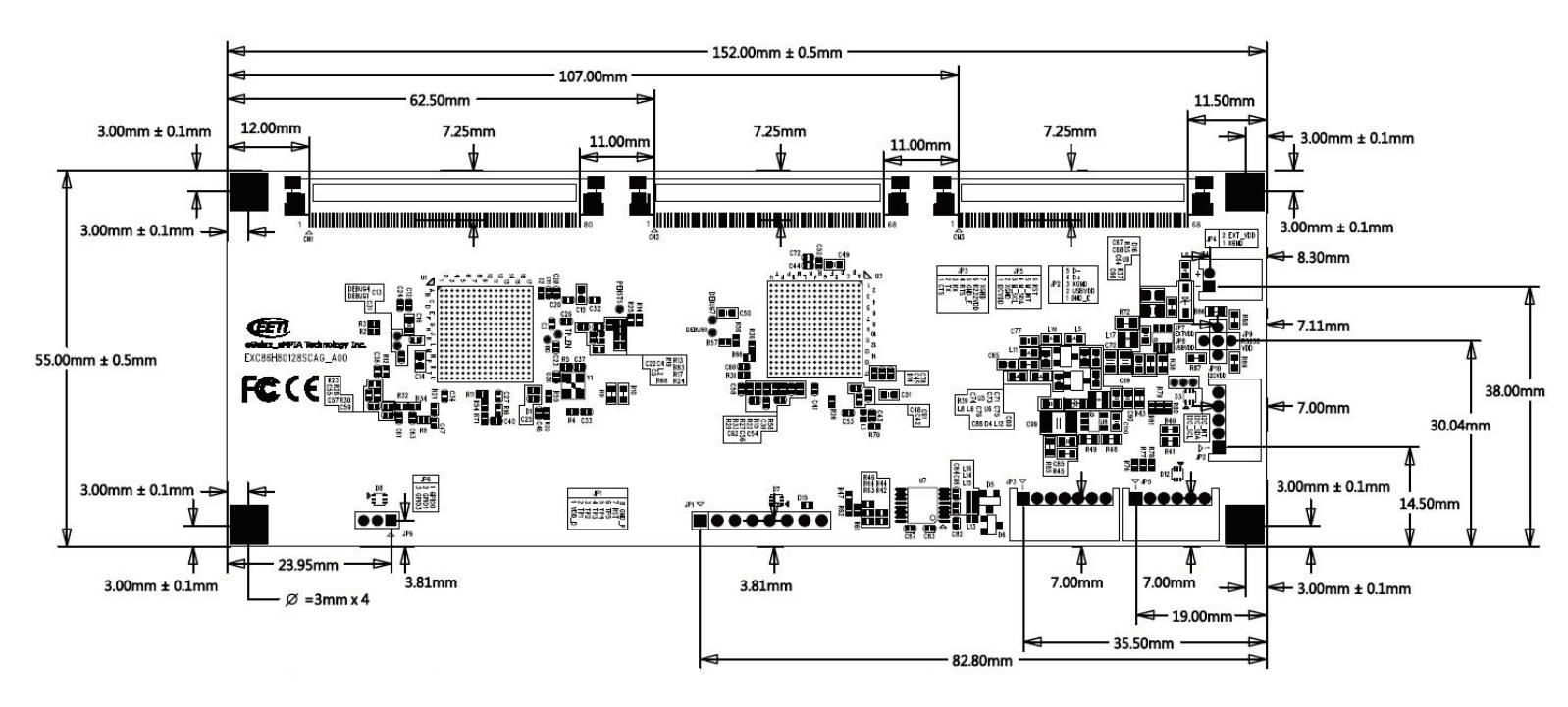

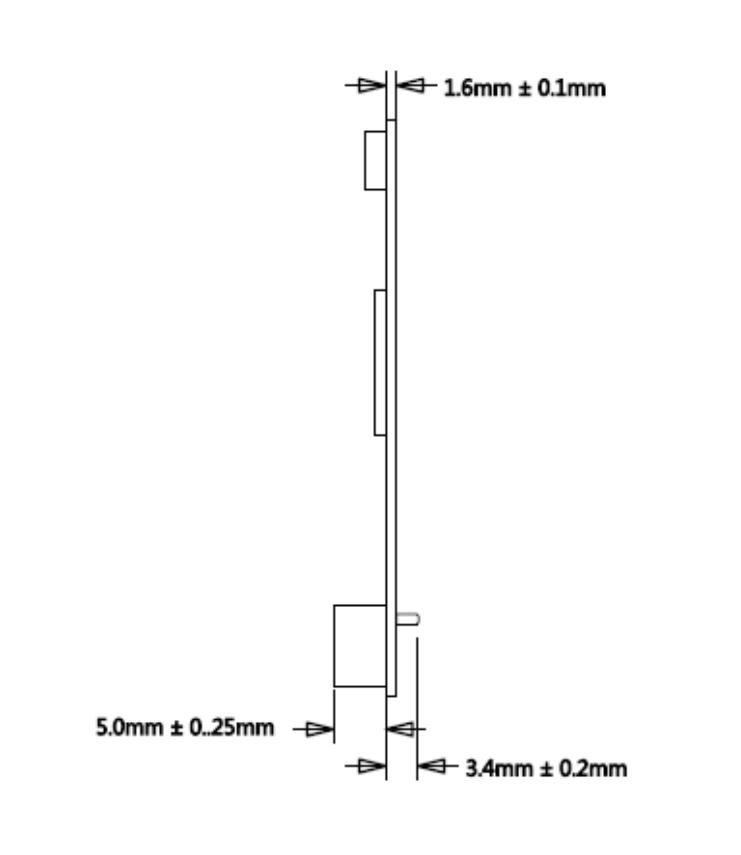

Mechanical Specification:
Packing information:
| Model | PCBA weight (g) | PCBA size(mm) |
|---|---|---|
| ETP-MB-EXC86H80128SCAG | 35 | 152 x 55 x 8.4 |

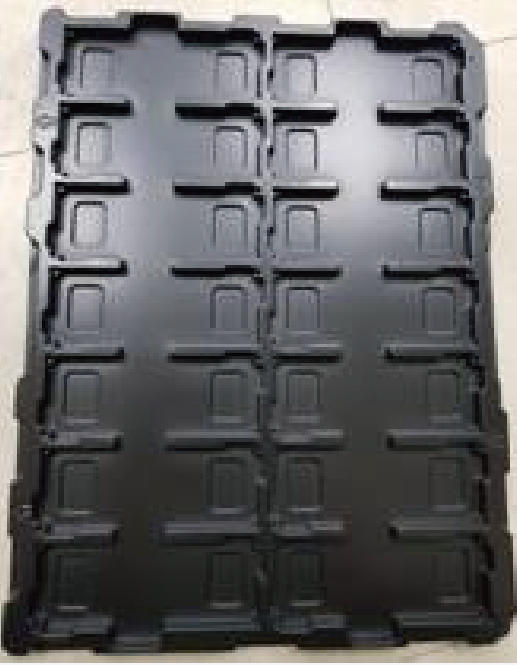

| Tray size(mm) | Tray Weight (g) | Controllers in a Tray |
|---|---|---|
| 483x365x20 | 151 | 14 |
| Model | PCBA weight (g) | PCBA size(mm) |
|---|---|---|
| ETP-MB-EXC86H80128SCAG | 35 | 152 x 55 x 8.4 |
| Box size(mm) | Box weight(g) | Tray layer | Total PCBA controllers in a Box(pcs) | Box with controllers total weight(g) |
|---|---|---|---|---|
| 500x376x342 | 1170 | Max. 26 Tray layers (2 Tray layers for only Protection, so max. 24 Tray with controllers) | 14X24=336 | 16700 |

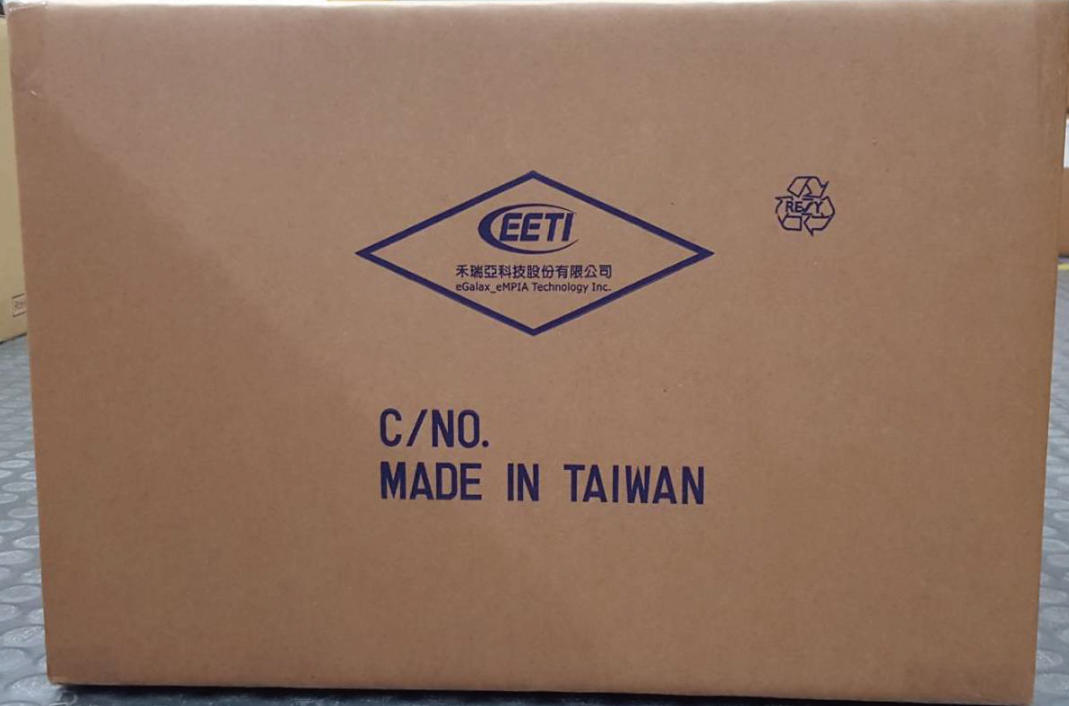

| Tray | Box |
|---|---|
 |
 |
