Touchkit TK-UL01 For the realization of touch screen with the customer between the host signal conversion, to achieve this through a virtual mouse and keyboard to guest host operation.
| Items | Value |
|---|---|
| Operating temperature & Humidity | -25℃-+75℃ |
| Storage temperature & Humidity | -40℃-+90℃ |
| Relative Humidity | 90% RH at 60℃ |
| Interface to Host/Master | USB ; I2C |
| Supply Voltage | USB,5V DC ; I2C,3.3V |
| Power consumption (mA) | Active Mode:<30mA,Idle Mode:10mA |
| Report rate | 10Points Touch:100Hz |
| Oscillator Frequency | 12MHz |
| Channels of Panel | Max. TX:46, RX:78 channels |
| Support Points | 1-10 Points |
| Linearity | 1PT:+/- 1.5mm,10PT:+/- 2.5mm |
| Response Time | <10ms |
| Max. operating frequency | 100 MHz |
| Operating system | Win 7,Win 8, XP,Android,Linux…… |
✦ Pin Assignments / PIN ✦
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | DM | Signal | USB D- Signal |
| 2 | DP | Signal | USB D+ Signal |
| 3 | GND | GND | Ground |
| 4 | VCC | USB 5VDC | Supply Voltage |
| 5 | GND | GND | Ground |

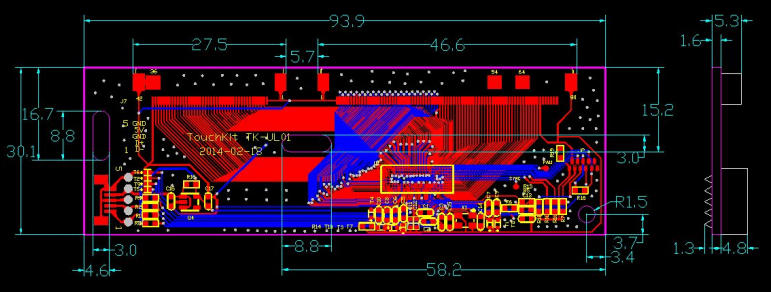

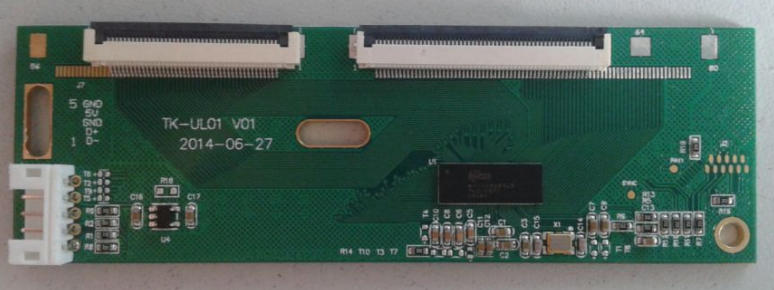

Controller:
