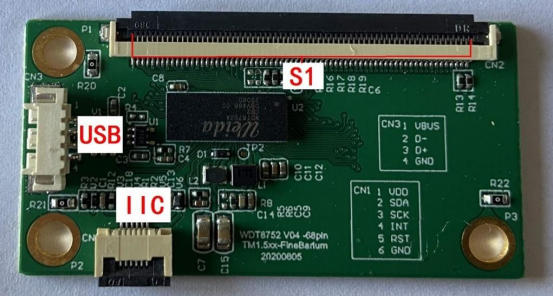

TM1.5-G-V01 is a capacitive touch control board developed based on Weida WDT8752A-CB2. It supports 41 RX channels and 23 TX channels (2 middle channels are optional, supporting up to 4323 or 4224 channels).
| System Version | Supported Operation Mode | Remarks | |
|---|---|---|---|
| Windows | Win7 | Multi-touch | - |
| Win8 | Multi-touch | - | |
| Win10 | Multi-touch | - | |
| WinXP | Single-finger mouse mode | - | |
| Android | Kernel 3.8 or above | Multi-touch | Plug and play |
| Kernel 2.6.38 - 3.8 | Multi-touch | USB VID/PID registration required | |
| Kernel below 2.6.38 | - | IB9 chip required | |
| Linux | Kernel 3.8 or above | Multi-touch | Plug and play |
| Kernel 2.6.38 - 3.8 | Multi-touch | USB VID/PID registration required | |
| Kernel below 2.6.38 | - | IB9 chip required | |
| Mac | - | Single-point + Gesture | Driver installation required |

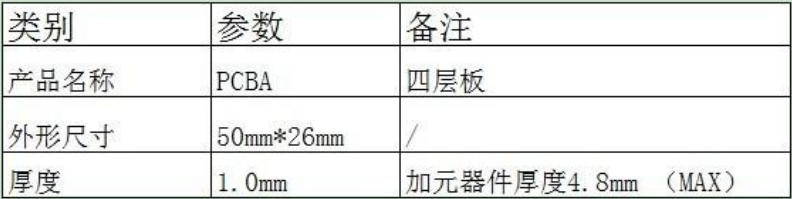

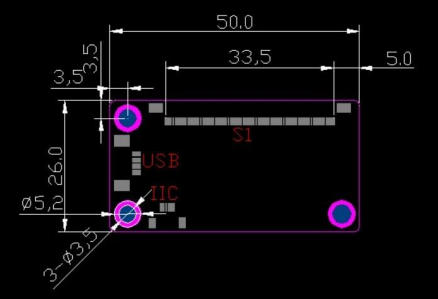

Interface Definition:

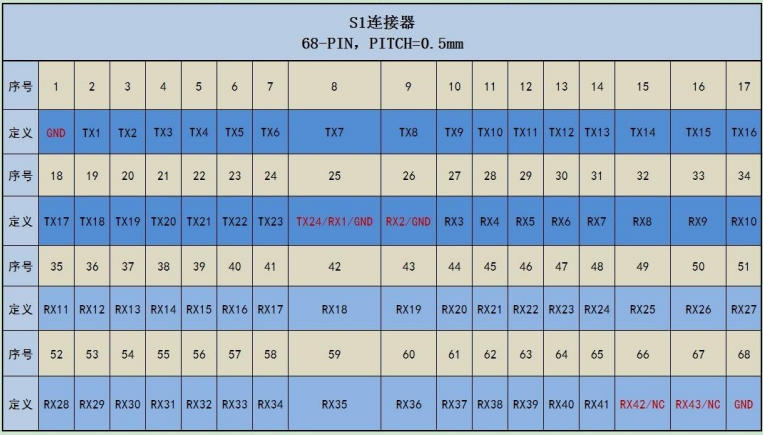

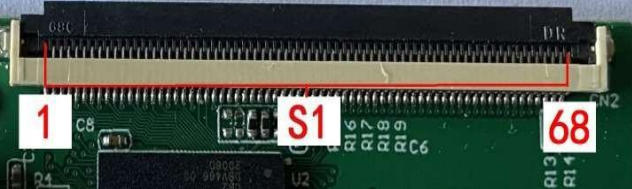

✦ S1 Connector:

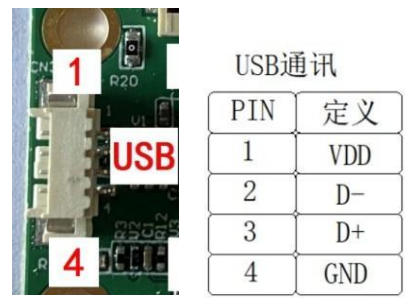

✦ USB:

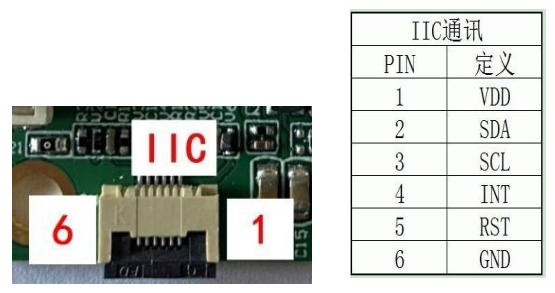

✦ IIC:
Connection Method with TP and Precautions:

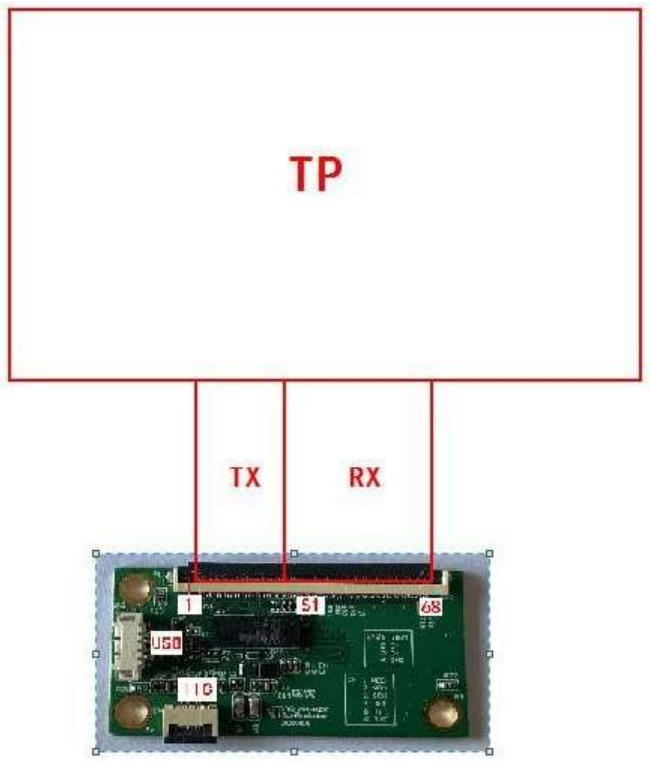

✦ Connection Method with TP:
✦ Precautions:
·Ensure the FPC cable is securely connected to the board connector before power-on!
·Disconnect the power supply before plugging or unplugging the FPC cable!
✦ Product Features:
·Supported communication protocols:
·A. USB 2.0 Full Speed
·B. IIC (compatible with RK, Allwinner, Samsung, MTK, Intel motherboards, etc.)
·Waterproof support
·Palm rejection support
·Power-on palm pressure prevention support
·Supports 6mm glass cover (requirements for TP)
·Supports Windows certification (requirements for TP design)
