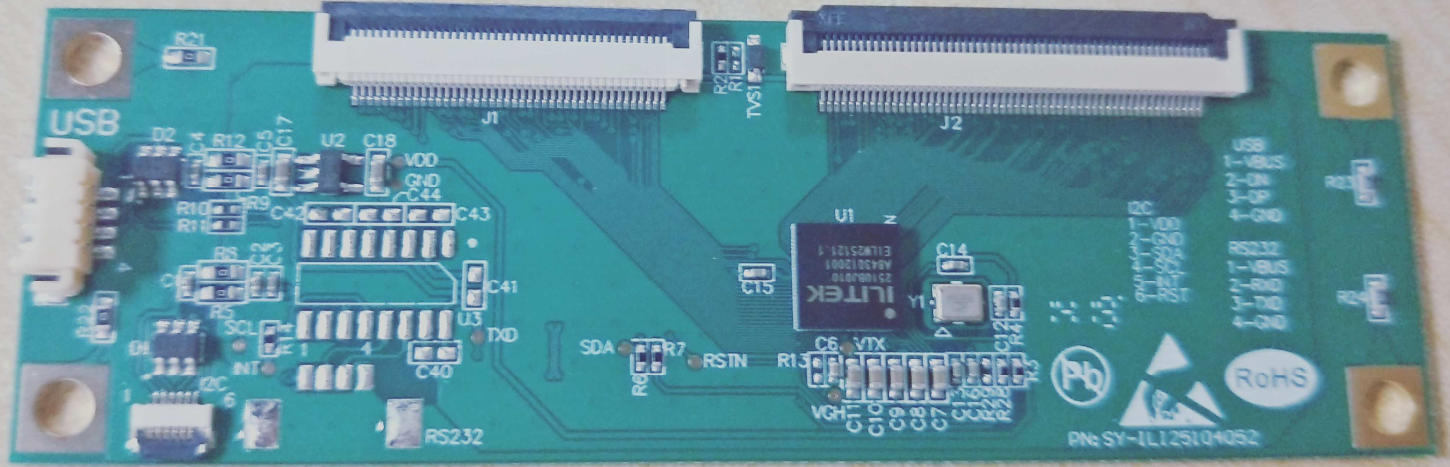

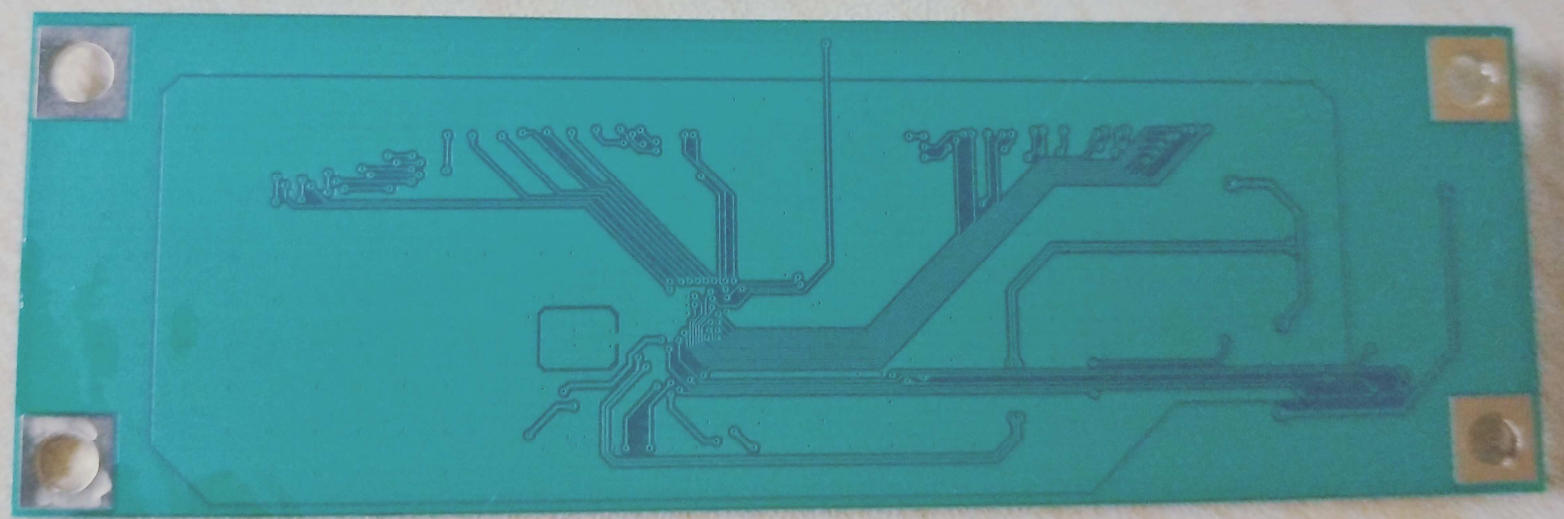

SY-ILI25104052 is a touch screen control PCBA using Ilitek capacitive touch chip ILI2510. It is designed to drive 40 channels and sense 52 channels, supporting a maximum 21.5-inch touch screen solution. It is compatible with mainstream capacitive touch structures such as GG/GFF/OGS/G1F/GF2, and is widely used in All-In-One PCs, ATMs, advertising machines, POS, HMI, industrial touch screens, etc.SY-ILI25104052 PCBA complies with the latest RoHS environmental requirements and EMC test standards.
✦ S1 Connector:
| Item | Specification | Typical System EMC Performance |
|---|---|---|
| EMI | CISPR 22, 30MHz~1GHz | Under -4dB |
| ESD | IEC 61000-4-2, Level 4 Air: +/-15kV; Contact: +/-8kV | Class B |
| RS | IEC 61000-4-3, Level 3: 10V/m | Class A |
| EFT | IEC 61000-4-4, Level 4 AC power line: 4kV; I/O port: 2kV | Class A |
| CS | IEC 61000-4-6, Level 3: 10Vrms | Class A |
PCBA Specifications:
✦ PCBA Specifications:
| Item | Specification |
|---|---|
| PCB DimensionsEMI | L: 94mm, W: 30mm, H: 4.6mm |
| Max. Supported TP Size | 21.5” |
| Drive Channels (TX) | 40 channels |
| Sense Channels (RX) | 52 channels |
| Communication Interface | USB: full speed (12Mbps); IIC: 400kHz |
| Input Voltage | USB: 5V +/-10%; IIC: 3.3V |
| Operating Temperature | -20℃ ~ 60℃, RH 20% (min) ~ 90% (max) |
| Storage Temperature | 5℃ ~ 40℃, RH 20% (min) ~ 70% (max) |
| Supported Resolution | X: 16384, Y: 9600 |
| Max. Operating Current | Active Mode: 120mA (max) |

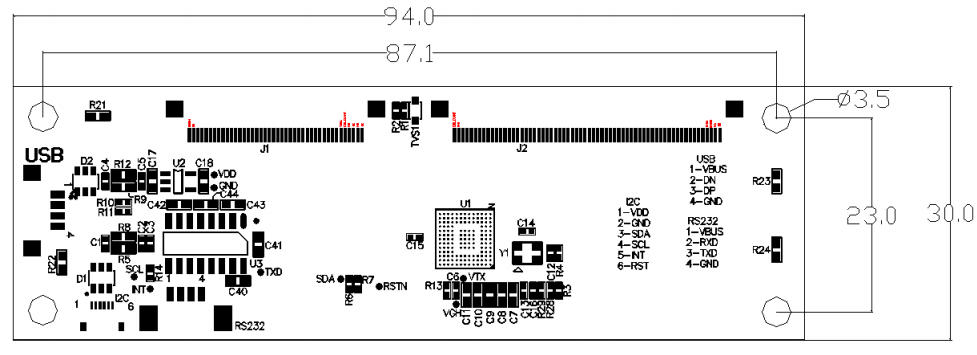

✦ PCBA Dimensions:

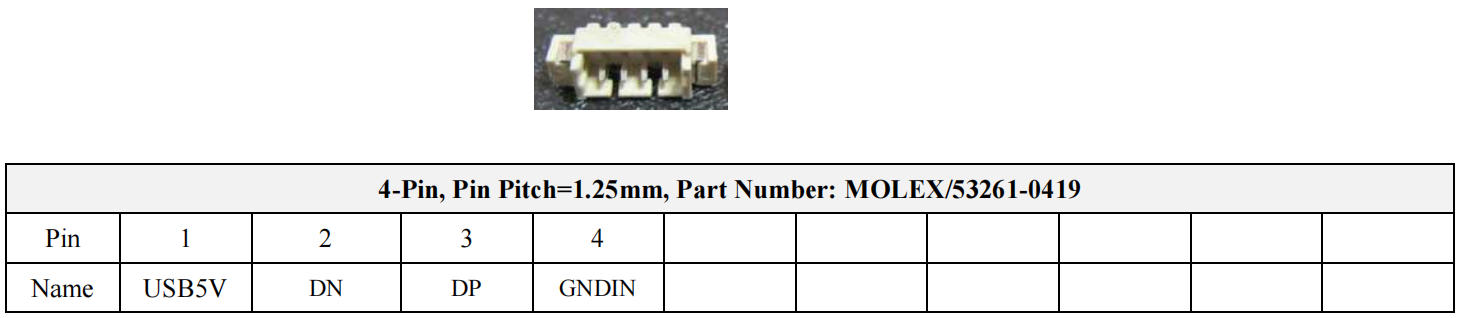

✦ USB Connector Pin Definition:

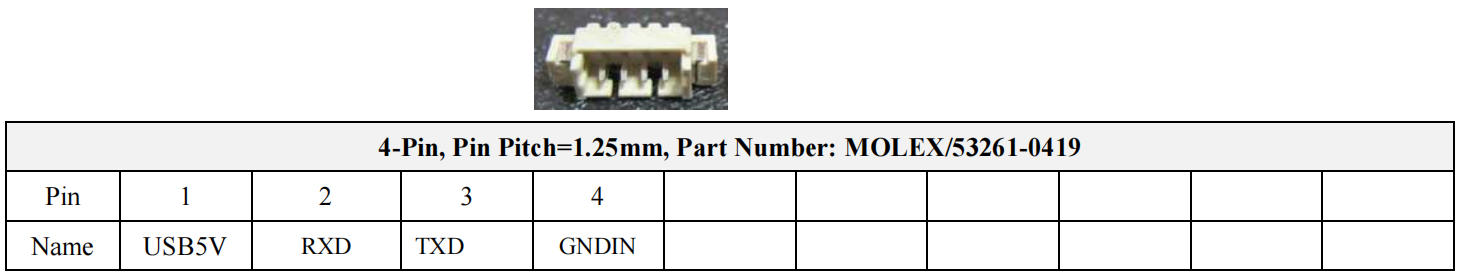

✦ RS232 Connector Pin Definition:

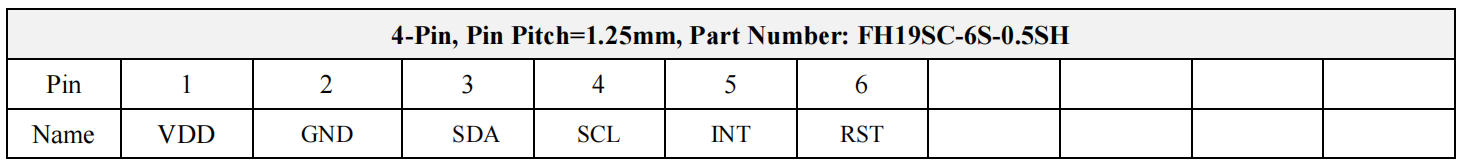

✦ IIC Connector Pin Definition:

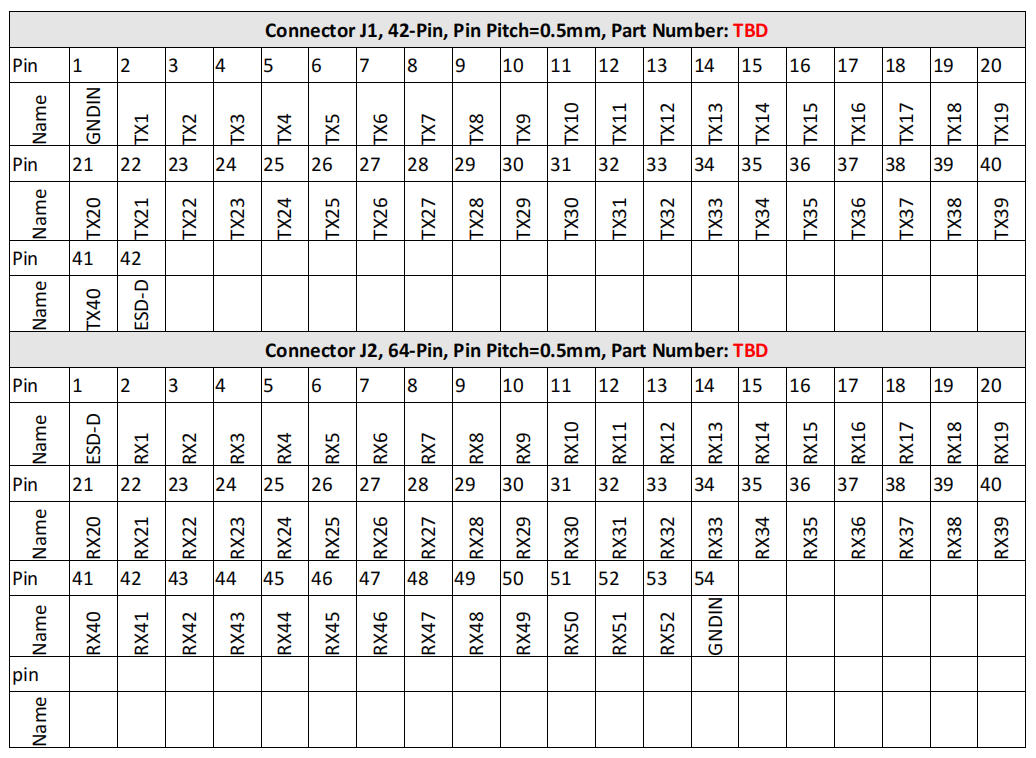

✦ FPC Connector Pin Definition:
lectrical Characteristics:

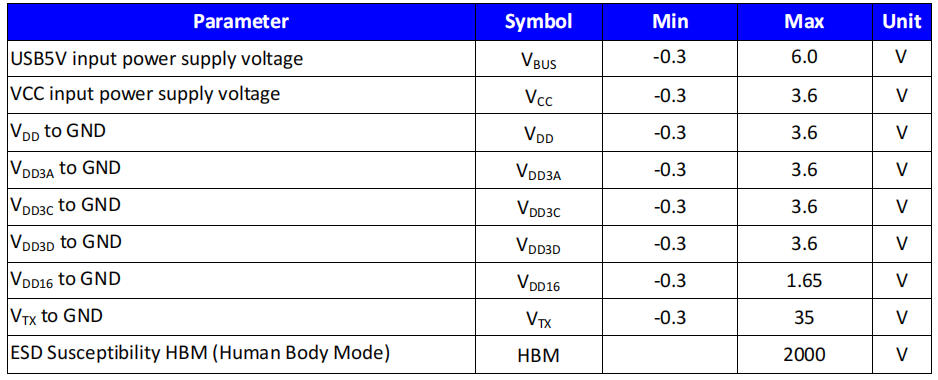

✦ Absolute Maximum Ratings:

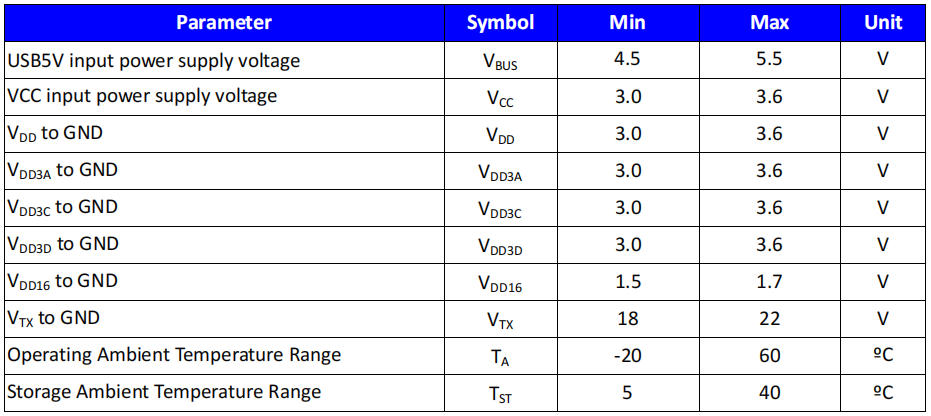

✦ Recommended Operating Conditions:

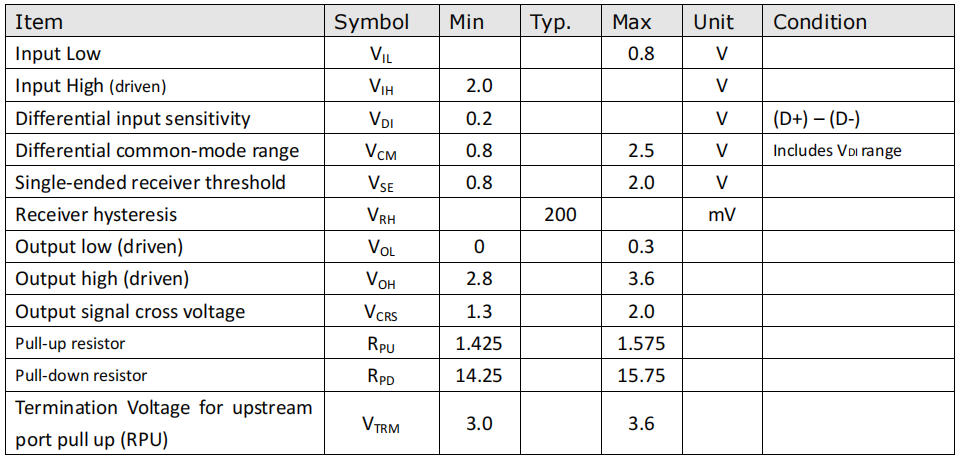

✦ USB DC Characteristics:
✦ Crystal Characteristics:

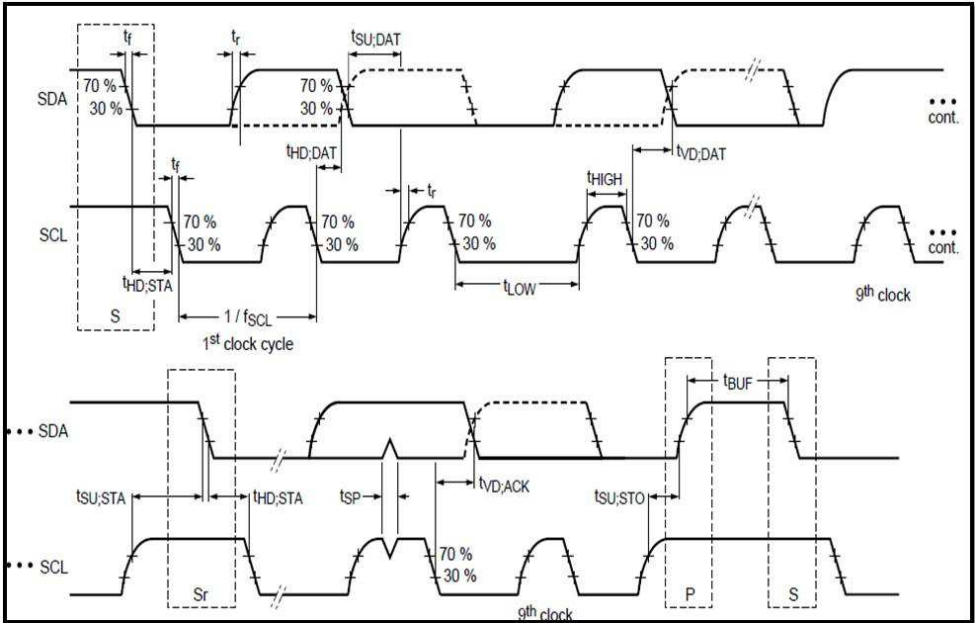

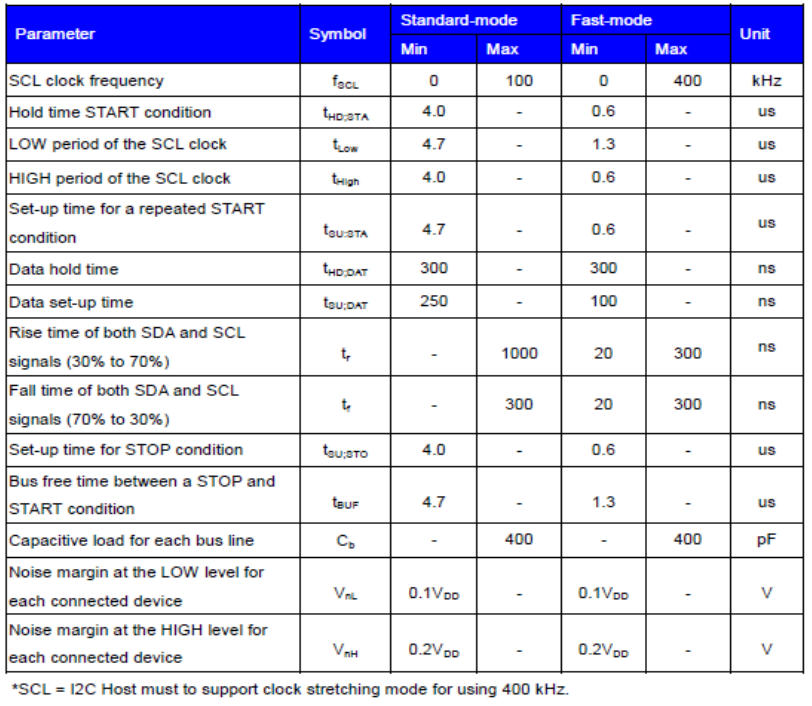

✦ I2C AC Characteristics:
✦ I2C DC Characteristics:
Power Sequencing:

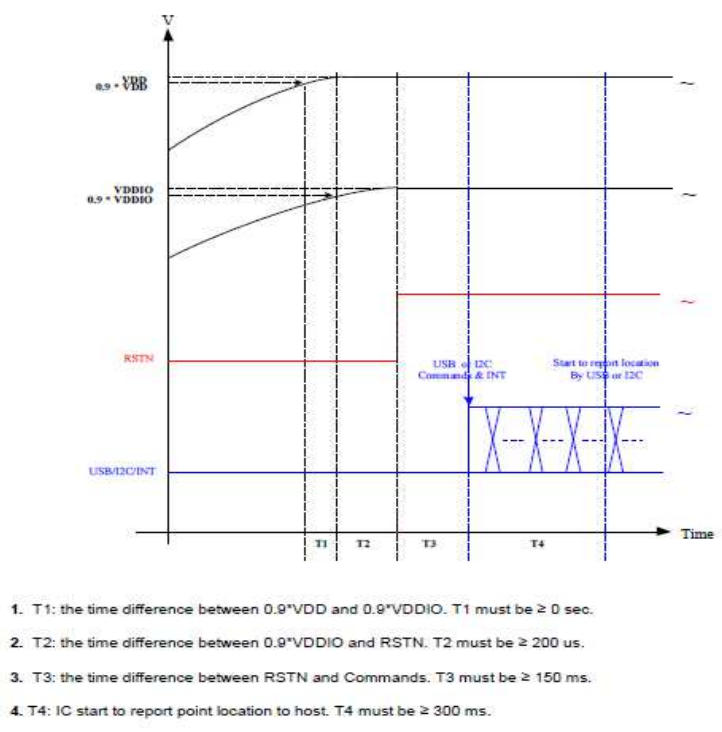

✦ Power-On Sequencing:

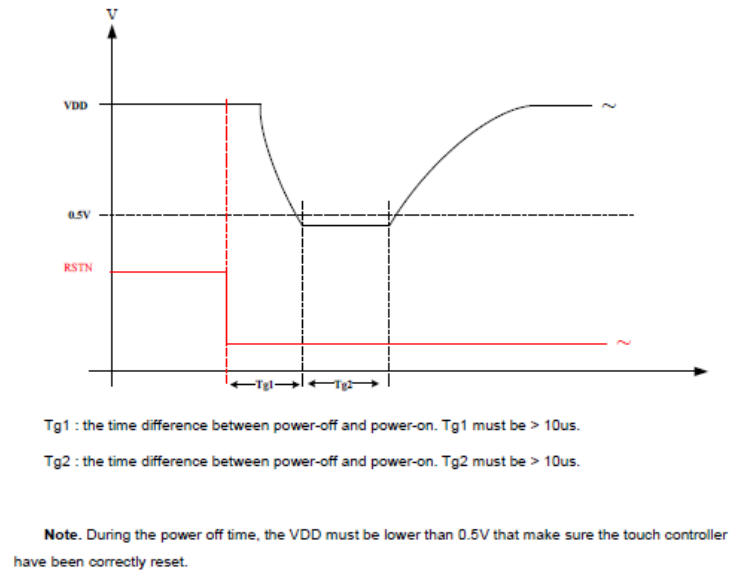

✦ Power-Off to Power-On Sequencing:
