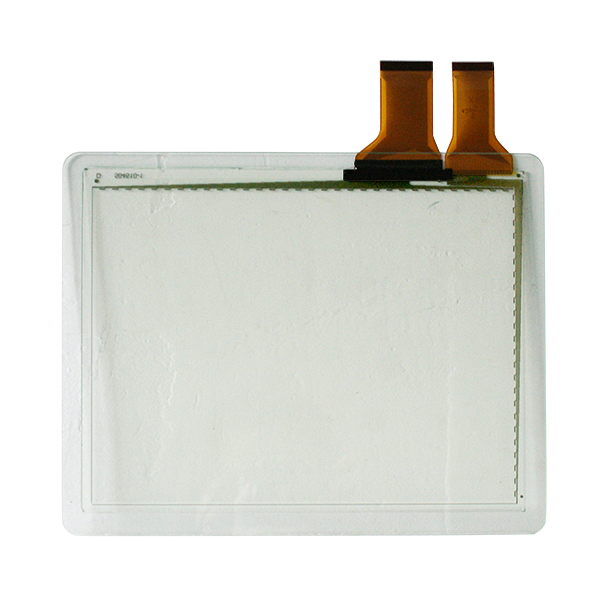

10.1＂ Capacitive touch Panel
 |
system parameter
|
|
Product model
|
TK-516410
|
|
Dimensions
|
10.1"
|
|
Structural
|
GG
|
|
Drive form
|
COF/FT5406
|
|
Rati
|
16:9
|
|
Lens OD
|
257.1mm*159.66mm*0.7mm
|
|
Lens VA
|
222.92mm*125.48mm
|
|
Sensor OD
|
248.9mm*151.46mm*0.55mm
|
|
Thickness
|
1.45mm
|
|
Surface hardness
|
6H
|
|
Transparency
|
>90%
|
|
Operating temperature
|
-30 ℃ ～ +75 ℃
|
|
Storage temperature
|
-40 ℃ ～ +85 ℃
|
|
Relative Humidity
|
90% at 60℃
|
|
Linearity
|
+/-1mm
|
|
Touch life
|
>300,000,000 times
|
|
Max. Resolution
|
4096×4096
|
|
Max. Support Points
|
Max,10 points
|
|
Connector Type
|
I2C
|
|
Supply Voltage
|
3.3VDC
|
|
Power Consumption
|
<10mA
|
|
Response Time
|
<10ms
|
|
Min. Report Rate
|
100Hz
|
|
ESD.Air discharge
|
8KV
|
|
ESD.Contact discharge
|
4KV
|
|
Operating system
|
Android
|
|
Adapter ripple
|
Vpp<50mv
|
|
Max.Cover Thickness(PT)
|
6mm（1-2 PT）
|
|
