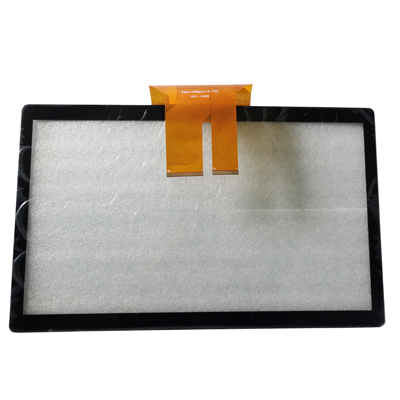

27" Capacitive touch Panel


system parameter

Product model

TK-503627

Dimensions

27"

Structural

GG

Drive form

COB

Rati

16:9

Lens OD

658mm*416mm*2.0mm

Lens VA

598mm*336mm

Sensor OD

641mm*381mm*1.1mm

Thickness

3.3mm

Surface hardness

6H

Transparency

>90%

Operating temperature

-30 ℃ ~ +75 ℃

Storage temperature

-40 ℃ ~ +85 ℃

Relative Humidity

90% at 60℃

Linearity

+/-1mm

Touch life

>300,000,000 times

Max. Resolution

4096×4096

Max. Support Points

Max,10 points

Connector Type

I2C

Supply Voltage

3.3VDC

Power Consumption

<10mA

Response Time

<10ms

Min. Report Rate

100Hz

ESD.Air discharge

8KV

ESD.Contact discharge

4KV

Operating system

Windows7、Windows8、Windows XP……

Adapter ripple

Vpp<50mv

Max.Cover Thickness(PT)

6mm(1-2 PT)
