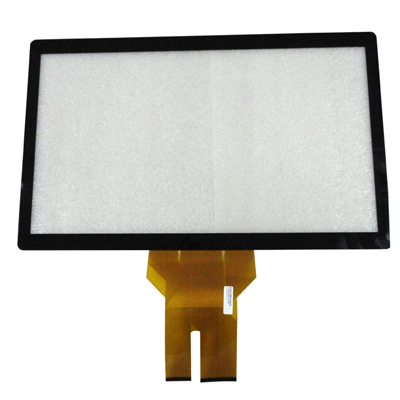

15.6＂ Capacitive touch Panel
 |
system parameter
|
|
Product model
|
TK-501916
|
|
Dimensions
|
15.6"
|
|
Structural
|
GG
|
|
Drive form
|
COB
|
|
Rati
|
4:3
|
|
Lens OD
|
346.08mm*270.02mm*1.1mm
|
|
Lens VA
|
305mm*229.01mm
|
|
Sensor OD
|
402.32mm*330.06mm*1.1mm
|
|
Thickness
|
2.4mm
|
|
Surface hardness
|
6H
|
|
Transparency
|
>90%
|
|
Operating temperature
|
-30 ℃ ～ +75 ℃
|
|
Storage temperature
|
-40 ℃ ～ +85 ℃
|
|
Relative Humidity
|
90% at 60℃
|
|
Linearity
|
+/-1mm
|
|
Touch life
|
>300,000,000 times
|
|
Max. Resolution
|
4096×4096
|
|
Max. Support Points
|
Max,10 points
|
|
Connector Type
|
I2C
|
|
Supply Voltage
|
3.3VDC
|
|
Power Consumption
|
<10mA
|
|
Response Time
|
<10ms
|
|
Min. Report Rate
|
100Hz
|
|
ESD.Air discharge
|
8KV
|
|
ESD.Contact discharge
|
4KV
|
|
Operating system
|
Windows7、Windows8、Windows XP……
|
|
Adapter ripple
|
Vpp<50mv
|
|
Max.Cover Thickness(PT)
|
6mm（1-2 PT）
|
|
